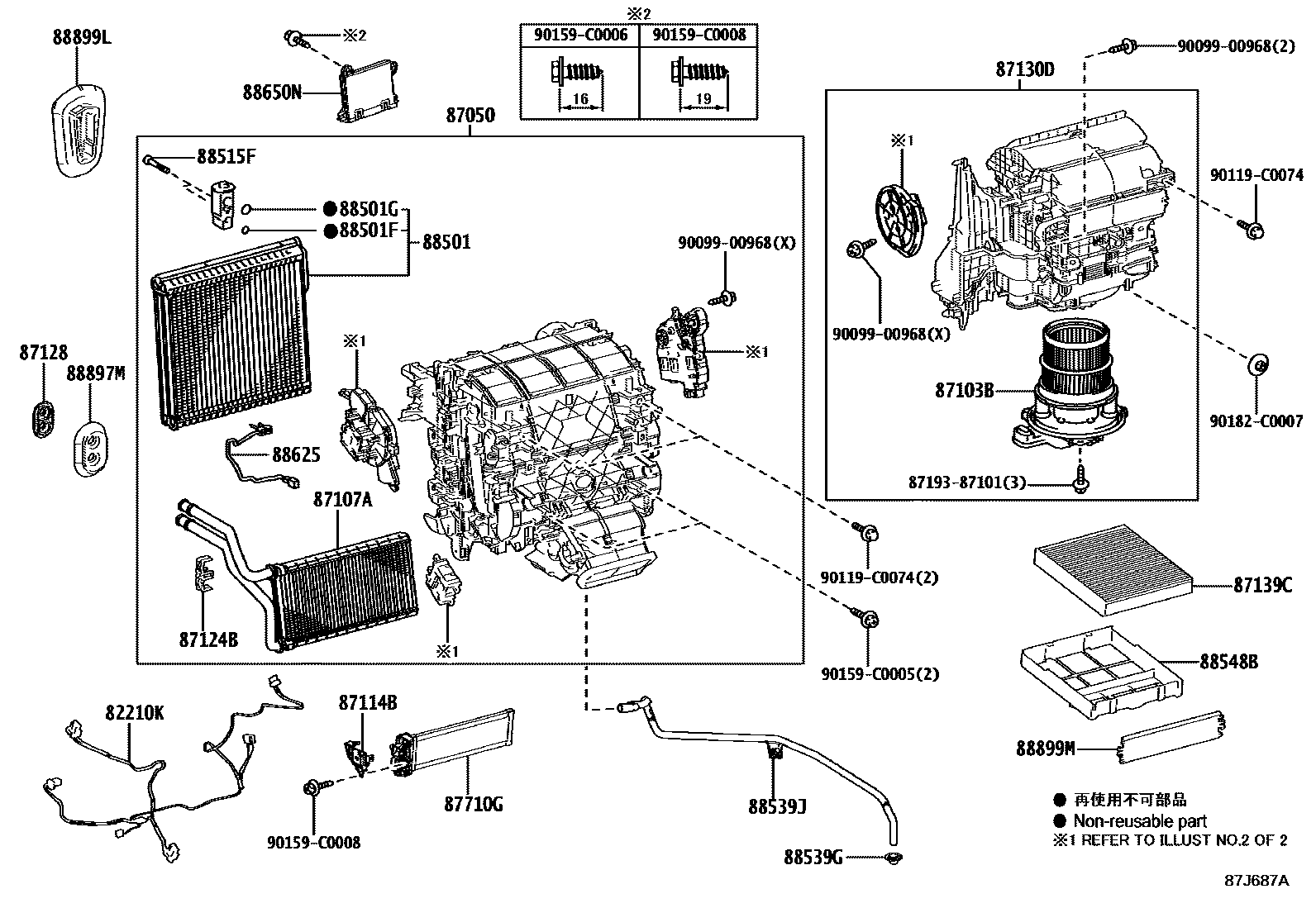

Toyota RAV4 PHEV — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0R060iAXAP5#202104-202304

main82212-0R060iAXAP5#202304

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0R210iAXAP5#202104-202304

main87050-0R210iAXAP5#202304

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0R040iAXAP5#202104-202304

main87103-0R040iAXAP5#202304

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07040iAXAP5#202104-202304

main87107-07040iAXAP5#202304

87114BCOVER, HEATER

main87114-F4100iAXAP5#202104-202304

main87114-F4100iAXAP5#202304

87124BCLAMP, HEATER

main87124-F4060iAXAP5#202104-202304

main87124-F4060iAXAP5#202304

87128GROMMET, HEATER

main87128-28010iAXAP5#¥400202104-202304

main87128-28010iAXAP5#¥400202304

87130DBLOWER ASSY

main87130-0R060iAXAP5#202104-202304

main87130-0R060iAXAP5#202304

87139CFILTER, CLEAN AIR

main87139-02260iAXAP5#202104-202304

MICRO DUST FILTER,OE PART

sub87139-02290

main87139-02260iAXAP5#202304-202307

MICRO DUST FILTER,OE PART

sub87139-02290

main87139-02290iAXAP5#202308

MICRO DUST FILTER,OE PART

main87139-58010iAXAP5#¥4,000202104-202304

DEODORANT FILTER

main87139-58010iAXAP5#¥4,000202304

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-0R010iAXAP5#202104-202304

main87710-0R010iAXAP5#202304

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-07090iAXAP5#202104-202304

main88501-07090iAXAP5#202304

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAXAP5#¥0202104-202304

ID=10.8,OD=15.6

main90099-14120iAXAP5#¥0202304

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAXAP5#202104-202304

ID=13.4,OD=18.2

main90099-14121iAXAP5#202304

ID=13.4,OD=18.2

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAXAP5#¥120202104-202304

main90099-04542iAXAP5#¥120202304

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iAXAP5#202104-202304

main90480-26030iAXAP5#202304

88539JHOSE, DRAIN COOLER

main88539-0R080iAXAP5#202104-202304

main88539-0R080iAXAP5#202304

88548BCASE, AIR FILTER

main88899-02260iAXAP5#202104-202304

sub88899-02261

main88899-02260iAXAP5#202304-202307

sub88899-02261

main88899-02261iAXAP5#202308

88625THERMISTOR, COOLER, NO.1

main88620-07020iAXAP5#202104-202304

main88620-07020iAXAP5#202304

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0R270iAXAP5#202104-202201

sub88650-0R271

main88650-0R271iAXAP5#202202-202304

main88650-0R370iAXAP5#202304-202307

sub88650-0R371

main88650-0R371iAXAP5#202307-202409

main88650-0R550iAXAP5#202409

88897MGROMMET (FOR HEATER PIPE)

main87128-07010iAXAP5#202104-202304

main87128-07010iAXAP5#202304

88899LPARTS, COOLING UNIT

main88899-0R020iAXAP5#202104-202304

main88899-0R020iAXAP5#202304

88899MPLATE, COVER(FOR AIR FILTER)

main88899-F4290iAXAP5#202104-202304

main88899-F4290iAXAP5#202304

8719387101

main87193-87101¥0

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90159C0008

main90159-C0008

90182C0007

main90182-C0007

29 parts on this diagram · 2 diagrams in section
