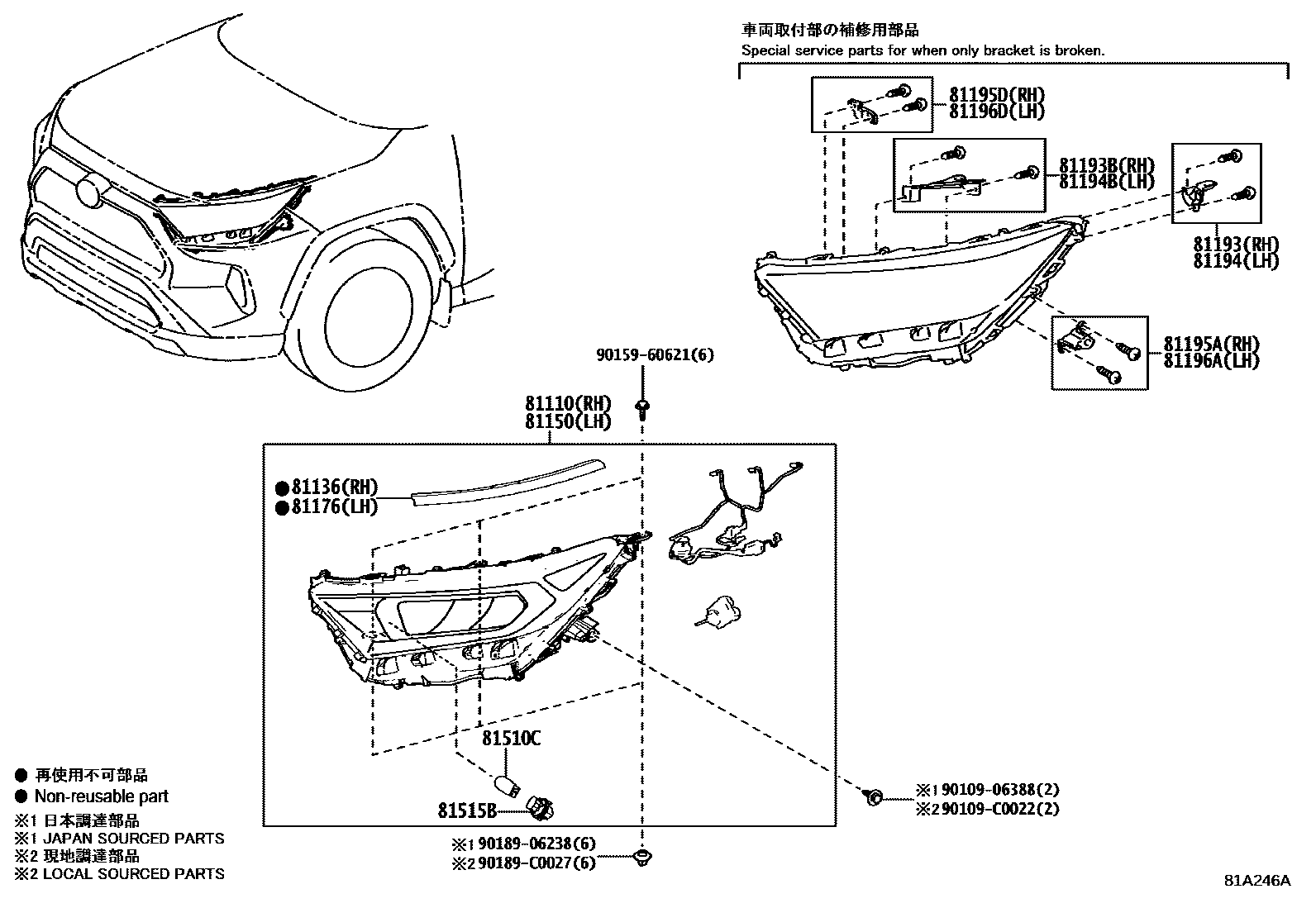

Toyota RAV4 PHEV — HEADLAMP

0001 1MULTI REFLECTOR TYPE 0002 1PROJECTOR TYPE 0003 1PROJECTOR TYPE

81110HEADLAMP ASSY, RH

main81110-0R240iAXAP52202104-202109

sub81110-0R241

main81110-0R241iAXAP52202110-202204

sub81110-0R242

main81110-0R242iAXAP5#..M,X202205-202304

main81110-0R242iAXAP5#..M,X202304

main81110-0R250iAXAP54202104-202201

sub81110-0R251

main81110-0R251iAXAP54..G202202-202302

main81110-0R252iAXAP54..G202303-202304

main81110-0R380iAXAP54..G202304

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-0R190iAXAP54..G202304

main81117-0R190iAXAP5#202104-202304

81150HEADLAMP ASSY, LH

main81150-0R240iAXAP52202104-202109

sub81150-0R241

main81150-0R241iAXAP52202110-202204

sub81150-0R242

main81150-0R242iAXAP5#..M,X202304

main81150-0R242iAXAP5#..M,X202205-202304

main81150-0R250iAXAP54202104-202201

sub81150-0R251

main81150-0R251iAXAP54202202-202207

main81150-0R252iAXAP54..G202207-202302

main81150-0R253iAXAP54..G202303-202304

main81150-0R380iAXAP54..G202304

81176PROTECTOR, HEADLAMP, NO.1 LH

main81157-0R190iAXAP5#202104-202304

main81157-0R190iAXAP5#..M,X202304

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050iAXAP5#¥650202104-202304

main81193-42050iAXAP5#¥650202304

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060iAXAP5#¥1,030202104-202304

main81193-42060iAXAP5#¥1,030202304

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050iAXAP5#¥650202104-202304

main81194-42050iAXAP5#¥650202304

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060iAXAP5#¥1,030202104-202304

main81194-42060iAXAP5#¥1,030202304

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050iAXAP5#¥1,030202104-202304

main81195-42050iAXAP5#¥1,030202304

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060iAXAP5#¥660202104-202304

main81195-42060iAXAP5#¥660202304

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050iAXAP5#¥1,030202104-202304

main81196-42050iAXAP5#¥1,030202304

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060iAXAP5#¥660202104-202304

main81196-42060iAXAP5#¥660202304

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iAXAP5#¥300202104-202304

12V 21W,AMBER

main90981-15011iAXAP5#..M,X¥300202304

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iAXAP5#¥610202104-202304

main90075-60028iAXAP5#..M,X¥610202304

9010906388

main90109-06388¥70

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

90189C0027

main90189-C0027

19 parts on this diagram · 3 diagrams in section
