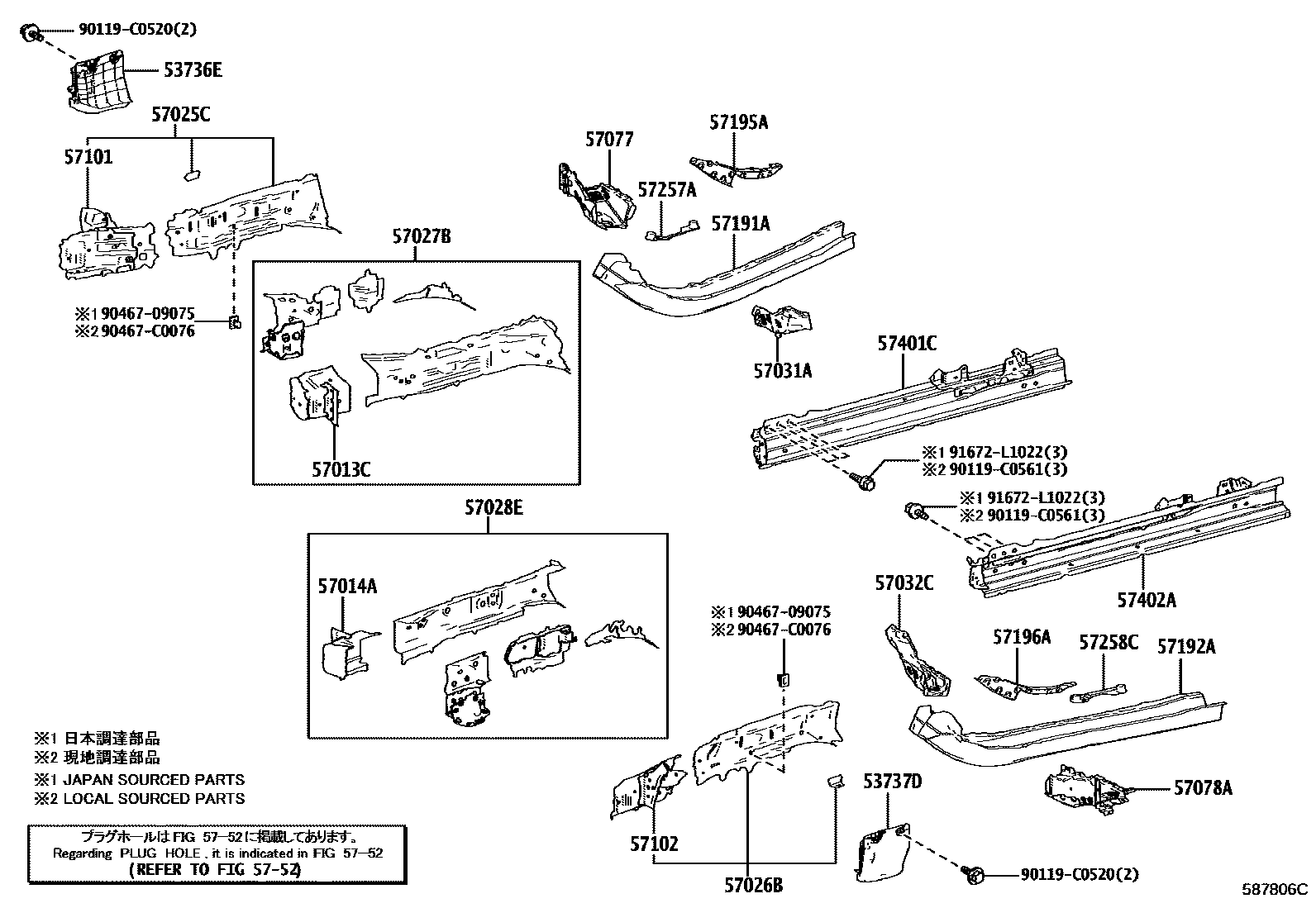

Toyota RAV4 PHEV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53736ESEAL, FRONT FENDER APRON, RH
53737DSEAL, FRONT FENDER APRON, LH
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028EBRACKET SUB-ASSY, CONVERTER SUPPORT
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
5752
90119C0520
main90119-C0520
90119C0561
main90119-C0561
9046709075
90467C0076
main90467-C0076
91672L1022
28 parts on this diagram · 2 diagrams in section
