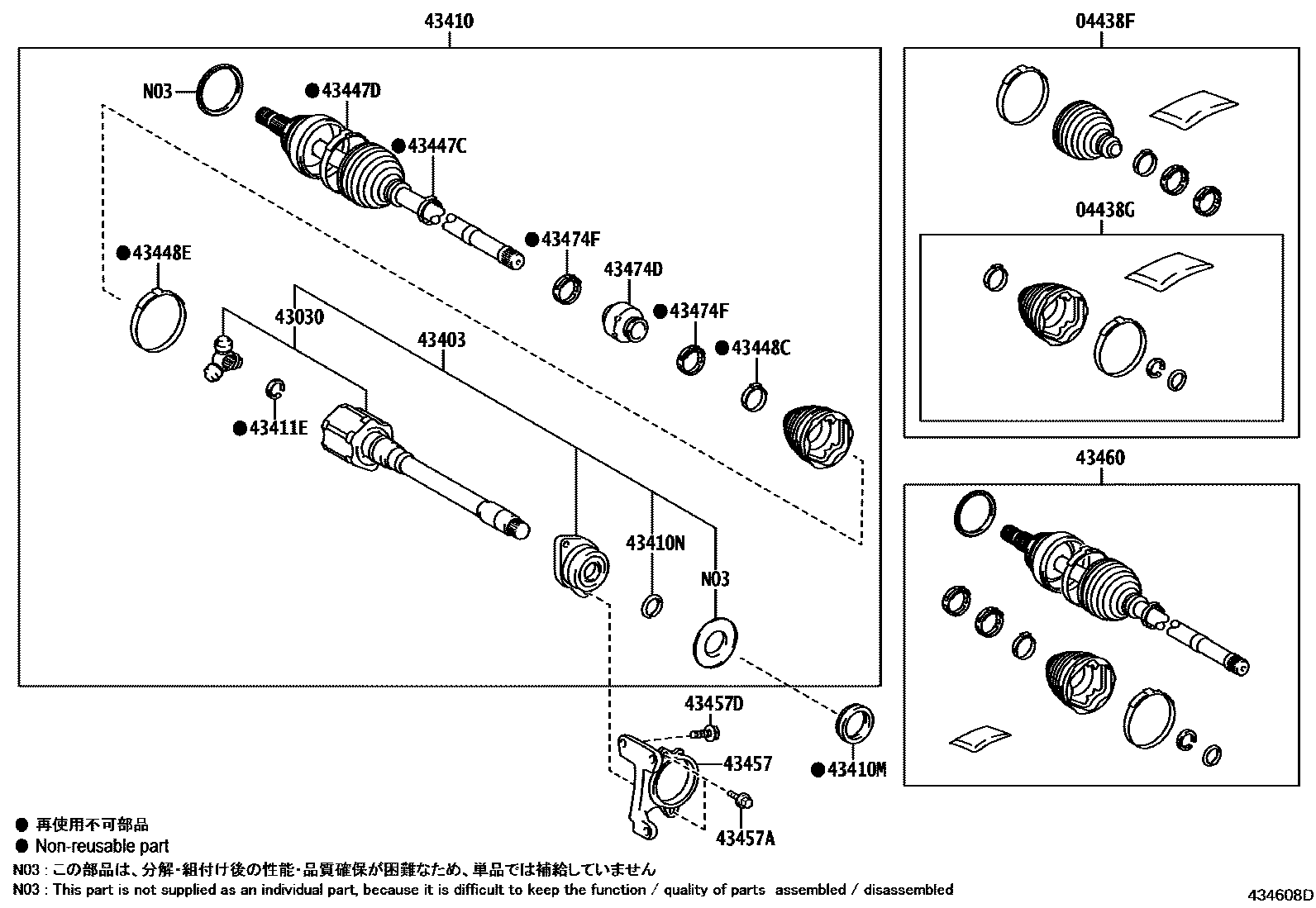

Toyota RAV4 PHEV — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0R200iAXAP5#202104-202304

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0R120iAXAP5#202104-202304

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0R200iAXAP5#202104-202304

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-0R030iAXAP5#202104-202304

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0R260iAXAP5#202104-202304

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-C0057iAXAP5#202104-202304

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0R200iAXAP5#202104-202304

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-F4150iAXAP5#¥50202104-202304

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-F4260iAXAP5#¥240202104-202304

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-F4270iAXAP5#¥440202104-202304

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4240iAXAP5#¥240202104-202304

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4250iAXAP5#¥430202104-202304

43457BRACKET, DRIVE SHAFT BEARING

main43457-07020iAXAP5#202104-202304

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-C0124iAXAP5#202104-202304

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-C0014iAXAP5#202104-202304

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-8Z857iAXAP5#202104-202304

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0R070iAXAP5#202104-202304

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0R250iAXAP5#202104-202304

18 parts on this diagram · 2 diagrams in section
