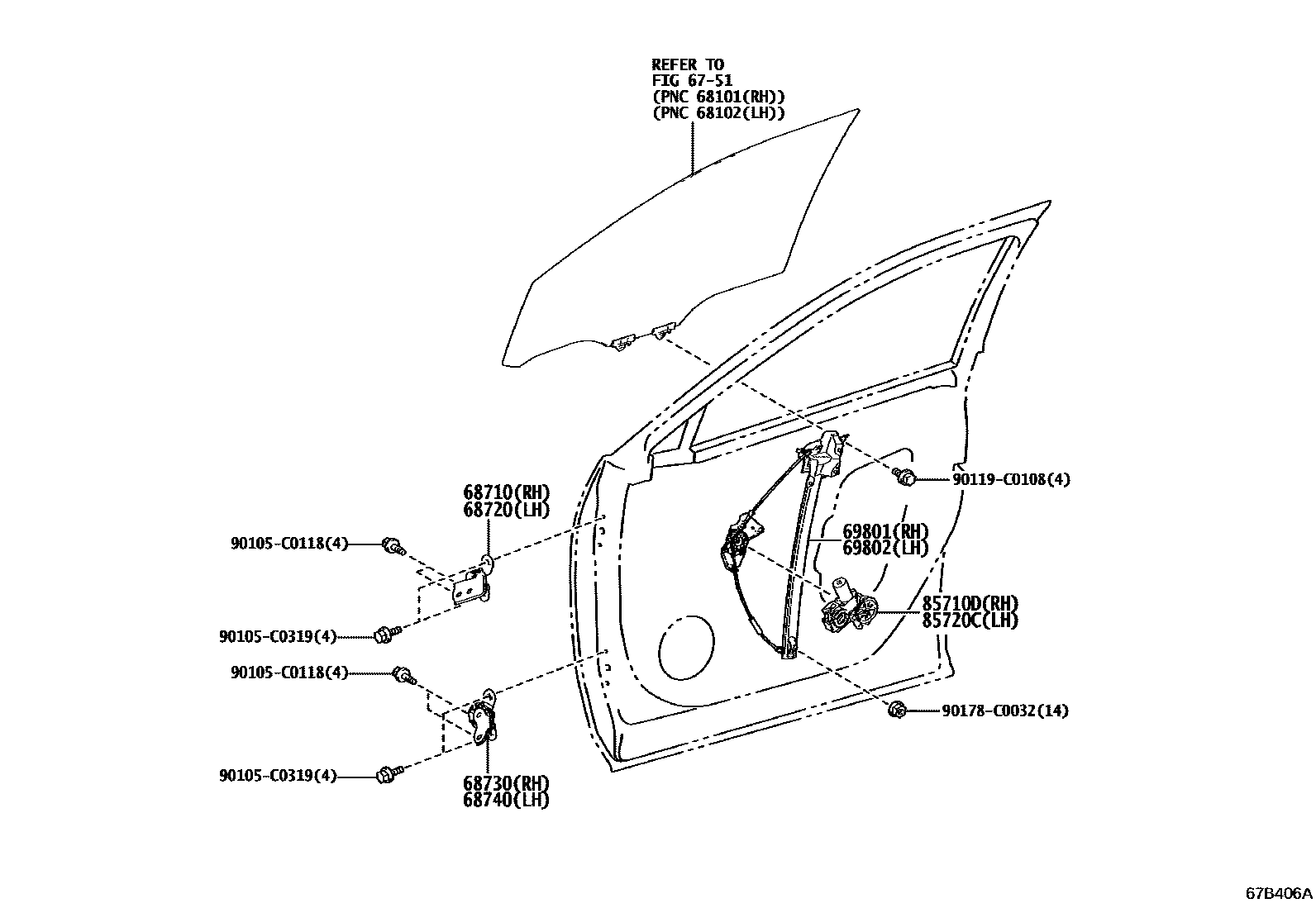

Toyota RAV4 PHEV — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iAXAP5#202104-202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iAXAP5#202104-202304

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iAXAP5#202104-202304

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iAXAP5#202104-202304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0R110iAXAP5#202104-202406

sub69801-0R111

main69801-0R111iAXAP5#202407

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0R110iAXAP5#202104-202406

sub69802-0R111

main69802-0R111iAXAP5#202407

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R030iAXAP5#202104-202304

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R090iAXAP5#202104-202304

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90119C0108

main90119-C0108

90178C0032

main90178-C0032

13 parts on this diagram · 1 diagram in section
