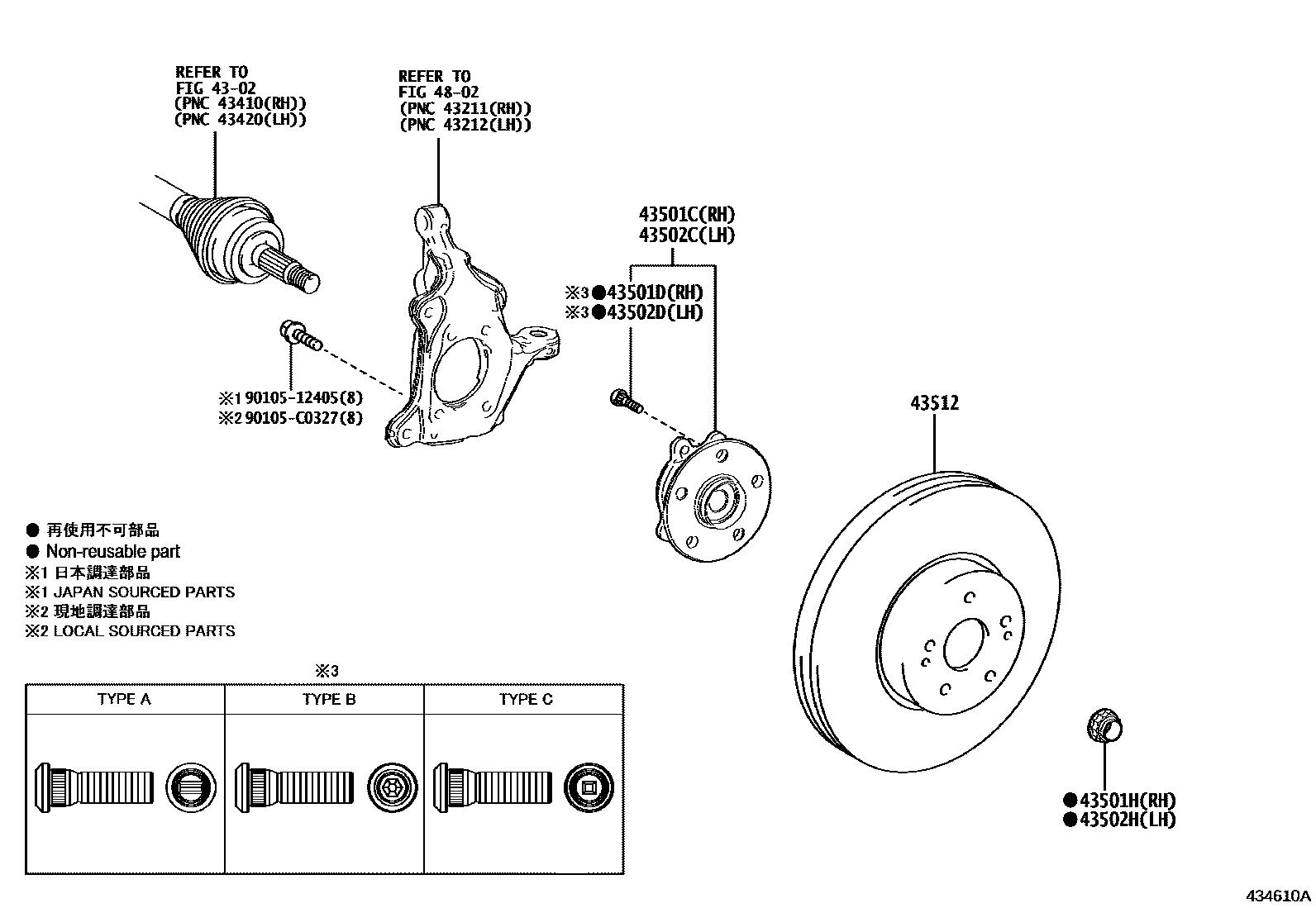

Toyota RAV4 PHEV — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R080iAXAP5#202104-202304

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXAP5#¥240202104-202304

TYPE A:REFER ILLUST.

main90942-02081iAXAP5#¥240202104-202304

TYPE B:REFER ILLUST.

main90942-02082iAXAP5#¥240202104-202304

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXAP5#¥220202104-202304

(J)

main90177-C0004iAXAP5#202104-202304

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R080iAXAP5#202104-202304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXAP5#¥240202104-202304

TYPE A:REFER ILLUST.

main90942-02081iAXAP5#¥240202104-202304

TYPE B:REFER ILLUST.

main90942-02082iAXAP5#¥240202104-202304

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXAP5#¥220202104-202304

(J)

main90177-C0004iAXAP5#202104-202304

(L)

43512DISC, FRONT

main43512-0R040iAXAP5#202104-202304

4802

9010512405

main90105-12405¥190

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section
