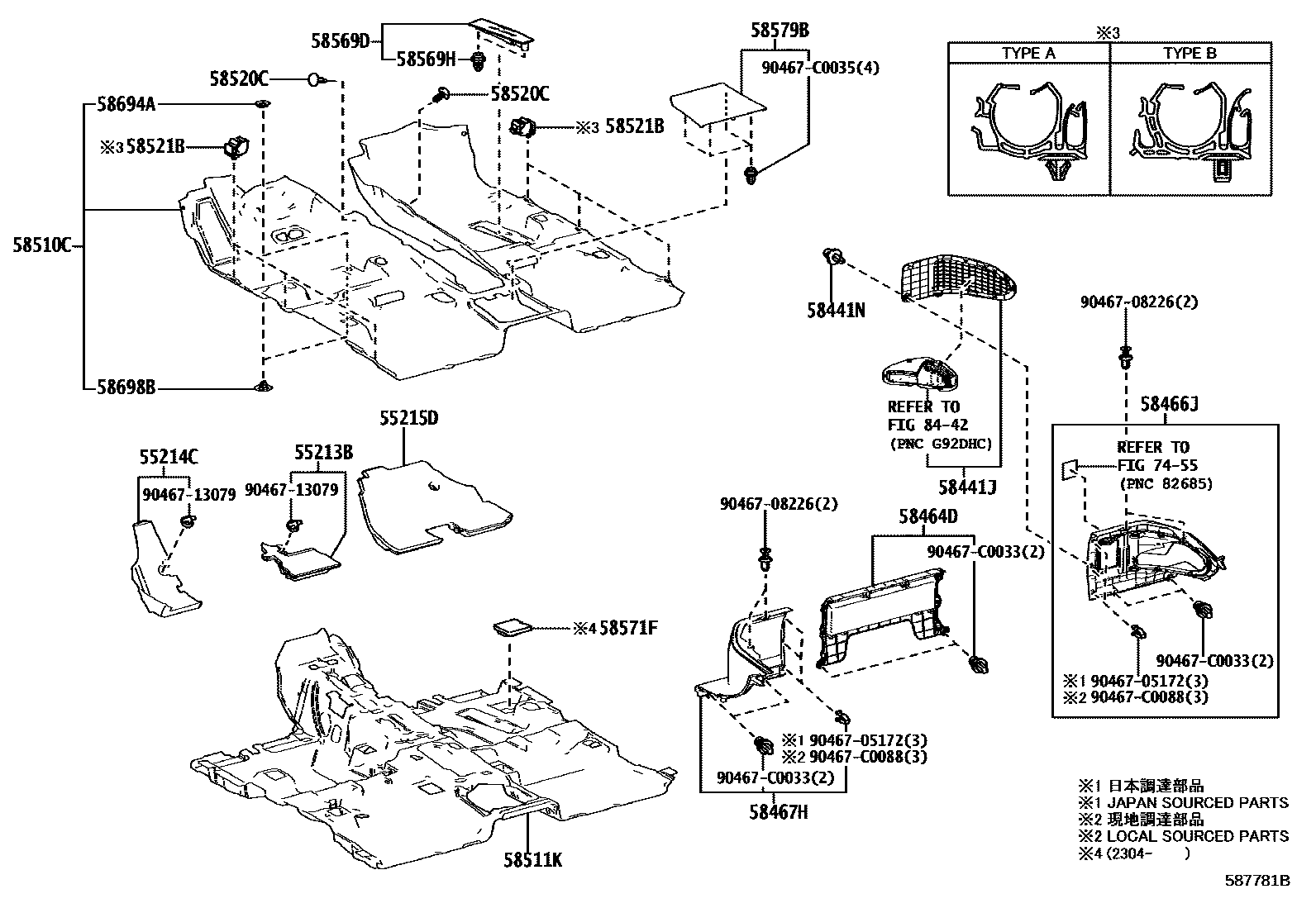

Toyota RAV4 PHEV — FLOOR MAT & SILENCER PAD

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0R050iAXAP5#202104-202304

main55213-0R050iAXAP5#202304

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R090iAXAP5#202104-202304

main55214-0R090iAXAP5#202304

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0R050iAXAP5#202104-202304

main55215-0R050iAXAP5#202304

58441JCOVER, BATTERY SERVICE HOLE

main58441-0R050-C0iAXAP5#202104-202304

BLACK,TRIM2#

main58441-0R050-C0iAXAP5#202304

BLACK,TRIM2#

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-06165-C3iAXAP5#202104-202304

BLACK,TRIM2#

sub90467-06165¥160

main90467-06165-C3iAXAP5#202304

BLACK,TRIM2#

sub90467-06165¥160

58464DBOARD, BATTERY SERVICE COVER

main58464-0R050-C0iAXAP5#202104-202304

BLACK,TRIM2#

main58464-0R050-C0iAXAP5#202304

BLACK,TRIM2#

58466JBOARD, BATTERY SERVICE COVER, NO.2

main58466-0R020-C0iAXAP5#202104-202109

BLACK,TRIM2#

sub58466-0R021

main58466-0R021-C0iAXAP5#202110-202304

BLACK,TRIM2#

main58466-0R021-C0iAXAP5#202304

BLACK,TRIM2#

58467HBOARD, BATTERY SERVICE COVER, NO.3

main58467-0R050-C0iAXAP5#202104-202304

BLACK,TRIM2#

main58467-0R050-C0iAXAP5#202304

BLACK,TRIM2#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0R110-C0iAXAP5#202104-202304

BLACK,TRIM2#

main58510-0R110-C0iAXAP5#202304

BLACK,TRIM2#

58511KMAT, FLOOR, NO.1

main58511-0R080iAXAP5#202104-202304

main58511-0R081iAXAP5#202304

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-C0016-C1iAXAP5#202104-202304

BLACK,TRIM2#

main90467-C0016-C1iAXAP5#202304

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-33060iAXAP5#¥260202304

TYPE A

main58521-33060iAXAP5#¥260202104-202304

TYPE A

main58521-33070iAXAP5#¥300202104-202304

TYPE B

main58521-33070iAXAP5#¥300202304

TYPE B

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0R030-C0iAXAP5#202104-202304

BLACK,TRIM2#

main58569-0R030-C0iAXAP5#202304

BLACK,TRIM2#

58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1

main62217-13010iAXAP5#¥80202104-202304

main62217-13010iAXAP5#¥80202304

58571FPAD, FRONT FLOOR, FRONT

main58571-0R080iAXAP5#202304

58579BPAD, REAR FLOOR

main58579-0R010-C1iAXAP5#202104-202304

BLACK,TRIM2#

main58579-0R010-C1iAXAP5#202304

BLACK,TRIM2#

58694APLATE, MAT SET, UPPER

main58694-33010iAXAP5#¥200202104-202304

main58694-33010iAXAP5#¥200202304

58698BPLATE, MAT SET, LOWER

main58698-33010iAXAP5#¥280202104-202304

main58698-33010iAXAP5#¥280202304

7455

8442

9046705172

main90467-05172¥60

9046708226

main90467-08226¥100

9046713079

main90467-13079¥120

90467C0033

main90467-C0033

90467C0035

main90467-C0035¥110

90467C0088

main90467-C0088

26 parts on this diagram · 2 diagrams in section
