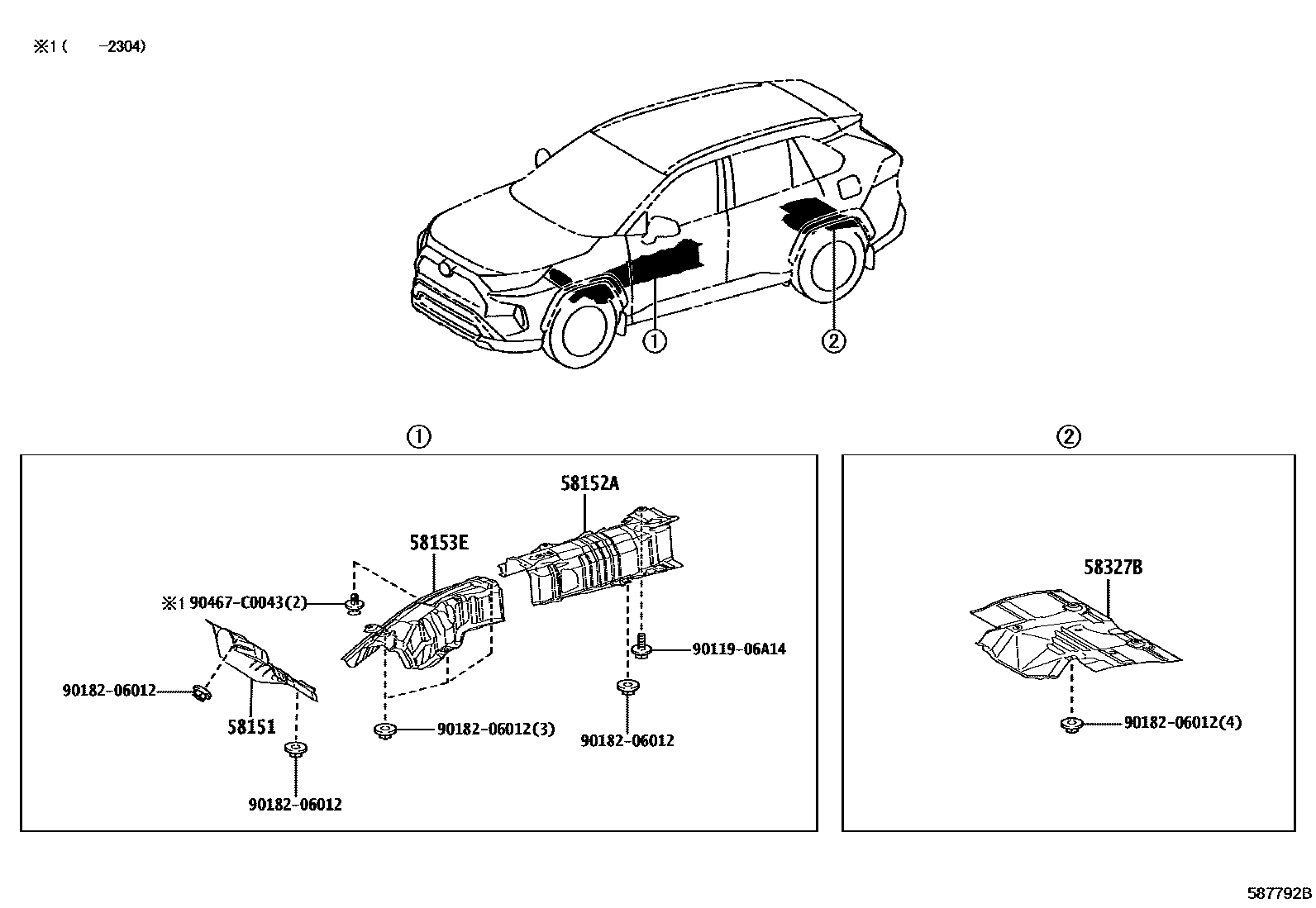

Toyota RAV4 PHEV — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0R060iAXAP5#202104-202304

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-0R120iAXAP5#202104-202304

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0R050iAXAP5#202104-202201

main58153-0R051iAXAP5#202201-202304

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0R070iAXAP5#202104-202304

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

90467C0043

main90467-C0043

7 parts on this diagram · 1 diagram in section
