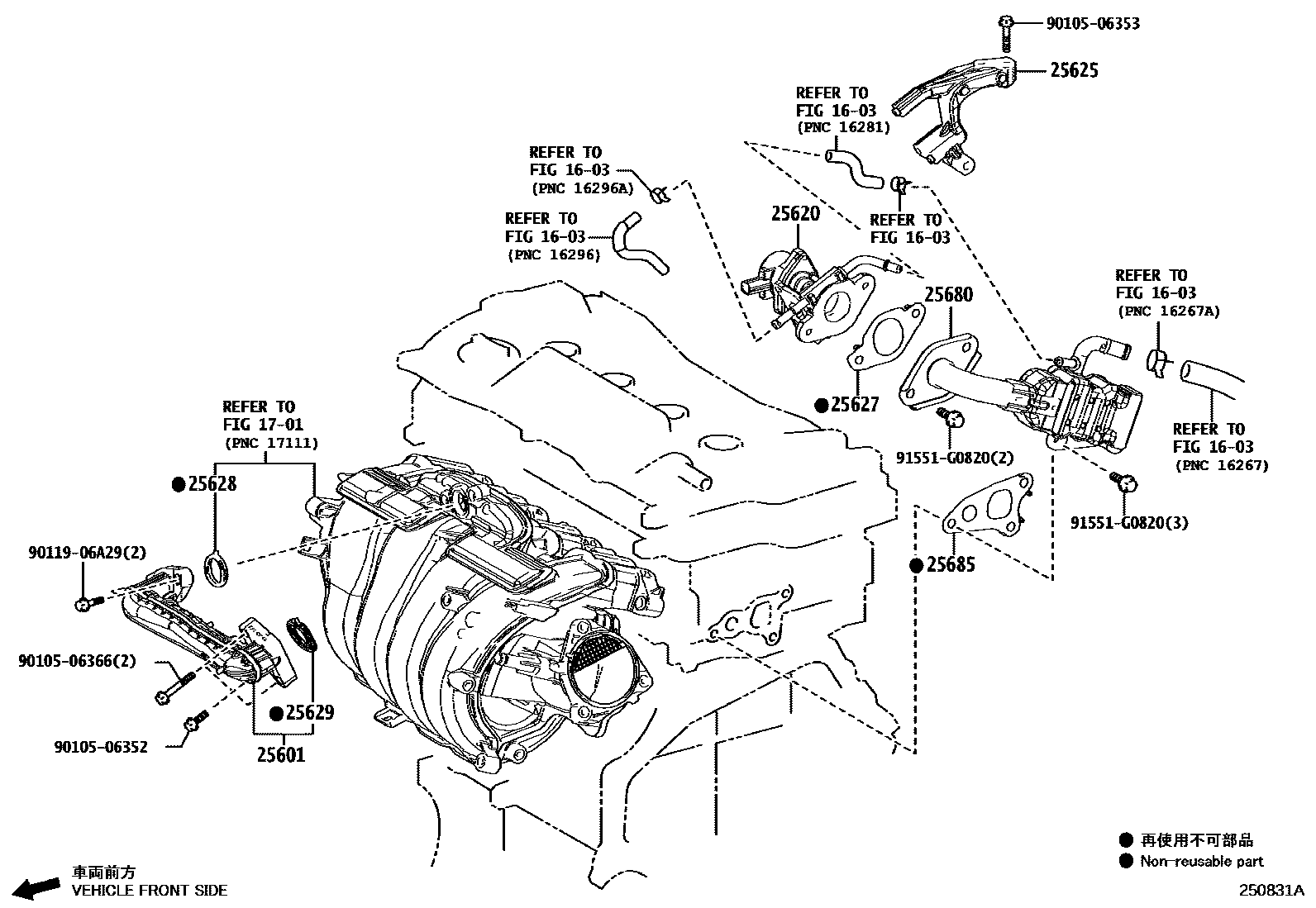

Toyota RAV4 PHEV — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011iA25FFXS..AXAP5#¥3,450202104-202304

main25601-F0030iA25FFXS..AXAP5#202304

25620VALVE ASSY, EGR

main25620-25050iA25FFXS..AXAP5#¥18,400202104-202304

main25620-F2030iA25FFXS..AXAP5#202304

25625BRACKET, EGR VALVE

main25625-25030iA25FFXS..AXAP5#¥2,970202104-202304

25627GASKET, EGR VALVE

main25627-25010iA25FFXS..AXAP5#¥270202104-202304

main25627-F2020iA25FFXS..AXAP5#202304

25628GASKET, EGR INLET

main25628-25010iA25FFXS..AXAP5#¥340202104-202304

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25FFXS..AXAP5#¥340202104-202304

25680COOLER ASSY, EGR

main25680-25040iA25FFXS..AXAP5#202104-202304

main25680-F0070iA25FFXS..AXAP5#202304

25685GASKET, EGR COOLER, NO.1

main25685-F2010iA25FFXS..AXAP5#202104-202304

9010506352

main90105-06352¥60

9010506353

main90105-06353¥60

9010506366

main90105-06366¥80

9011906A29

main90119-06A29¥60

91551G0820

main91551-G0820¥80

15 parts on this diagram · 2 diagrams in section
