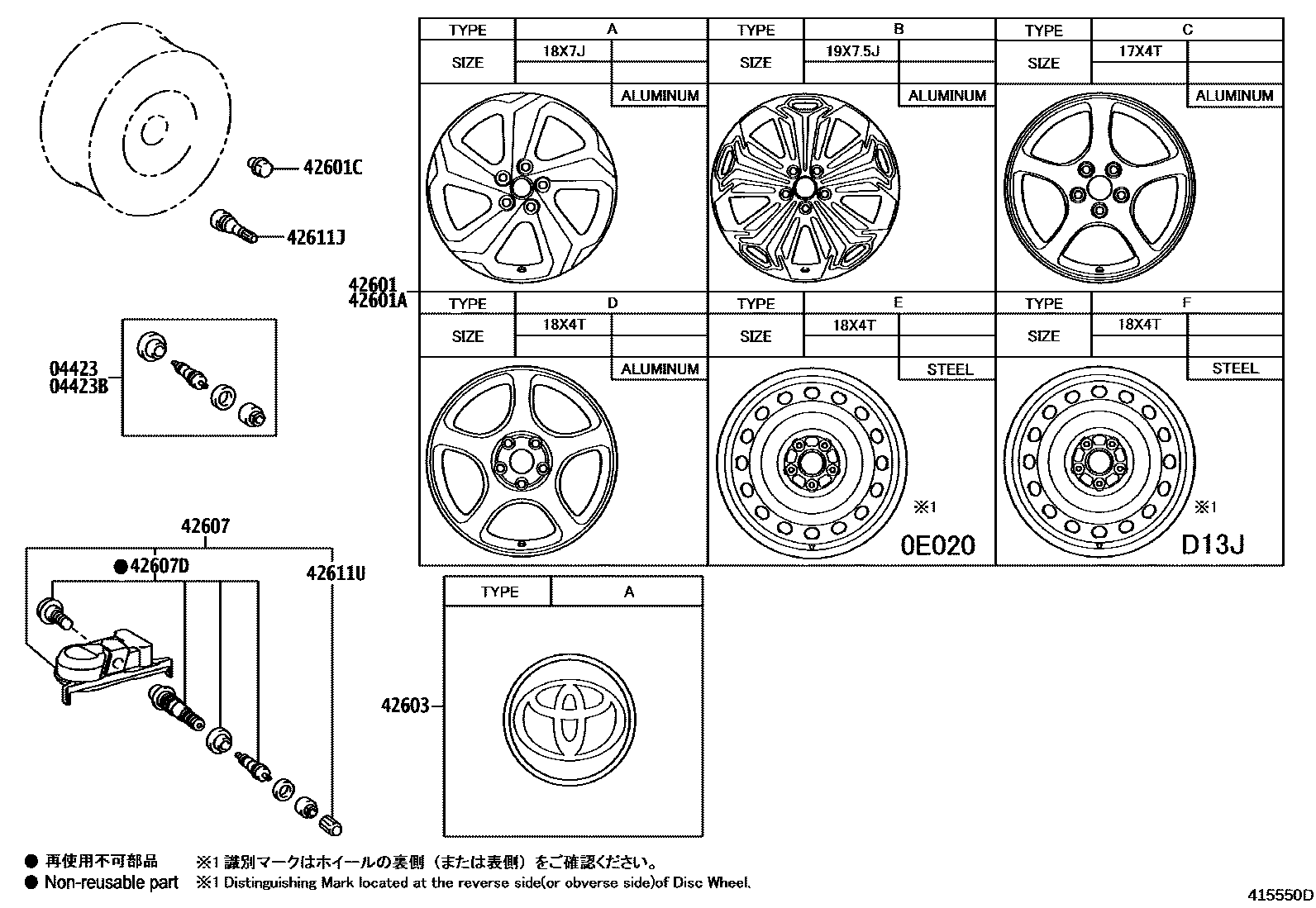

Toyota RAV4 PHEV — DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iAXAP5#202104-202304

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-0N010iAXAP5#..M,X202304

42601WHEEL, DISC

main42611-0R400iAXAP5#..M,X202104-202304

18X7J,TYPE A:REFER ILLUST.

main42611-0R410iAXAP54..G202104-202304

19X7.5J,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0E010iAXAP5#202409

18X4T,TYPE F:REFER ILLUST.

main4261B-0E020iAXAP5#202409

18X4T,TYPE E:REFER ILLUST.

main4261B-0R080iAXAP5#..M,X202104-202409

17X4T,TYPE C:REFER ILLUST.

main4261B-0R090iAXAP54..G202104-202409

18X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iAXAP5#202104-202304

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320iAXAP5#202104-202304

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iAXAP5#202104-202304

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iAXAP5#202104-202304

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXAP5#¥390202104-202304

(J)

main90942-C5004iAXAP5#202104-202304

(L)

42611UCAP, TIRE VALVE

main90942-C5001iAXAP5#202104-202304

10 parts on this diagram · 2 diagrams in section
