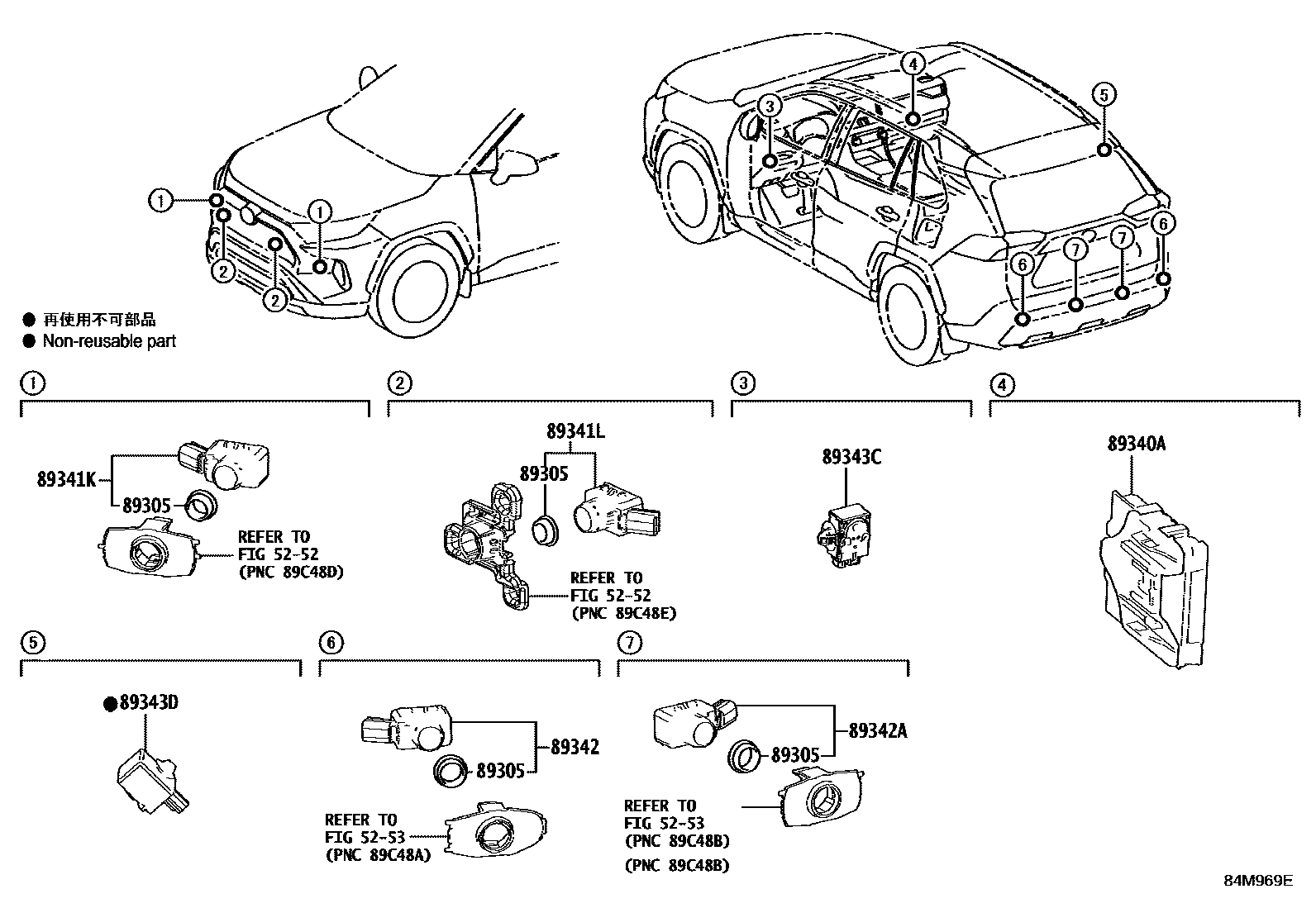

Toyota RAV4 PHEV — CLEARANCE & BACK SONAR
5252
5253
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
sub89341-0R100
PLATINUM WHITE PEARL MC.,089 ,2PU
PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6 ,2RZ
ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8X8
EMOTIONAL RED 2,2SZ ,3U5
EMOTIONAL RED 2,2SZ ,3U5
AVANT-GARDE BRONZE ME.,2SA ,4V8
AVANT-GARDE BRONZE ME.,2SA ,4V8
URBAN KHAKI,6X3
URBAN KHAKI,6X3
DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
89341LSENSOR, ULTRASONIC, FRONT CENTER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
sub89341-0R100
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
sub89341-0R100
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
sub89341-0R100
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
10 parts on this diagram · 1 diagram in section
