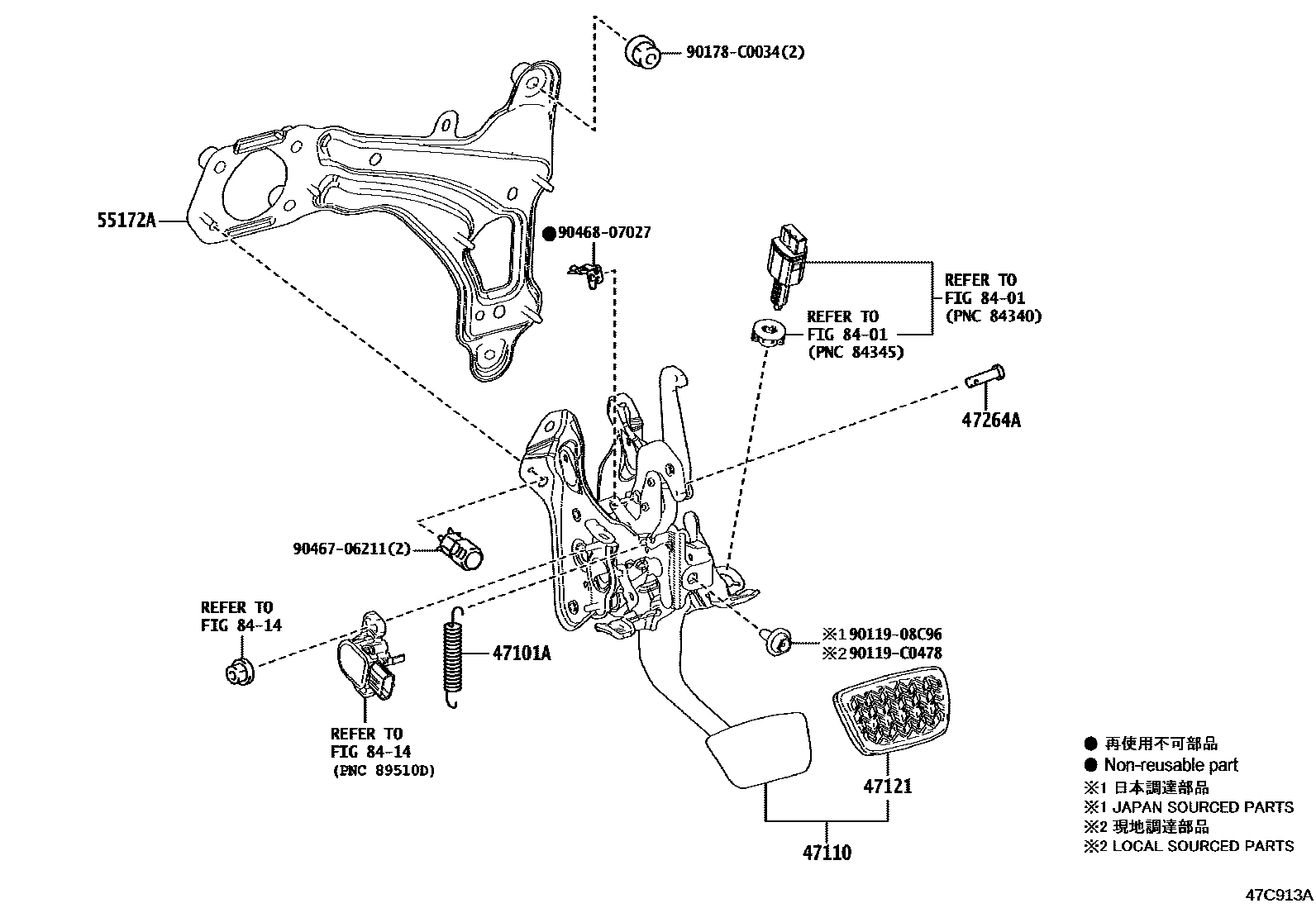

Toyota RAV4 PHEV — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAP5#¥120202104-202304

main90507-12046iAXAP5#¥120202304

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R170iAXAP5#202104-202304

main47110-0R170iAXAP5#202304

47121PAD, BRAKE PEDAL

main47121-48010iAXAP5#¥520202104-202304

main47121-48010iAXAP5#¥520202304

47264APIN(FOR PUSH ROD)

main90240-08082iAXAP5#¥120202104-202304

main90240-08082iAXAP5#¥120202304

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R020iAXAP5#202104-202304

main55172-0R020iAXAP5#202304

8401

8414

9011908C96

main90119-08C96¥80

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

12 parts on this diagram · 1 diagram in section
