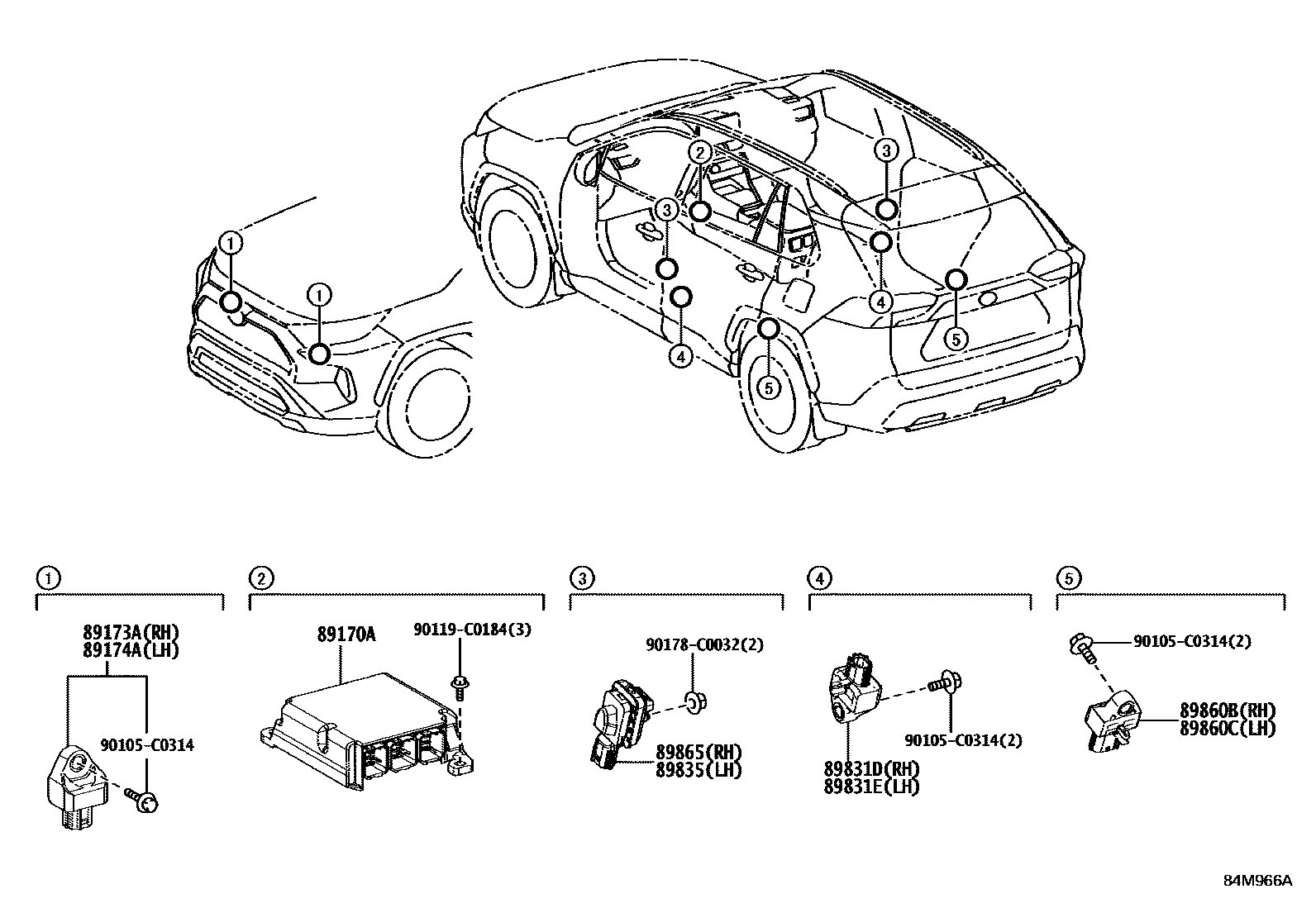

Toyota RAV4 PHEV — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0R280iAXAP5#202104-202304

*614

main89170-0R430iAXAP5#202304

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09888iAXAP5#202104-202304

89174ASENSOR, AIRBAG, FRONT LH

main89173-09888iAXAP5#202104-202304

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-0R170iAXAP5#202104-202304

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-0R170iAXAP5#202104-202304

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-0R011iAXAP5#202104-202304

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0R160iAXAP5#202104-202304

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0R160iAXAP5#202104-202304

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-0R011iAXAP5#202104-202304

90105C0314

main90105-C0314

90119C0184

main90119-C0184

90178C0032

main90178-C0032

12 parts on this diagram · 1 diagram in section
