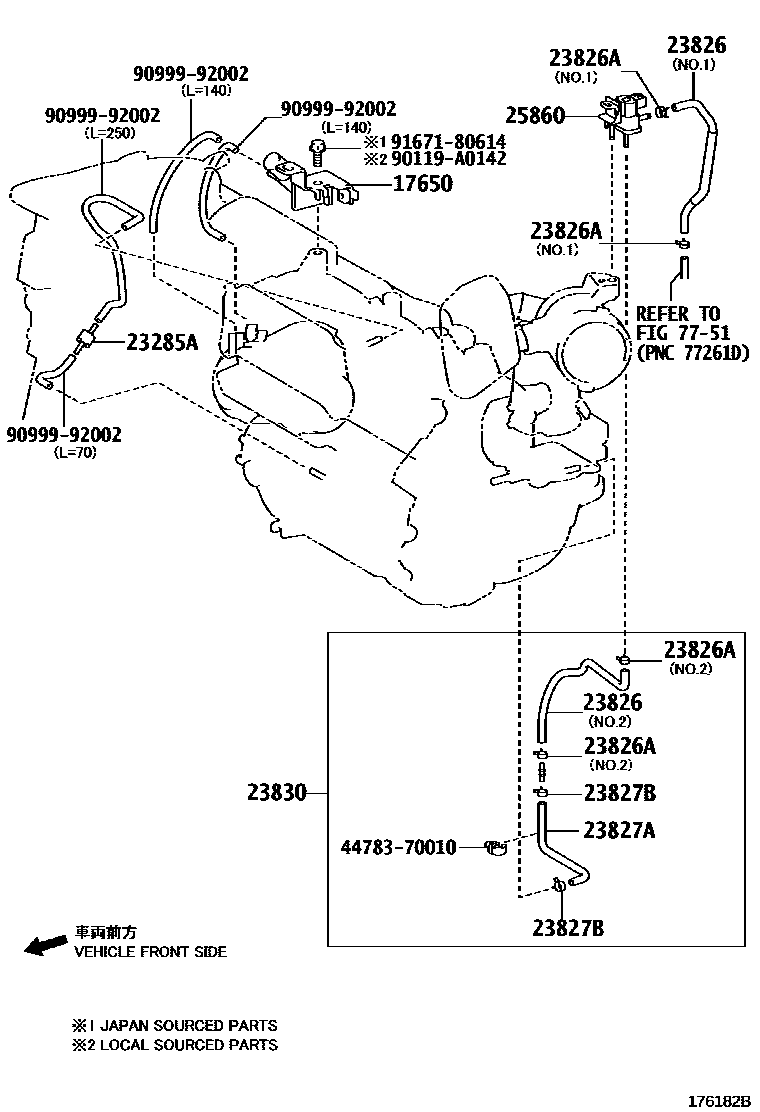

Toyota RAV4 (NAP) — VACUUM PIPING

0001 1 0002 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-0V050i2ARFE..ASA3#..NAP201108

*212

main25860-36010i2ARFE..ASA3#..NAP¥3,480200811

*107

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASA3#..NAP¥730200811

*107

main90917-10065i2ARFE..ASA3#..NAP¥730201108

*212

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P100i2GRFE..GSA3#..NAP200811

NO.2

main23826-0P140i2GRFE..GSA3#..NAP200811

NO.1

main23826-0V020i2ARFE..ASA3#..NAP200811

NO.1

main23826-0V040i2ARFE..ASA3#..NAP200811

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GSA3#..NAP¥100200811

NO.1

main96132-51300i2ARFE..ASA3#..NAP¥120200811

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0V010i2ARFE..ASA3#..NAP200811

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i2ARFE..ASA3#..NAP¥120200811

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0V010i2ARFE..ASA3#..NAP200811

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V020i2ARFE..ASA3#..NAP200811

main25860-31070i2GRFE..GSA3#..NAP¥3,840200811

7751

4478370010CLAMP, VACUUM HOSE

main44783-70010

90119A0142

main90119-A0142

9099992002

main90999-92002¥460

9167180614

main91671-80614¥60

13 parts on this diagram · 2 diagrams in section
