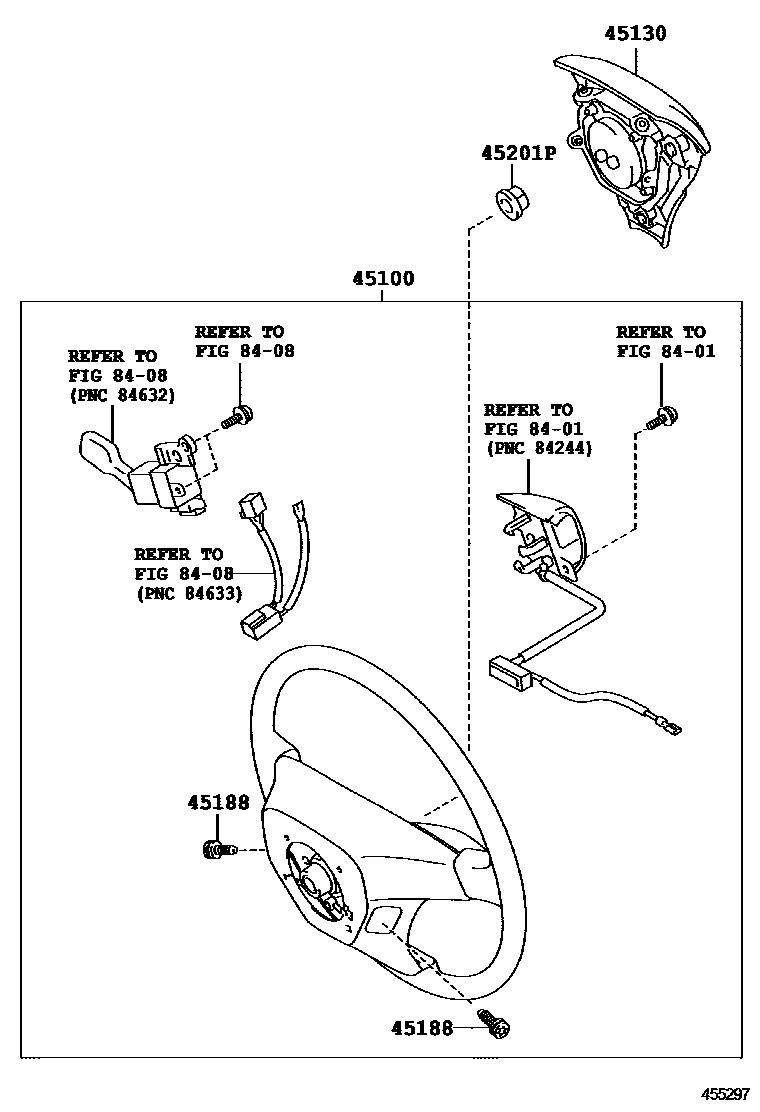

Toyota RAV4 (NAP) — STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE,W(AUDIO SWITCH)

45100WHEEL ASSY, STEERING

main45100-0R031-B0iASA3#,GSA3#..NAP..SPO200811-201201

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0R031-B0iASA3#,GSA3#..NAP..SPO200811-201201

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-0R040-B0iASA3#,GSA3#..NAP..STD201201-201301

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-0R040-B0iASA3#,GSA3#..NAP..SPO201201-201301

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0R050-B0iASA3#,GSA3#..NAP..LIMD200811-201301

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-0R020-B0iASA3#,GSA3#..NAP..SPO200811-201112

DK.GRAY,TRIM1#

main45130-0R020-B0iASA3#,GSA3#..NAP..SPO200811-201112

DK.GRAY,TRIM1#,4#

main45130-0R022-B0iASA3#,GSA3#..NAP..SPO201201-201301

DK.GRAY,TRIM1#

main45130-0R022-B0iASA3#,GSA3#..NAP..SPO201201-201301

DK.GRAY,TRIM1#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010iASA3#,GSA3#..NAP¥180200811-201301

L=18.5

45201PNUT, STEERING WHEEL SET

main90080-17234iASA3#,GSA3#..NAP¥140200811

8401

8408

6 parts on this diagram · 2 diagrams in section
