Toyota RAV4 (NAP) — STANDARD TOOL

09110JACK ASSY

main09111-0W110iASA3#,GSA3#..NAP¥5,500200811-201110

sub09111-0W111¥5,500

main09111-0W111iASA3#,GSA3#..NAP¥5,500201111-201203

main09111-0W140iASA3#,GSA3#..NAP¥5,500201204-201301

sub09111-0R030¥5,500

09113HANDLE, JACK

main09113-42010iASA3#,GSA3#..NAP¥1,090200811-200909

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010iASA3#,GSA3#..NAP200909

09120BAG, TOOL

main09120-0R030iASA3#,GSA3#..NAP200909

main09120-30050iASA3#,GSA3#..NAP¥550200811-200909

09150WRENCH, HUB NUT BOX

main09150-0R010iASA3#,GSA3#..NAP200909-201301

TYPE B:REFER ILLUST.

main09150-40010iASA3#,GSA3#..NAP¥1,150200811-200909

TYPE A:REFER ILLUST.

51960HOOK ASSY, FRONT

main51961-42050iASA3#,GSA3#..NAP200811-201301

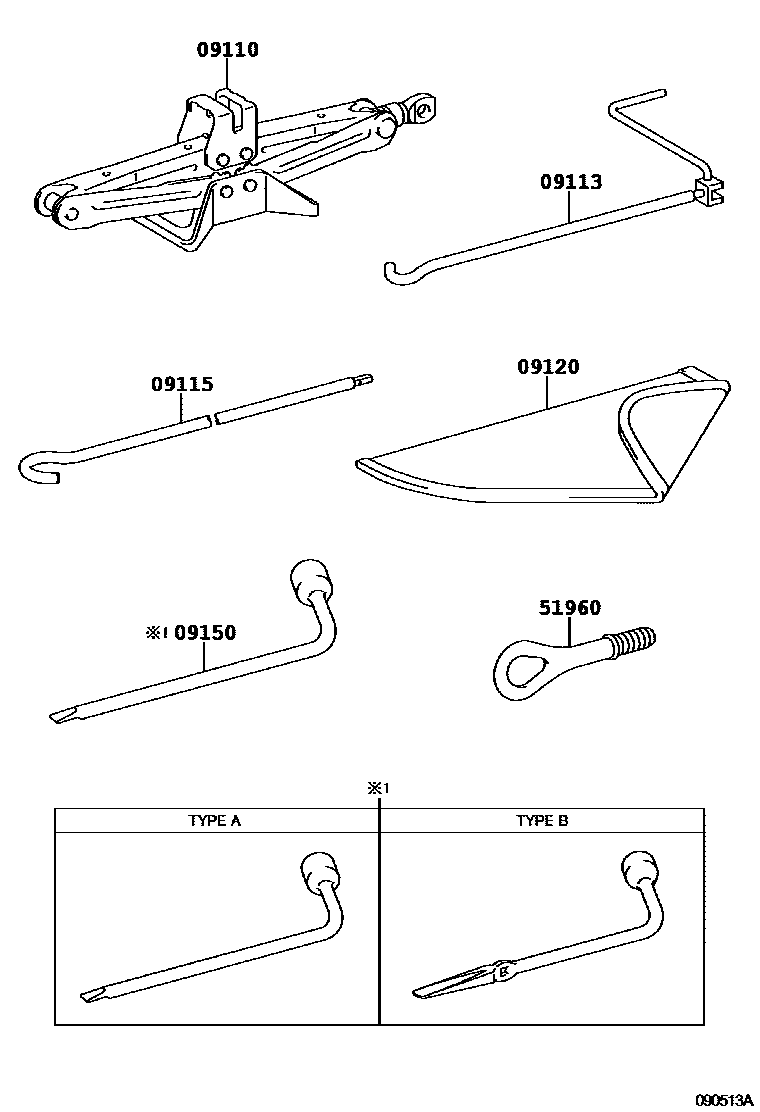

6 parts on this diagram · 1 diagram in section
