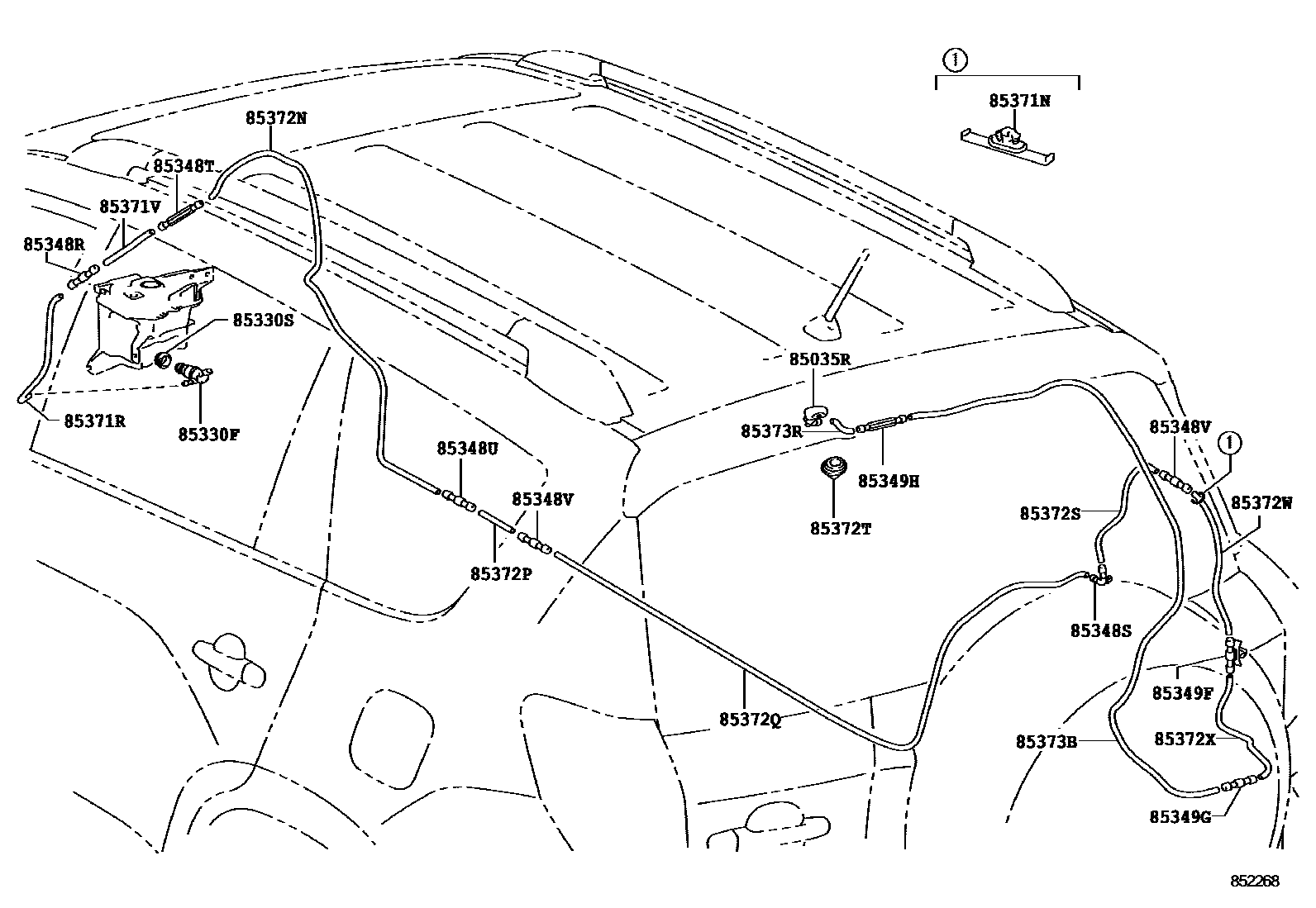

Toyota RAV4 (NAP) — REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=90
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=40
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1190
L=3360
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=40
L=910
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2110
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=550
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=450
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1460
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=90
23 parts on this diagram · 2 diagrams in section
