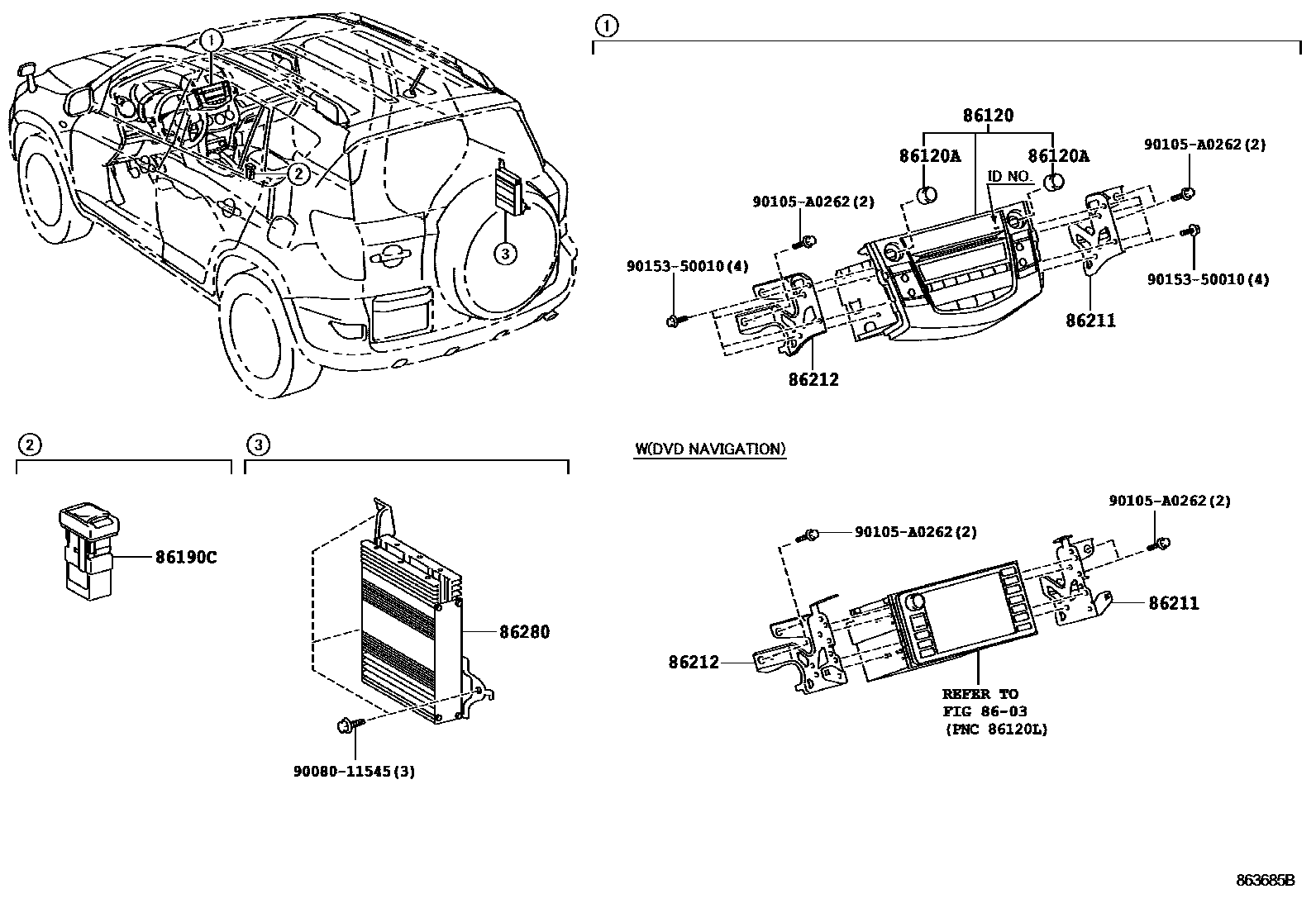

Toyota RAV4 (NAP) — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-0R070iASA3#,GSA3#..NAP..SPO200811-200910

FUJITSUTEN,ID=A11838

sub86120-0R071

main86120-0R070iASA3#,GSA3#..NAP..SPO200811-200910

FUJITSUTEN,ID=A11838,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

sub86120-0R071

main86120-0R071iASA3#,GSA3#..NAP..SPO200911-201112

FUJITSU TEN,ID=11860

main86120-0R071iASA3#,GSA3#..NAP..SPO200911-201112

FUJITSU TEN,ID=11860,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86120-0R080iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201112

PANASONIC,ID=A51878,AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86120-0R080iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201112

PANASONIC,ID=A51878,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86120-0R080iASA3#,GSA3#..NAP..LIMD..USA200811-201112

PANASONIC,ID=A51878

main86120-0R100iASA3#,GSA3#..NAP..LIMD..CND200811-201112

PANASONIC,ID=A51879,AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86120-0R100iASA3#,GSA3#..NAP..LIMD..CND200811-201112

PANASONIC,ID=A51879

main86120-0R100iASA3#,GSA3#..NAP..LIMD..CND200811-201112

PANASONIC,ID=A51879,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86120-0R130iASA3#,GSA3#..NAP..(LIMD,SPO)201112

PANASONIC,ID=518C3,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86120-0R130iASA3#,GSA3#..NAP..(LIMD,SPO)201112

PANASONIC,ID=518C3

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24149iASA3#,GSA3#..NAP¥160201112-201301

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main90011-23014iASA3#,GSA3#..NAP..SPO;ASA3#,GSA3#..NAP..LIMD..USA200811-201112

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main90011-23014iASA3#,GSA3#..NAP..(SPO,STD);ASA3#,GSA3#..NAP..LIMD..USA200811-201112

AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02010iASA3#,GSA3#..NAP¥6,000200811-201112

main86190-0C020iASA3#,GSA3#..NAP¥8,700201112

86211BRACKET, RADIO, NO.1

main86211-0R010iASA3#,GSA3#..NAP200811-201112

main86211-0R060iASA3#,GSA3#..NAP201112

86212BRACKET, RADIO, NO.2

main86212-0R010iASA3#,GSA3#..NAP200811-201112

main86212-0R060iASA3#,GSA3#..NAP201112

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W400

9008011545

main90080-11545¥120

90105A0262

main90105-A0262

9015350010

main90153-50010¥70

10 parts on this diagram · 3 diagrams in section
