Toyota RAV4 (NAP) — PARTIAL ENGINE ASSEMBLY

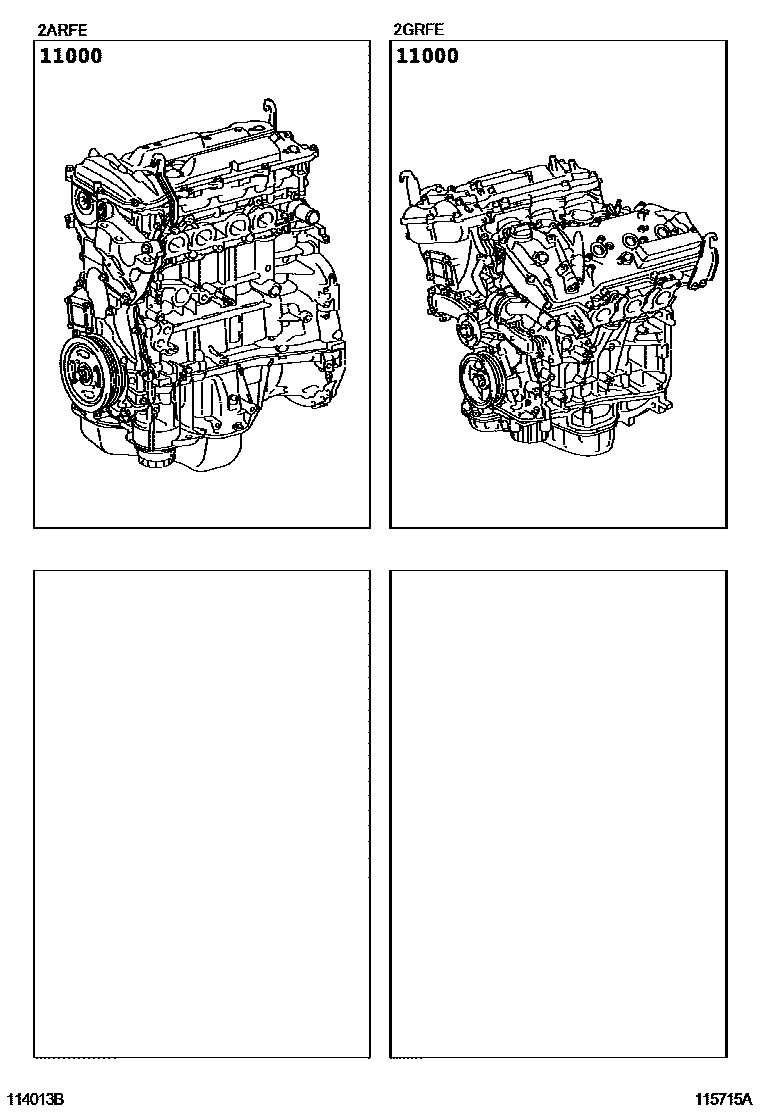

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0P220i200912-201301

(L)

main19000-0V040i201108-201301

*212

main19000-31B70i200811-200912

main19000-31B70i200912-201301

(J)

main19000-36210i200811-201108

main19000-36210i201108-201301

*107

1 parts on this diagram · 1 diagram in section
