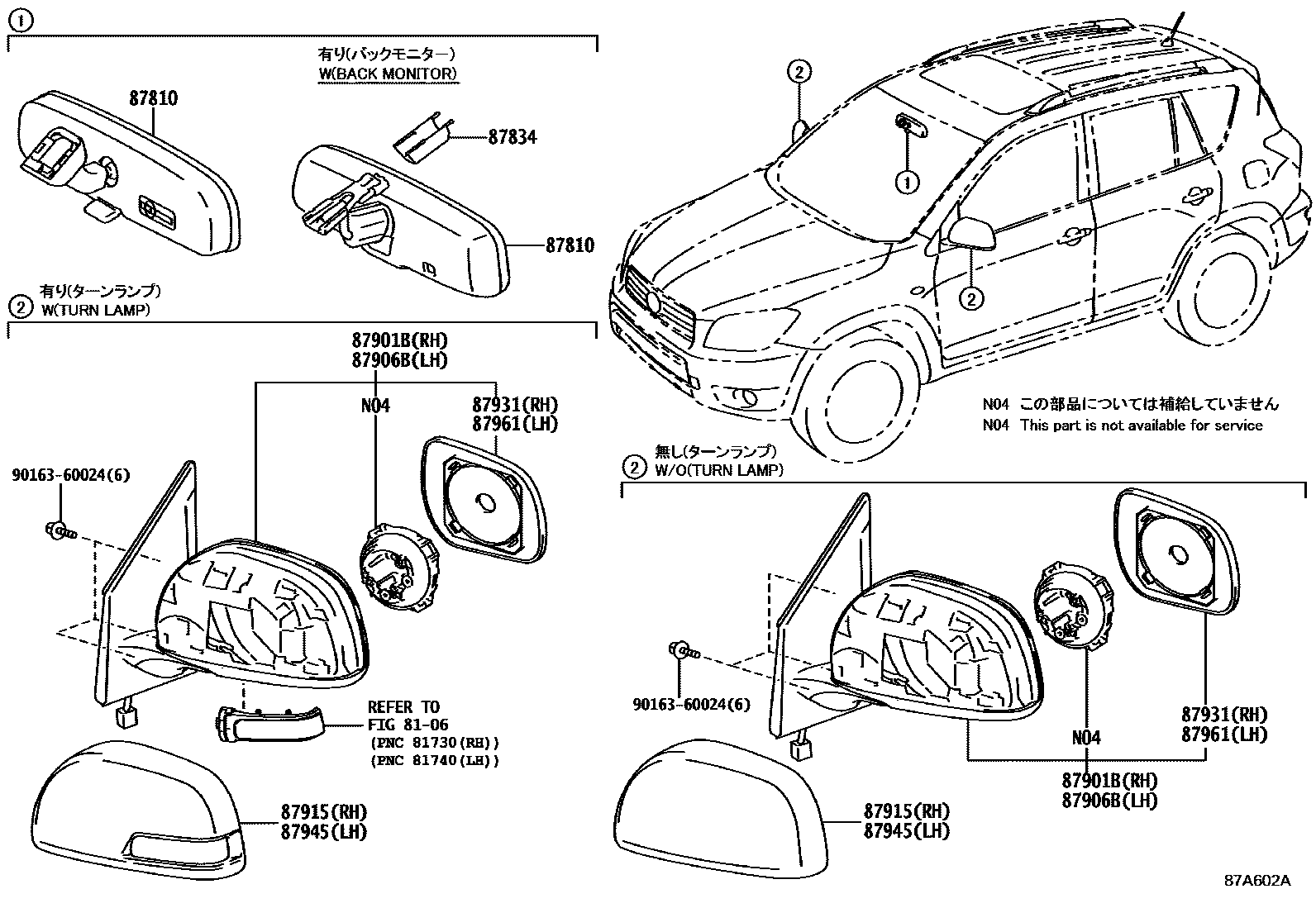

Toyota RAV4 (NAP) — MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-06080iASA3#,GSA3#..NAP¥7,700200811

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010¥470

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201301

NO PAINT REQ.

main87908-0R020iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

NO PAINT REQ.

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201301

main87909-0R020iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

87915COVER, OUTER MIRROR, RH

main87915-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201301

NO PAINT REQ.

main87915-0R020-A0iASA3#,GSA3#..NAP..(SPO,STD)..CND200811-201301

SUPER WHITE 2,040

sub87915-0R903

main87915-0R020-A1iASA3#,GSA3#..NAP..LIMD200811-201301

WHITE PEARL CS.,070

sub87915-0R903

main87915-0R020-B0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

SILVER ME.,1F7

sub87915-0R903

main87915-0R020-B1iASA3#,GSA3#..NAP..SPO..CND200811-201301

GRAY ME.,1G3

sub87915-0R903

main87915-0R020-C0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

BLACK,202

sub87915-0R903

main87915-0R020-D0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

RED M.M.,3R3

sub87915-0R903

main87915-0R020-E0iASA3#,GSA3#..NAP..LIMD..USA;ASA3#,GSA3#..NAP..(LIMD,STD)..CND200811-201301

BRONZE M.M.,4T3

sub87915-0R903

main87915-0R020-E1iASA3#,GSA3#..NAP..LIMD..USA;ASA3#,GSA3#..NAP..(LIMD,STD)..CND200811-201301

BEIGE ME.,4T8

sub87915-0R903

main87915-0R020-G0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

DK.GREEN MC.,6T3

sub87915-0R903

main87915-0R020-J0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

GRAYISH BLUE ME.,8R3

sub87915-0R903

87931OUTER MIRROR, RH

main87931-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811

main87931-0R020iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811

87945COVER, OUTER MIRROR, LH

main87945-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811-201301

NO PAINT REQ.

main87945-0R020-A0iASA3#,GSA3#..NAP..(SPO,STD)..CND200811-201301

SUPER WHITE 2,040

sub87945-0R904

main87945-0R020-A1iASA3#,GSA3#..NAP..LIMD200811-201301

WHITE PEARL CS.,070

sub87945-0R904

main87945-0R020-B0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

SILVER ME.,1F7

sub87945-0R904

main87945-0R020-B1iASA3#,GSA3#..NAP..SPO..CND200811-201301

GRAY ME.,1G3

sub87945-0R904

main87945-0R020-C0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

BLACK,202

sub87945-0R904

main87945-0R020-D0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

RED M.M.,3R3

sub87945-0R904

main87945-0R020-E0iASA3#,GSA3#..NAP..LIMD..USA;ASA3#,GSA3#..NAP..(LIMD,STD)..CND200811-201301

BRONZE M.M.,4T3

sub87945-0R904

main87945-0R020-E1iASA3#,GSA3#..NAP..LIMD..USA;ASA3#,GSA3#..NAP..(LIMD,STD)..CND200811-201301

BEIGE ME.,4T8

sub87945-0R904

main87945-0R020-G0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

DK.GREEN MC.,6T3

sub87945-0R904

main87945-0R020-J0iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811-201301

GRAYISH BLUE ME.,8R3

sub87945-0R904

87961MIRROR OUTER, LH

main87961-0R010iASA3#,GSA3#..NAP..(SPO,STD)..USA200811

main87961-0R020iASA3#,GSA3#..NAP..CND;ASA3#,GSA3#..NAP..LIMD..USA200811

9016360024

main90163-60024¥60

10 parts on this diagram · 1 diagram in section
