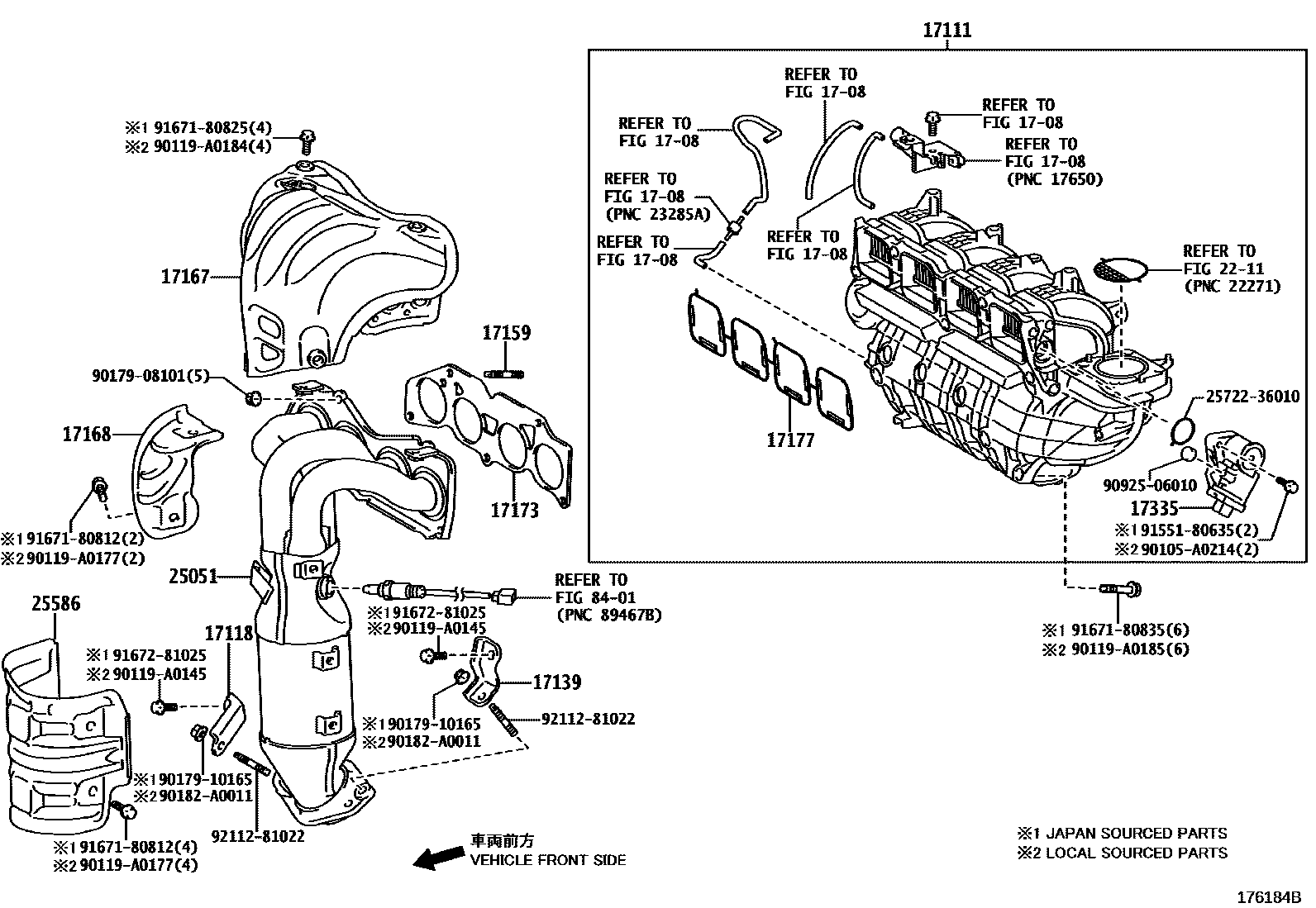

Toyota RAV4 (NAP) — MANIFOLD
1708
17111MANIFOLD, INTAKE
(L)
(J)
17118STAY, MANIFOLD
(L),*212
*107
(J),*212
17139STAY, MANIFOLD, NO.2
(L),*212
(J),*212
*107
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
*107
*212
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L),*212
*107
(J),*212
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L),*212
(J),*212
*107
17173GASKET, EXHAUST MANIFOLD TO HEAD
*212
*107
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*212
*107
(L)
(J)
17335ACTUATOR, INTAKE AIR CONTROL VALVE
*212
*107
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
(L),*212
*107
(J),*212
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L),*212
*107
(J),*212
8401
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
90105A0214
main90105-A0214
90119A0145
90119A0177
main90119-A0177
90119A0184
main90119-A0184
90119A0185
main90119-A0185
9017908101
9017910165
90182A0011
main90182-A0011
9092506010
9155180635
9167180812
9167180825
9167180835
9167281025
9211281022
30 parts on this diagram · 2 diagrams in section
