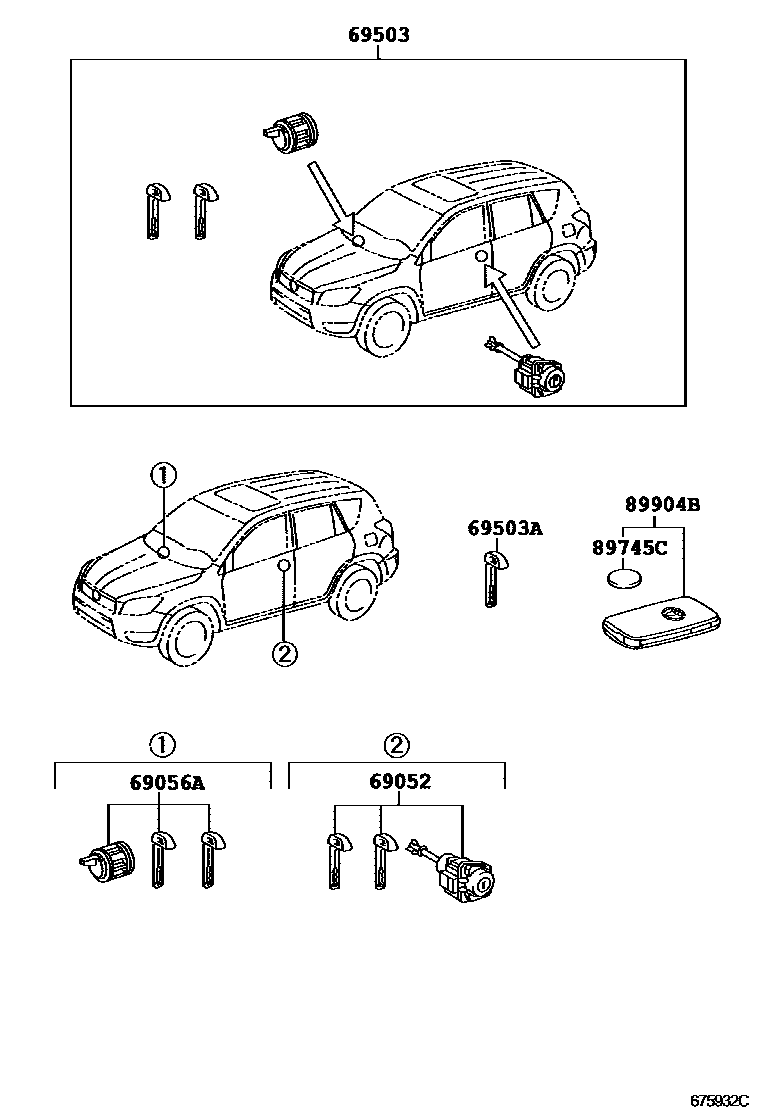

Toyota RAV4 (NAP) — LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02160iASA3#,GSA3#..NAP..(SPO,STD)200811

main69052-0R020iASA3#,GSA3#..NAP..LIMD200811

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06040iASA3#,GSA3#..NAP..(SPO,STD)200811

sub69056-0E100

main69056-0R040iASA3#,GSA3#..NAP..LIMD200811

69503CYLINDER SET, LOCK

main69005-0R020iASA3#,GSA3#..NAP..(SPO,STD)200811-201009

main69005-0R021iASA3#,GSA3#..NAP..(SPO,STD)201009

main69005-0R040iASA3#,GSA3#..NAP..LIMD200811

69503AKEY, BLANK

main69515-52120iASA3#,GSA3#..NAP..LIMD¥7,800200811

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-52020iASA3#,GSA3#..NAP..LIMD¥440200811-201009

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0R060iASA3#,GSA3#..NAP..LIMD201009-201105

main89904-0R090iASA3#,GSA3#..NAP..LIMD201105-201109

sub89904-0R060

main89904-48100iASA3#,GSA3#..NAP..LIMD200811-201009

6 parts on this diagram · 2 diagrams in section
