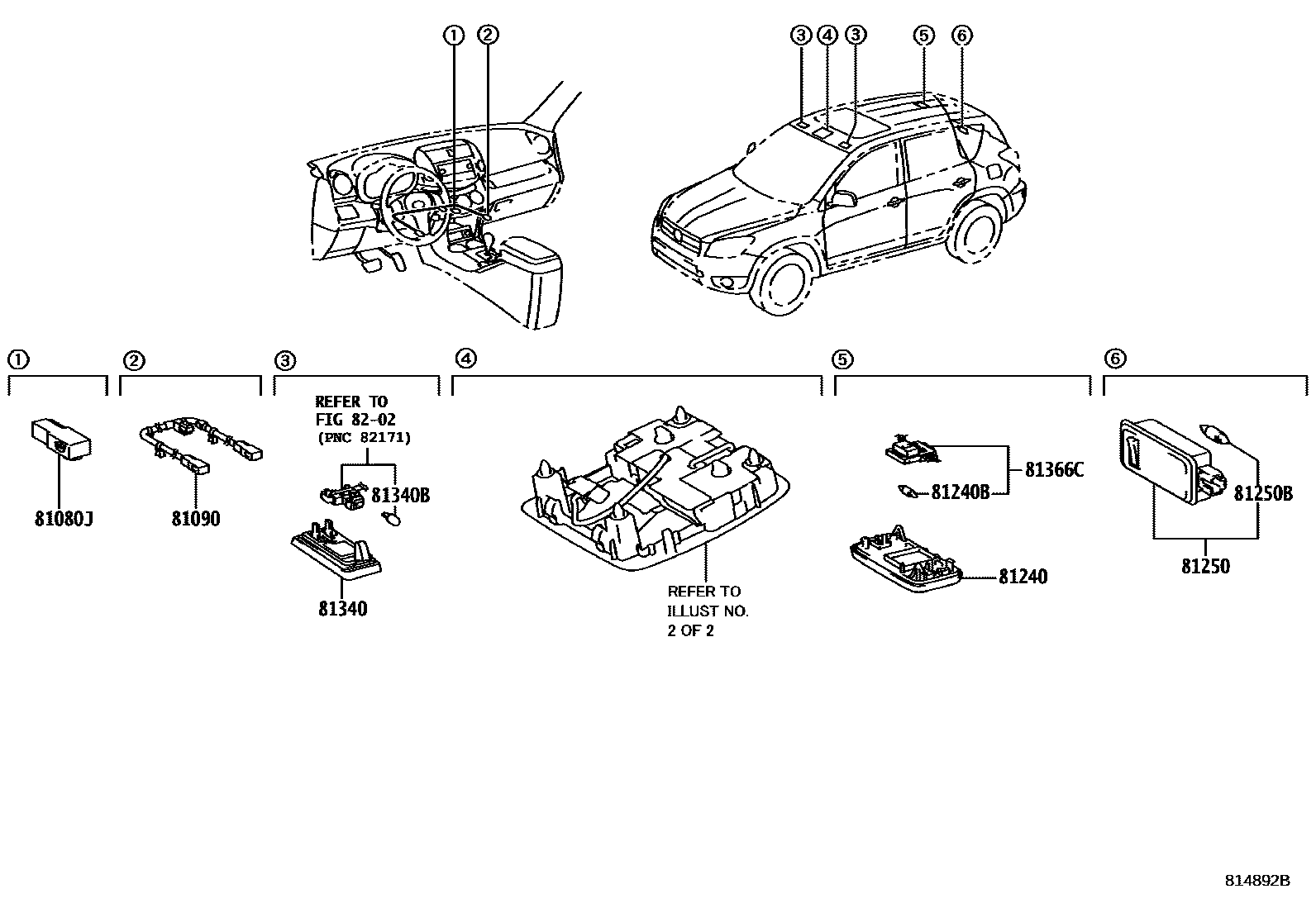

Toyota RAV4 (NAP) — INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42010iASA3#,GSA3#..NAP¥1,240200811

sub81080-B2060

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-42010iASA3#,GSA3#..NAP..LIMD¥4,100200811

81240LAMP ASSY, ROOM, NO.1

main81240-02090-B1iASA3#,GSA3#..NAP200811-201301

GRAY,TRIM1#

main81240-02090-E1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iASA3#,GSA3#..NAP¥180200811

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iASA3#,GSA3#..NAP¥2,420200811

81250BBULB, ROOM LAMP, NO.2

main99132-13050iASA3#,GSA3#..NAP¥150200811

12V 5W

81340LAMP ASSY, VANITY

main81340-30100-B1iASA3#,GSA3#..NAP200811-201204

GRAY,TRIM1#

main81340-30100-E2iASA3#,GSA3#..NAP..(LIMD,STD)200811-201204

SAND BEIGE,TRIM4#

main81340-30110iASA3#,GSA3#..NAP¥1,670201204

81340BBULB (FOR VANITY LAMP)

main90981-11062iASA3#,GSA3#..NAP¥340200811

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-02010iASA3#,GSA3#..NAP200811-201301

8202

10 parts on this diagram · 2 diagrams in section
