Toyota RAV4 (NAP) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

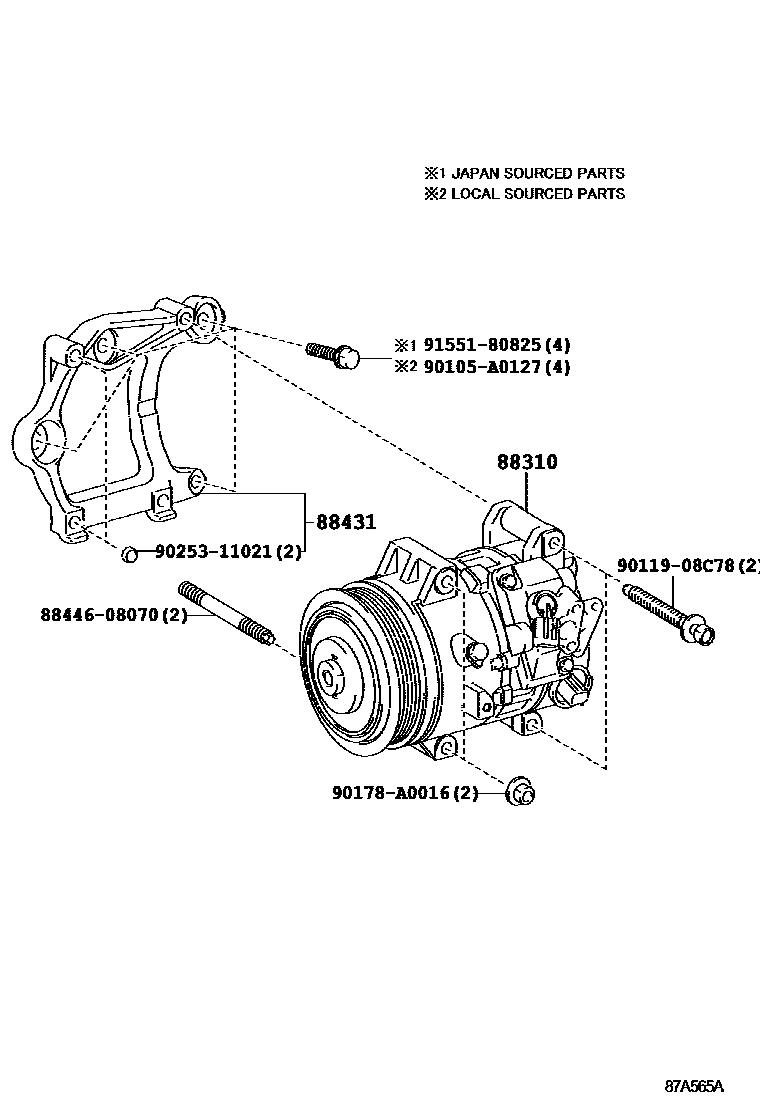

88310COMPRESSOR ASSY, W/PULLEY

main88310-0R010iASA3#..NAP200811-200905

sub88310-0R011

main88310-0R011iASA3#..NAP200906-201008

sub88310-0R013

main88310-0R012iASA3#..NAP201009-201102

sub88310-0R013

main88310-0R013iASA3#..NAP201103-201209

sub88310-0R014

main88310-0R014iASA3#..NAP201210-201301

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-0V040iASA3#..NAP201211-201301

(L)

main12502-36010iASA3#..NAP¥5,700200811-201211

main12502-36010iASA3#..NAP¥5,700201211-201301

(J)

8844608070BOLT, IDLE PULLEY

main88446-08070¥170

90105A0127

main90105-A0127

9011908C78

main90119-08C78¥0

90178A0016

main90178-A0016

9025311021

main90253-11021¥120

9155180825

main91551-80825¥80

8 parts on this diagram · 2 diagrams in section
