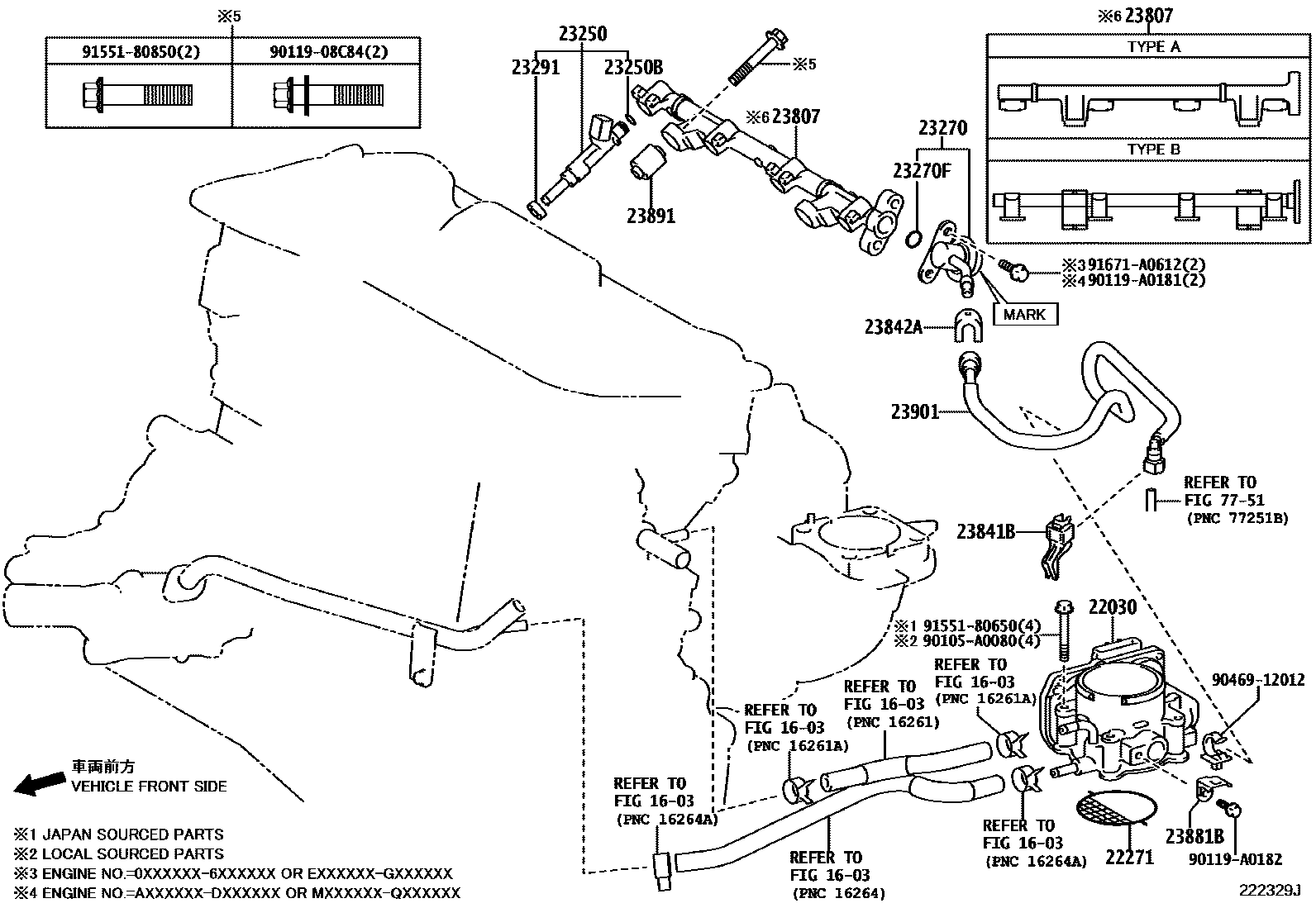

Toyota RAV4 (NAP) — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*212
*107
22271GASKET, THROTTLE BODY
*212
*107
23250INJECTOR ASSY, FUEL
*212
(L)
(J)
*107
23250BRING, O(FOR FUEL INJECTOR)
(J)
*107
*212
(L),*212
(J),*212
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*212MARK 23270-36031,*107MARK 23270-36031
23270FRING, O(FOR PULSATION DAMPER)
*107
*212
23291INSULATOR, INJECTOR VIBRATION
(L),*212
(J),*212
*107
23807PIPE SUB-ASSY, FUEL DELIVERY
(L)
(J)
*212
*107T/P B:REF.ILLUST
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
*107PNC 23807=TYPE B
*212
*107PNC 23807=TYPE A
23901TUBE SUB-ASSY, FUEL
7751
90105A0080
main90105-A0080
9011908C84
90119A0181
main90119-A0181
90119A0182
main90119-A0182
9046912012
9155180650
9155180850
91671A0612
23 parts on this diagram · 2 diagrams in section
