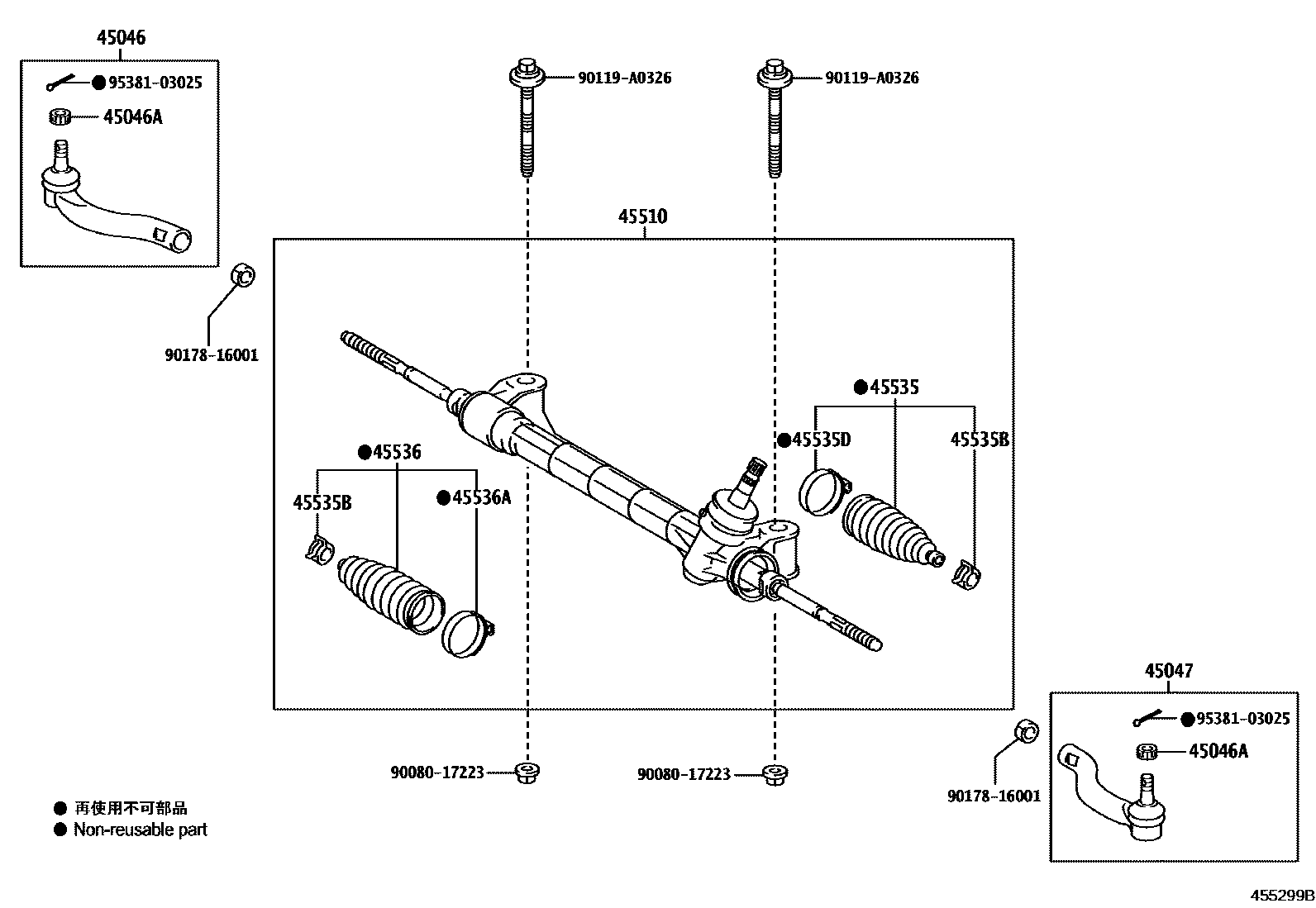

Toyota RAV4 (NAP) — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09650iASA3#,GSA3#..NAP200811

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iASA3#,GSA3#..NAP¥130200811

45047END SUB-ASSY, TIE ROD, LH

main45047-09310iASA3#,GSA3#..NAP200811

45510GEAR ASSY, STEERING

main45510-0R010iASA3#..NAP..(LIMD,STD)200909

MEXICO SPEC

sub45510-42230¥47,300

main45510-0R020iGSA3#..NAP;ASA3#..NAP..SPO200812

sub45510-42240¥47,300

main45510-42100iASA3#..NAP..SPO..USA200811-200909

MEXICO SPEC

sub45510-0R010

main45510-42110iGSA3#..NAP;ASA3#..NAP..SPO200811-200812

sub45510-0R020

45535BOOT, STEERING RACK, NO.1

main45535-49025iASA3#,GSA3#..NAP¥1,280200812

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010iASA3#,GSA3#..NAP¥220200811

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iASA3#,GSA3#..NAP¥220200811

45536BOOT, STEERING RACK, NO.2

main45535-49025iASA3#,GSA3#..NAP¥1,280200812

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iASA3#,GSA3#..NAP¥220200811

9008017223

main90080-17223

90119A0326

main90119-A0326

9017816001

main90178-16001¥120

9538103025

main95381-03025¥130

13 parts on this diagram · 1 diagram in section
