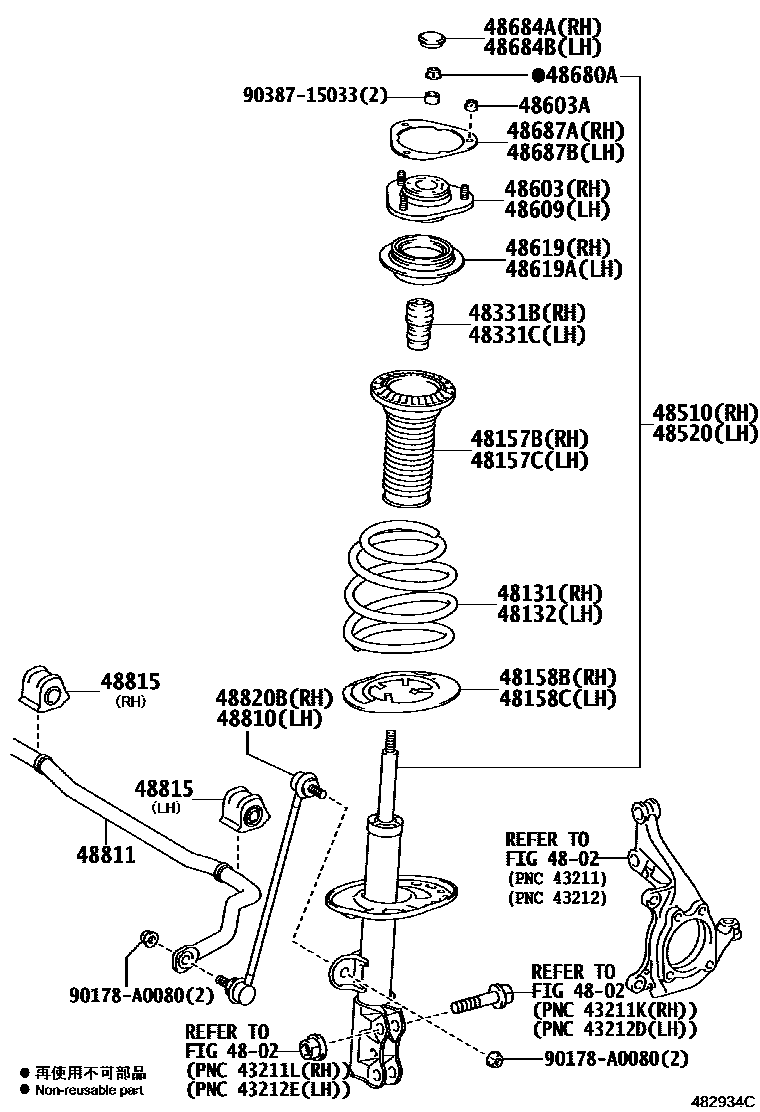

Toyota RAV4 (NAP) — FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
48132SPRING, FRONT COIL, LH
TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0R020
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0R020
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48687APLATE, FRONT SUSPENSION SUPPORT, RH
48687BPLATE, FRONT SUSPENSION SUPPORT, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
sub48811-0R011
48815BUSH, FRONT STABILIZER BAR, NO.1
LH
RH
48820BLINK ASSY, FRONT STABILIZER, RH
90178A0080
main90178-A0080
9038715033
27 parts on this diagram · 1 diagram in section
