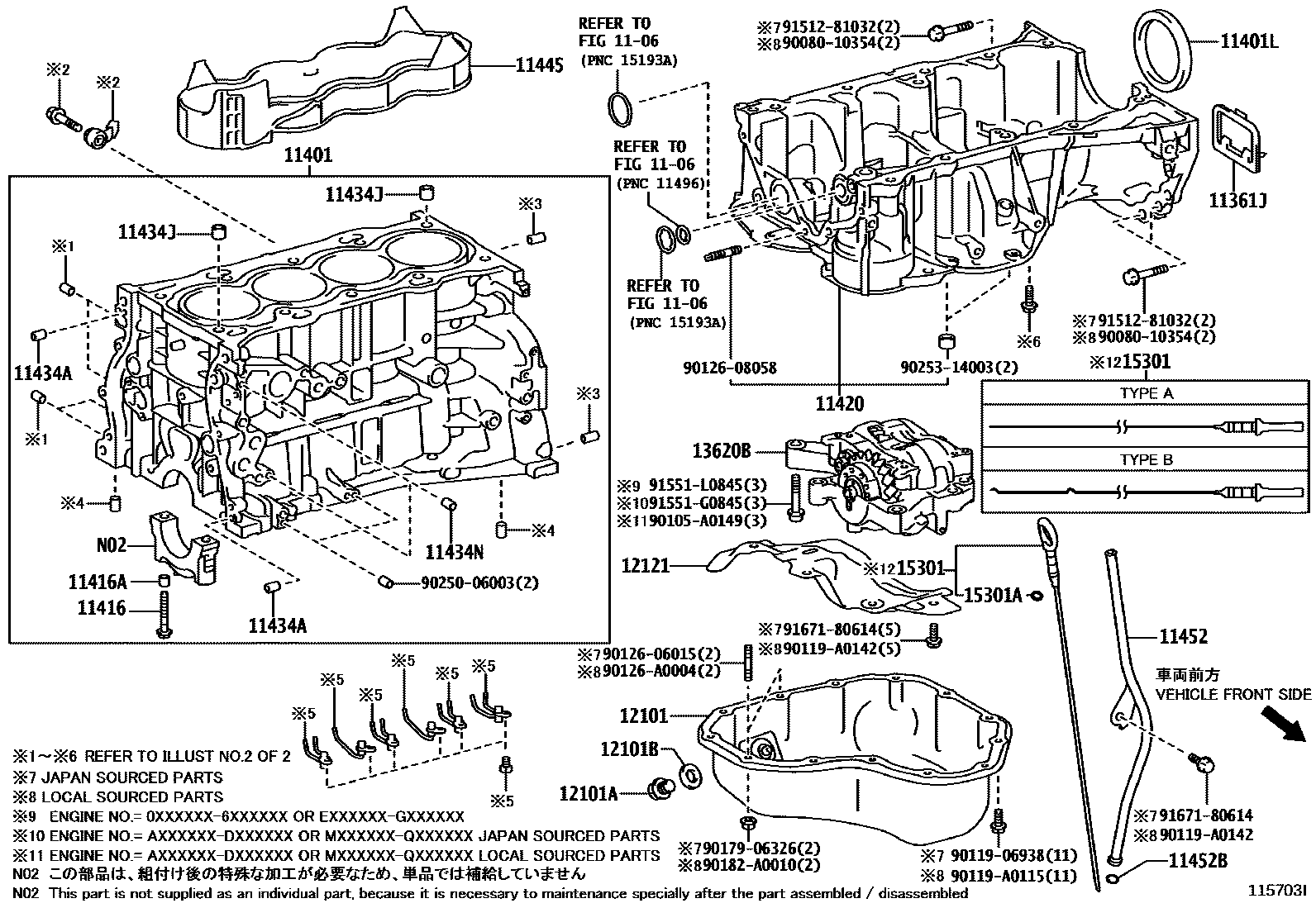

Toyota RAV4 (NAP) — CYLINDER BLOCK
1106
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
*212
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
*107
(L)
*212
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
*212
*107
11420CRANKCASE ASSY, STIFFENING
*107
*212
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,*107
L=14,OD=6,*212
11434JPIN, RING (FOR CYLINDER HEAD SET)
*107
*212
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*107
*212
11445SPACER, CYLINDER BLOCK WATER JACKET
*212
*107
11452GUIDE, OIL LEVEL GAGE
(L)
*212
(J)
*107
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
*212
*107
12101PAN SUB-ASSY, OIL
(L)
(L),*212
(J)
*107
(J),*212
12101APLUG(FOR OIL PAN DRAIN)
*107
*212
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*107
*212
12121PLATE, OIL PAN BAFFLE, NO.1
(L)
*212
(J)
*107
13620BBALANCER ASSY, ENGINE
*107,(J),*212
15301GAGE SUB-ASSY, OIL LEVEL
(L),*212
*212
*212T/P A:SEE ILLUST
15301ARING, O(FOR OIL LEVEL GAGE)
9008010354
main90080-10354
90105A0149
main90105-A0149
9011906938
90119A0115
main90119-A0115
90119A0142
main90119-A0142
9012606015
9012608058
90126A0004
main90126-A0004
9017906326
90182A0010
main90182-A0010
9025006003
9025314003
9151281032
91551G0845
91551L0845
9167180614
36 parts on this diagram · 3 diagrams in section
