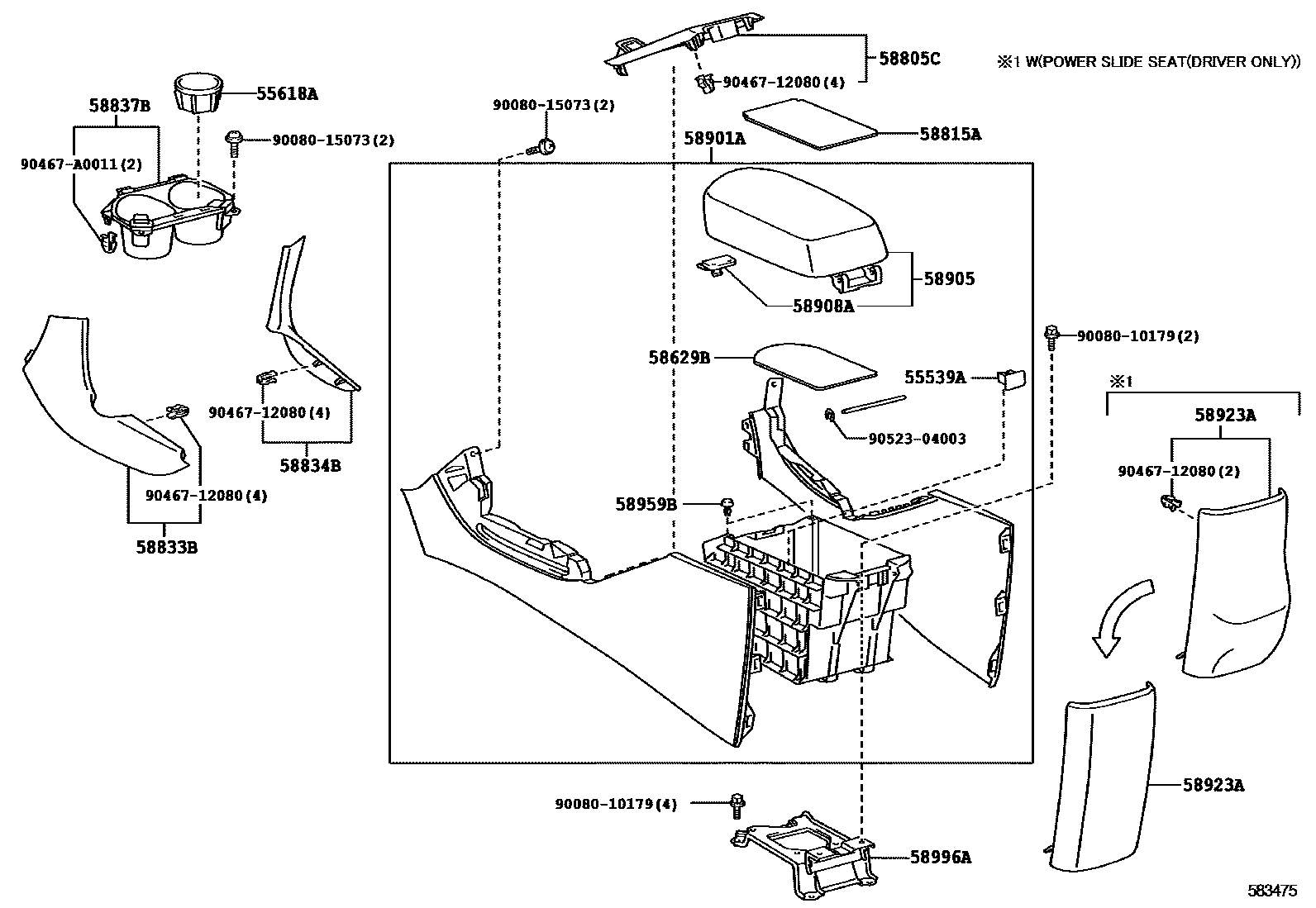

Toyota RAV4 (NAP) — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02130-B0iASA3#,GSA3#..NAP200811-201301

DK.GRAY

55618AHOLDER, CONSOLE BOX CUP

main55618-0R010iASA3#,GSA3#..NAP200811-201201

sub55618-0R011

main55618-0R011iASA3#,GSA3#..NAP201201

58629BMAT, CENTER CONSOLE

main58629-0R010iASA3#,GSA3#..NAP200811

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201111

DK.GRAY,TRIM1#

sub58805-0R011

main58805-0R010-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201111

GRAY,TRIM1#

sub58805-0R011

main58805-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201111

SAND BEIGE,TRIM4#

sub58805-0R011

main58805-0R011-B0iASA3#,GSA3#..NAP..SPO201112-201301

DK.GRAY,TRIM1#

main58805-0R011-B1iASA3#,GSA3#..NAP..(LIMD,STD)201112-201301

GRAY,TRIM1#

main58805-0R011-E0iASA3#,GSA3#..NAP..(LIMD,STD)201112-201301

SAND BEIGE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-0R010iASA3#,GSA3#..NAP200811

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

GRAY,TRIM1#

main58833-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

GRAY,TRIM1#,4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

GRAY,TRIM1#,4#

main58834-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

GRAY,TRIM1#

58837BBOX, CONSOLE CUP HOLDER

main58837-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main58837-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#,4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0R010-B4iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main58901-0R010-B5iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

GRAY,TRIM1#

main58901-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0R010-B2iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main58905-0R010-B3iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

GRAY,TRIM1#

main58905-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iASA3#,GSA3#..NAP¥970201105

main58908-32021iASA3#,GSA3#..NAP¥1,320200811-201105

sub58908-12080¥970

58923APANEL, CONSOLE REAR END

main58923-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main58923-0R010-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

GRAY,TRIM1#

main58923-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-0R010iASA3#,GSA3#..NAP200811

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R010iASA3#,GSA3#..NAP200811

9008010179

main90080-10179¥90

9008015073

main90080-15073

9046712080

main90467-12080¥60

90467A0011

main90467-A0011

9052304003

main90523-04003¥90

19 parts on this diagram · 1 diagram in section
