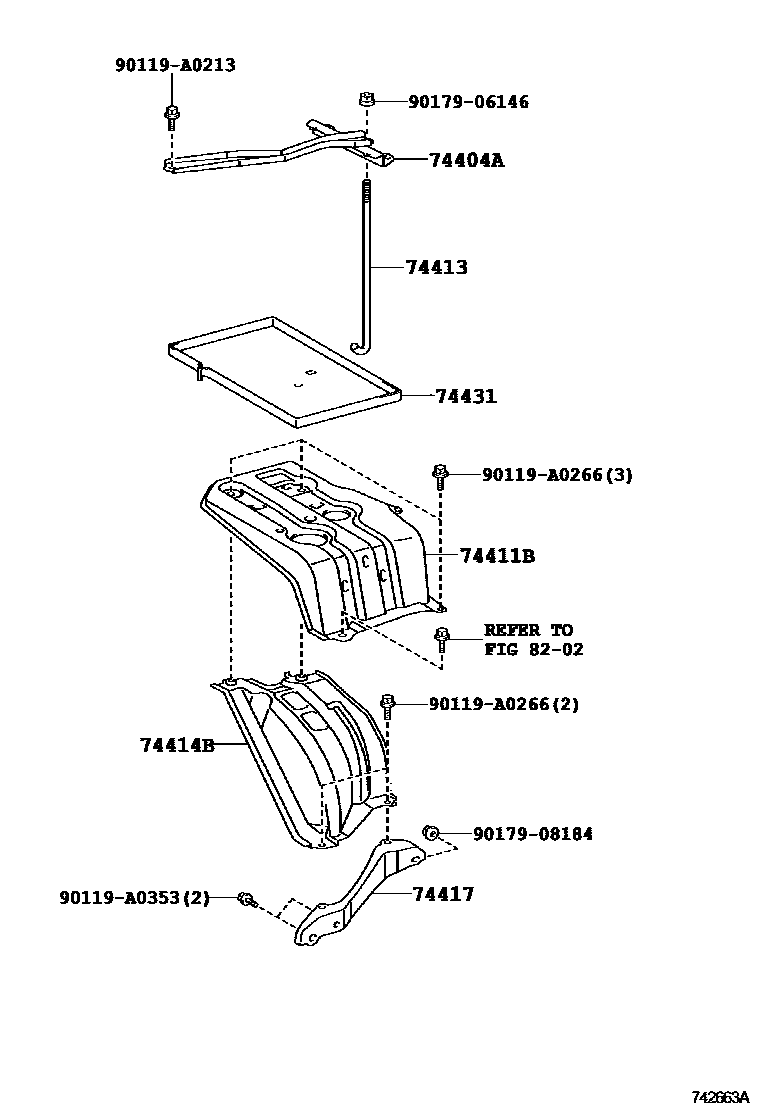

Toyota RAV4 (NAP) — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0R011iASA3#,GSA3#..NAP200811

74411BBRACKET, BATTERY, FRONT

main74411-0R010iASA3#,GSA3#..NAP200811-201205

sub74411-0R030

main74411-0R030iASA3#,GSA3#..NAP201206

74413BOLT, BATTERY CLAMP

main74451-10060iASA3#,GSA3#..NAP¥360200811

74414BREINFORCEMENT, BATTERY BRACKET

main74414-0R010iASA3#,GSA3#..NAP200811

74417BRACKET, BATTERY CARRIER

main74417-0R010iASA3#,GSA3#..NAP200811

74431TRAY, BATTERY

main74431-0R010iASA3#,GSA3#..NAP200811

8202

90119A0213

main90119-A0213

90119A0266

main90119-A0266

90119A0353

main90119-A0353

9017906146

main90179-06146¥100

9017908184

main90179-08184¥90

12 parts on this diagram · 1 diagram in section
