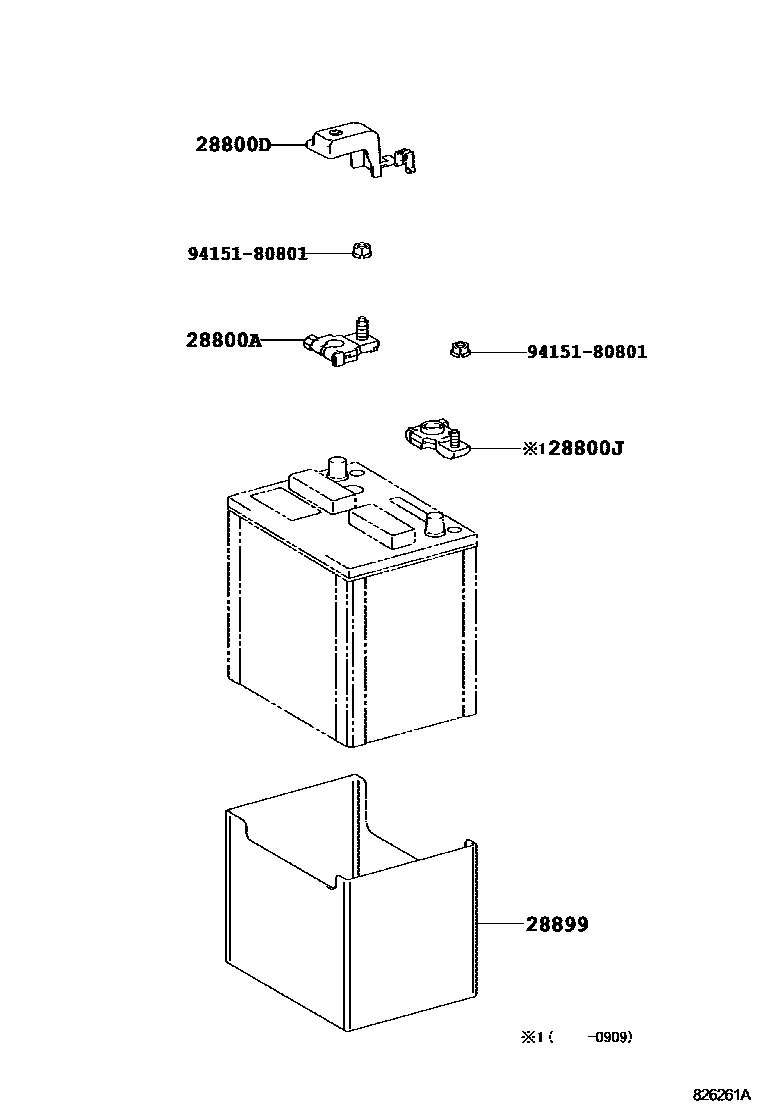

Toyota RAV4 (NAP) — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ARFE,2GRFE..ASA3#,GSA3#..NAP¥850200811-201106

main90982-05061i2ARFE,2GRFE..ASA3#,GSA3#..NAP¥850201107

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0E010i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ARFE,2GRFE..ASA3#,GSA3#..NAP¥850200811-200909

28899INSULATOR, BATTERY

main28899-28030i2ARFE..ASA3#..NAP¥2,630200811

main28899-31040i2GRFE..GSA3#..NAP¥2,890200811

9415180801

main94151-80801¥80

5 parts on this diagram · 1 diagram in section
