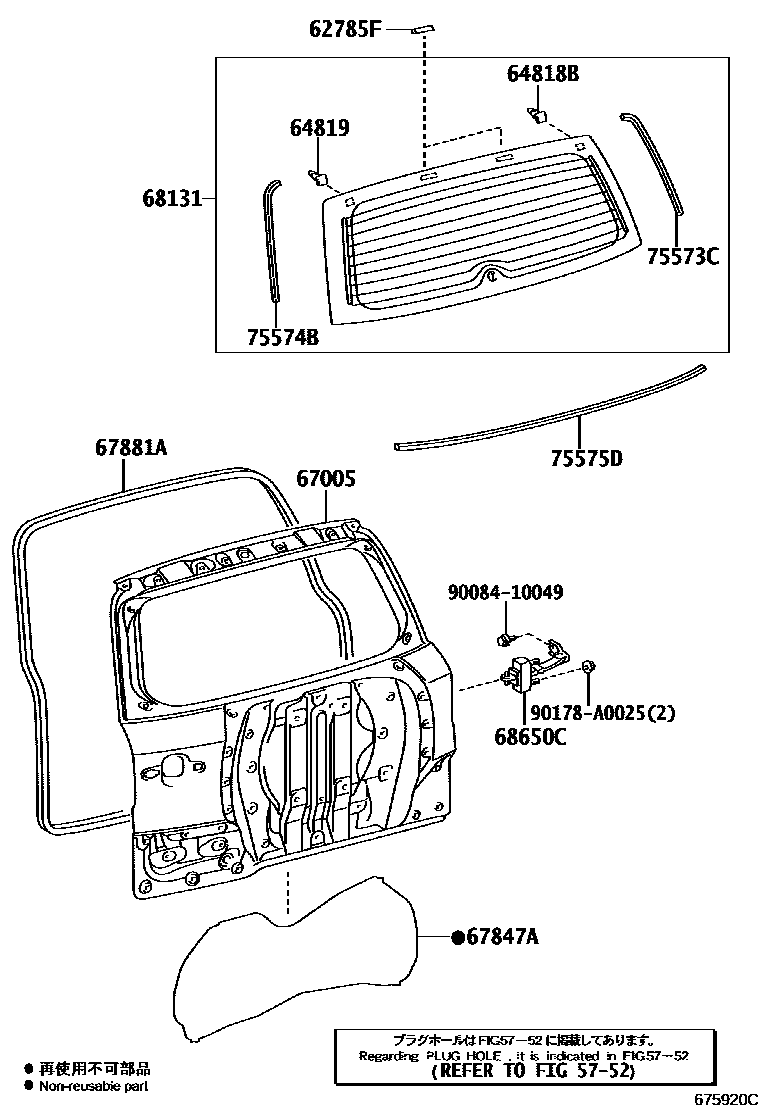

Toyota RAV4 (NAP) — BACK DOOR PANEL & GLASS
5752
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67847ACOVER, BACK DOOR SERVICE HOLE
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=3.1,DK.GRAY
*EHTT,T=3.1,DK.GRAY,REAR SIDE GLASS-REINFORCED(DARK GRAY)
*UVCEHT,T=3.1,GREEN
68650CCHECK ASSY, BACK DOOR, RH
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
9008410049
main90084-10049
90178A0025
main90178-A0025
14 parts on this diagram · 3 diagrams in section
