Toyota RAV4 (NAP) — AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iASA3#,GSA3#..NAP¥460200811

89170SENSOR ASSY, AIRBAG

main89170-0R010iASA3#,GSA3#..NAP..CND200811-201009

main89170-0R020iASA3#,GSA3#..NAP..USA200811-201101

sub89170-0R021

main89170-0R021iASA3#,GSA3#..NAP201102-201112

main89170-0R022iASA3#,GSA3#..NAP201112-201208

main89170-0R120iASA3#,GSA3#..NAP201208

89173ASENSOR, AIRBAG, FRONT RH

main89173-09540iASA3#,GSA3#..NAP200811

89174ASENSOR, AIRBAG, FRONT LH

main89173-09540iASA3#,GSA3#..NAP200811

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06030iASA3#,GSA3#..NAP¥2,820200811

89833SENSOR, AIRBAG, REAR RH

main89831-0R020iASA3#,GSA3#..NAP..USA200811

MEXICO SPEC&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)

main89831-0R020iASA3#,GSA3#..NAP..CND201009

89834SENSOR, AIRBAG, REAR LH

main89831-0R020iASA3#,GSA3#..NAP..USA200811

MEXICO SPEC&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)

main89831-0R020iASA3#,GSA3#..NAP..CND201009

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0R010iASA3#,GSA3#..NAP..USA200811

MEXICO SPEC&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)

main89831-0R010iASA3#,GSA3#..NAP..CND201009

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0R010iASA3#,GSA3#..NAP..USA200811

MEXICO SPEC&SRS AIR BAG-W(DRIVER&PASSENGER) & W/O(CURTAIN&SIDE)

main89831-0R010iASA3#,GSA3#..NAP..CND201009

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iASA3#,GSA3#..NAP¥10,100200811-201301

sub89952-35020¥8,400

90105A0031

main90105-A0031

90105A0096

main90105-A0096

90119A0319

main90119-A0319

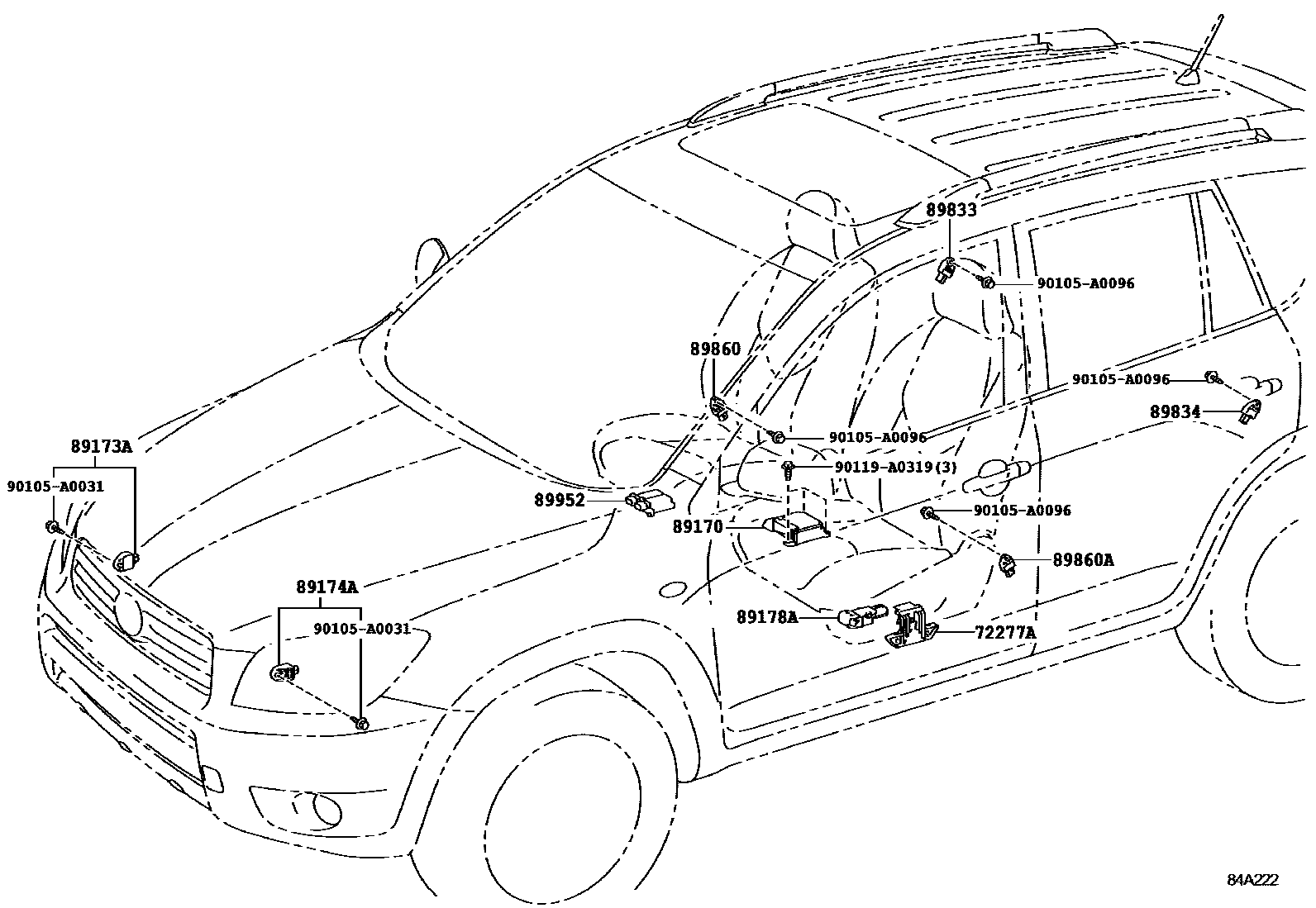

13 parts on this diagram · 1 diagram in section
