Toyota RAV4 (JPP) — VALVE BODY & OIL STRAINER (ATM)

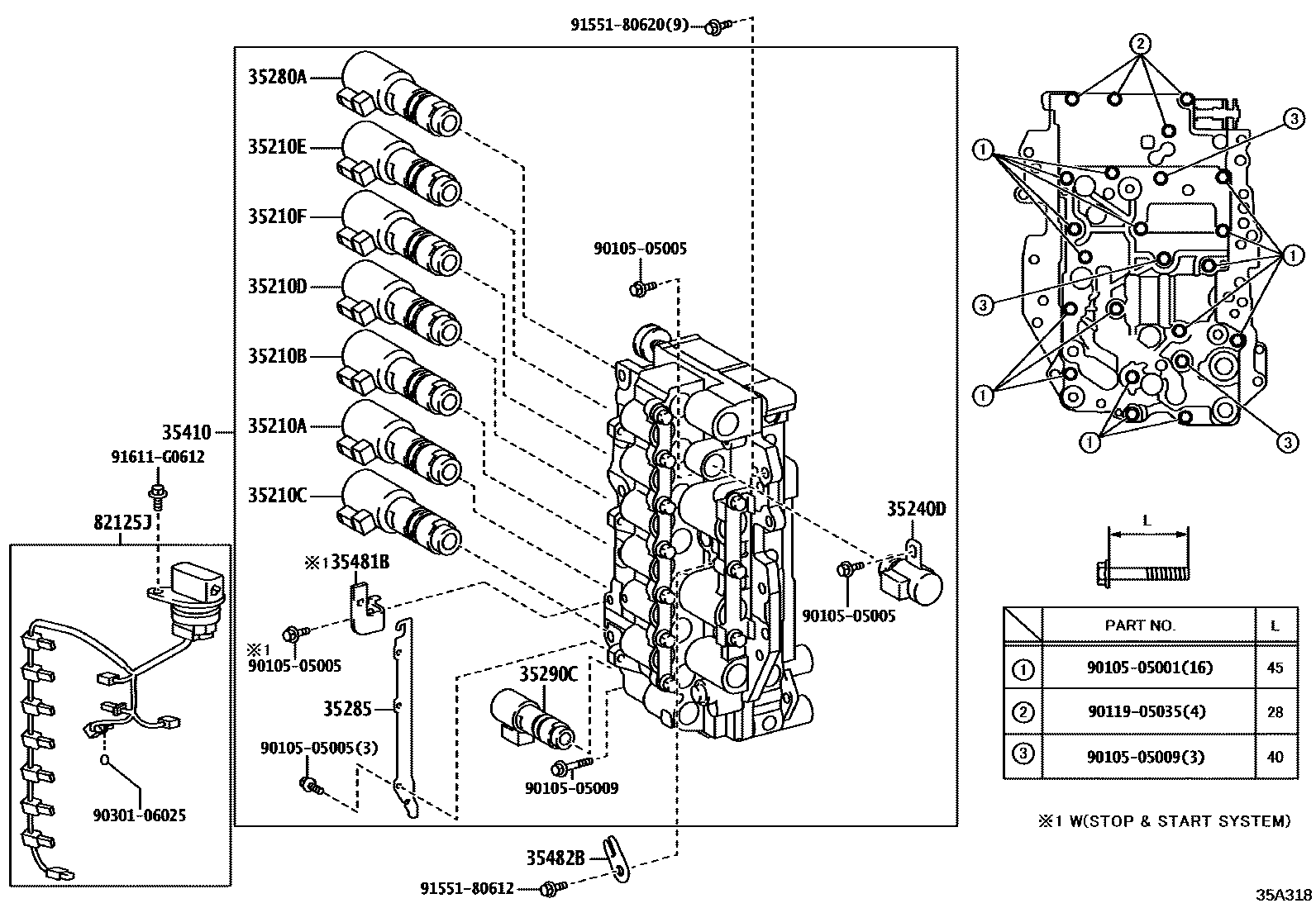

Parts diagram
35210AVALVE, SOLENOID(SL1)
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202310
35210BVALVE, SOLENOID(SL3)
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000202310
35210CVALVE, SOLENOID(SL2)
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000202310
35210DVALVE, SOLENOID(SL4)
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000202310
35210EVALVE, SOLENOID(SL5)
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000202310
35210FVALVE, SOLENOID(SL6)
main35210-48020i¥7,000201811-202007
main35210-48020i¥7,000202008-202210
main35210-48020i¥7,000202210-202310
main35210-48020i¥7,000202310
35240DVALVE, SOLENOID(SL)
main35240-48020i¥7,000201811-202007
main35240-48020i¥7,000202008-202210
main35240-48020i¥7,000202210-202310
main35240-48020i¥7,000202310
35280AVALVE, SOLENOID(SLU)
main35280-48030i¥7,000201811-202007
main35280-48030i¥7,000202008-202210
main35280-48030i¥7,000202210-202310
main35280-48030i¥7,000202310
35285PLATE, SOLENOID LOCK
main35285-48030i¥500202210-202310
main35285-48030i¥500201811-202007
main35285-48030i¥500202008-202210
main35285-48030i¥500202310
35290CVALVE, SOLENOID(SLT)
main35290-48030i¥7,000202310
main35290-48030i¥7,000202008-202210
main35290-48030i¥7,000202210-202310
main35290-48030i¥7,000201811-202007
35410BODY ASSY, TRANSMISSION VALVE
main35410-48090i202008-202210
main35410-48090i201811-202007
main35410-48090i202210-202310
main35410-48090i201811-201910
main35410-48090i202310
main35410-48100i¥72,700202310
main35410-48100i¥72,700201811-202007
main35410-48100i¥72,700201910-202007
main35410-48100i¥72,700202008-202210
main35410-48100i¥72,700202210-202310
35481BCLAMP, VALVE BODY WIRE HARNESS
main35481-48040i202008-202210
main35481-48040i201811-202007
main35481-48040i201910-202007
main35481-48040i202210-202310
main35481-48040i202310
35482BCLAMP, TEMPERATURE SENSOR
main35482-73010i¥170202310
main35482-73010i¥170201811-202007
main35482-73010i¥170202008-202210
main35482-73010i¥170202210-202310
82125JWIRE, TRANSMISSION
main82125-33171i202008-202210
main82125-33171i201811-202007
main82125-33171i202210-202310
main82125-33171i201811-201910
main82125-33171i202310
main82125-33211i¥2,140202310
main82125-33211i¥2,140201811-202007
main82125-33211i¥2,140201910-202007
main82125-33211i¥2,140202008-202210
main82125-33211i¥2,140202210-202310
9010505001
main90105-05001¥110
9010505005
main90105-05005¥70
9010505009
main90105-05009¥80
9011905035
main90119-05035¥110
9030106025
main90301-06025¥130
9155180612
main91551-80612¥60
9155180620
main91551-80620¥60
91611G0612
main91611-G0612¥70

22 parts on this diagram · 1 diagram in section
