Toyota RAV4 (JPP) — V-BELT

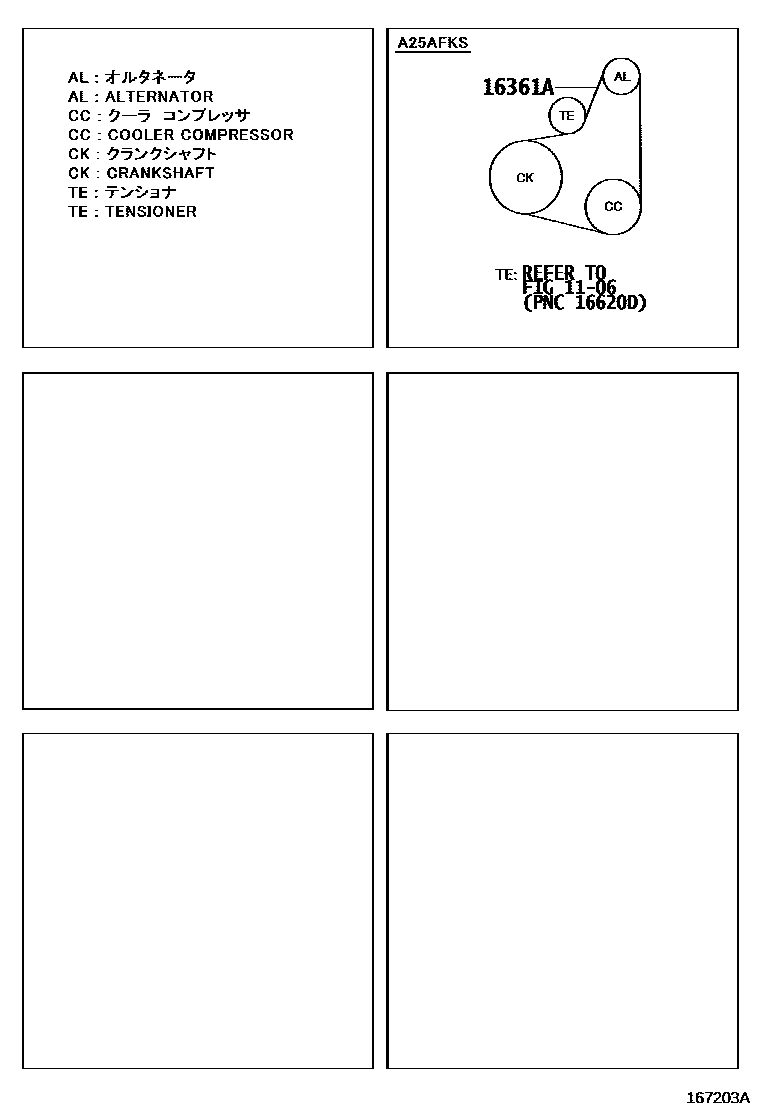

Parts diagram

1106

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02735i¥4,360201811-201908

sub90916-02778¥4,360

main90916-02778i¥4,360201909-202007

main90916-02778i¥4,360202008-202210

main90916-02778i¥4,360202210-202310

main90916-02778i¥4,360202310

2 parts on this diagram · 1 diagram in section
