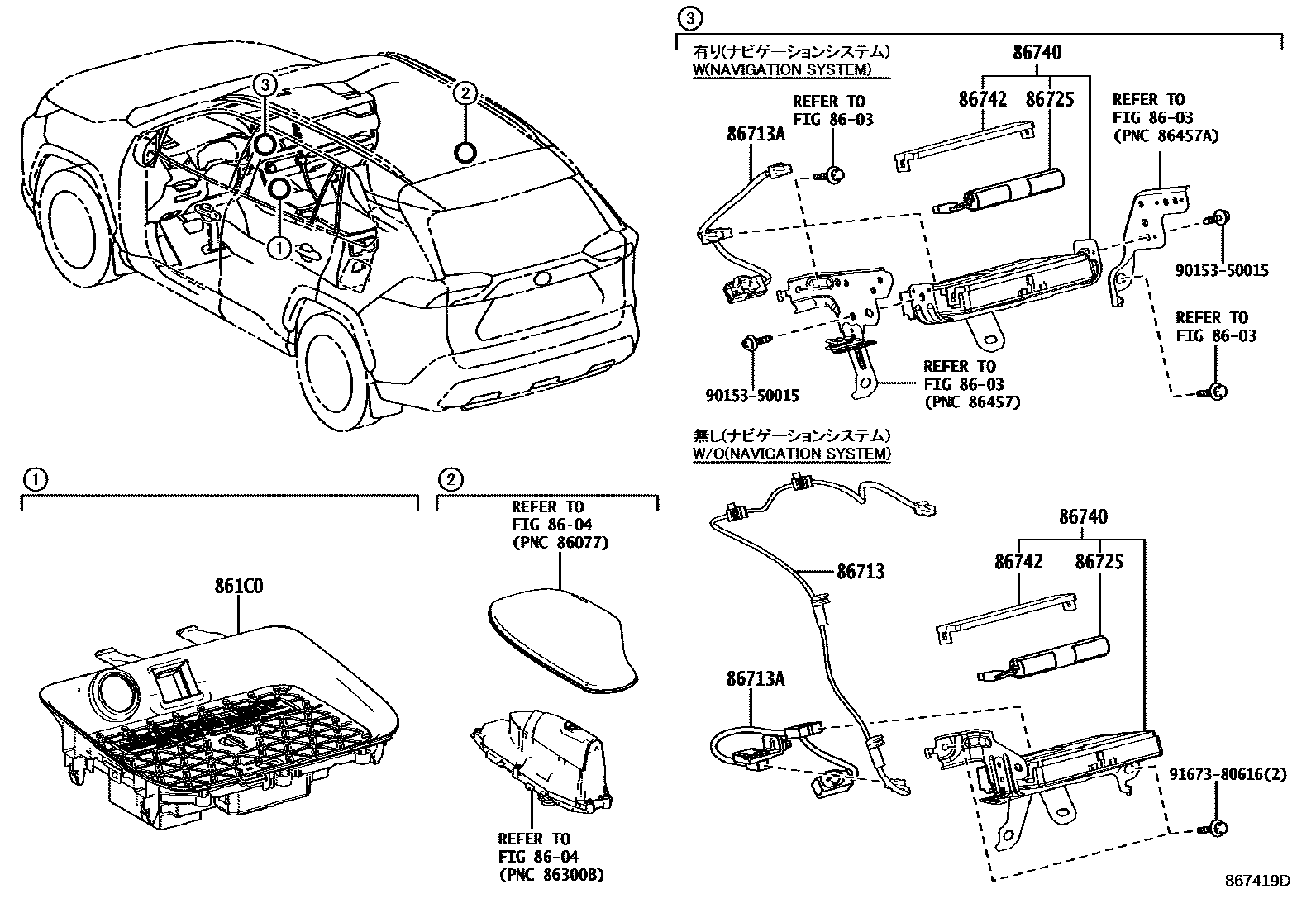

Toyota RAV4 (JPP) — TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8603

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-42010

main861C0-42011

main861C0-42100

main861C0-42110

main861C0-42111

86713WIRE, TELEPHONE COMPUTER

main86713-42020iAXAA5#,AXAH54,AXAL54201811-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86713-42020iAXAA5#,AXAH54,AXAL54201811-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86713-42020iAXAA5#,AXAH54,AXAL54201811-202007

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42020iAXAA5#,AXAH54,AXAL54201811-202007

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42020iAXAA5#,AXAH54,AXAL54201811-202007

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86713-42020iAXAA54..V202008-202112

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

HAWAII SPEC&AUDIO-6SPEAKER 7INCH

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH

main86713-42020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH

main86713-42170iAXAA5#,AXAH54,AXAL54202210-202310

AMERICAN SAMOA SPEC

main86713-42170iAXAA5#,AXAH54,AXAL54202210-202310

GUAM,SAIPAN SPEC

main86713-42170iAXAA5#,AXAH54,AXAL54202310

AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-42030iAXAA5#,AXAH54201811-201910

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86713-42030iAXAA5#,AXAH54201811-201910

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86713-42030iAXAA5#,AXAH54201811-201910

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42030iAXAA5#,AXAH54201811-201910

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42030iAXAA5#,AXAH54201811-201910

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86713-42080iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86713-42080iAXAA54..V202008-202112

main86713-42080iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH

main86713-42080iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

HAWAII SPEC&AUDIO-6SPEAKER 7INCH

main86713-42080iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH

main86713-42080iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH

main86713-42080iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH

main86713-42080iAXAA5#,AXAH54,AXAL54202210-202310

AMERICAN SAMOA SPEC

main86713-42080iAXAA5#,AXAH54,AXAL54202210-202310

GUAM,SAIPAN SPEC

main86713-42080iAXAA5#,AXAH54,AXAL54202310

AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT

86725BATTERY, MOBILEPHONE

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86725-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86725-06020iAXAA54..V202008-202112

main86725-06020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH

main86725-06020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

HAWAII SPEC&AUDIO-6SPEAKER 7INCH

main86725-06020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH

main86725-06020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH

main86725-06020iAXAA5#,AXAH54,AXAL54..G,M,P,S,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH

main86725-06020iAXAA5#,AXAH5#,AXAL54202210-202310

AMERICAN SAMOA SPEC

main86725-06020iAXAA5#,AXAH5#,AXAL54202210-202310

GUAM,SAIPAN SPEC

main86725-06020iAXAA5#,AXAH5#,AXAL54202310

DATA COMMUNICATION MODULE-WITHOUT

main86725-78010iAXAA5#,AXAH54¥8,300201811-201910

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86725-78010iAXAA5#,AXAH54¥8,300201811-201910

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86725-78010iAXAA5#,AXAH54¥8,300201811-201910

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86725-78010iAXAA5#,AXAH54..M,X¥8,300201811-201910

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86725-78010iAXAA5#,AXAH54..G,V¥8,300201811-201910

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

86740TRANSCEIVER ASSY, TELEPHONE

main86740-42040iAXAA52,AXAH54..M¥76,600201811-201910

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

sub86740-0R020

main86740-42040iAXAA5#,AXAH54¥76,600201811-201910

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

sub86740-0R020

main86740-42040iAXAA5#,AXAH54¥76,600201811-201910

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

sub86740-0R020

main86740-42040iAXAA5#,AXAH54¥76,600201811-201910

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

sub86740-0R020

main86740-42040iAXAA5#,AXAH54¥76,600201811-201910

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

sub86740-0R020

main86741-06091iAXAA52..M;AXAH54..G,M201910-201911

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

AUDIO-6SPEAKER 8INCH

sub86741-06092

main86741-06091iAXAA5#,AXAH54201910-201911

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

sub86741-06092

main86741-06092iAXAA5#..M,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH

main86741-06092iAXAA5#..M,X202008-202210

HAWAII SPEC&AUDIO-6SPEAKER 7INCH

main86741-06092iAXAA5#..M,X202008-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH

main86741-06092iAXAA5#..M,X202008-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH

main86741-06092iAXAA5#..M,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH

main86741-06092iAXAA5#,AXAH54,AXAL54..G201911-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main86741-06092iAXAA5#,AXAH54,AXAL54..G201911-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86741-06092iAXAA5#,AXAH54,AXAL54..G201911-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86741-06092iAXAL54..M;AXAA5#,AXAH54..G,M,V201911-202007

AUDIO-6SPEAKER 8INCH

main86741-06092iAXAA5#,AXAH54,AXAL54201911-202007

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86741-06092iAXAA5#,AXAH54,AXAL54201911-202007

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86741-06092iAXAA5#,AXAH54,AXAL54201911-202007

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86741-06092iAXAA54..V202008-202112

main86741-76050iAXAA5#,AXAH54,AXAL54202210-202310

AMERICAN SAMOA SPEC

main86741-76050iAXAA5#,AXAH54,AXAL54202210-202310

GUAM,SAIPAN SPEC

main86741-76050iAXAA5#202310

AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT

main86741-76090iAXAH52202210-202310

KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA

main86741-76090iAXAH52202310

KOREA SPEC&AUDIO-6SPEAKER 8INCH KOREA

86742COVER, TRANSCEIVER

main86742-06020iAXAA5#..M,X202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH

main86742-06020iAXAH54..G,M202008-202210

HAWAII SPEC&AUDIO-6SPEAKER 7INCH

main86742-06020iAXAH54..G,M202008-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH

main86742-06020iAXAH54..G,M202008-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH

main86742-06020iAXAH54..G,M202008-202210

PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH

main86742-06020iAXAA54,AXAH54,AXAL54..G,M,P,S201910-202210

KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD

main86742-06020iAXAA54,AXAH54,AXAL54..G,M,P,S201910-202210

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86742-06020iAXAA54,AXAH54,AXAL54..G,M,P,S201910-202210

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86742-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86742-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86742-06020iAXAA5#,AXAH54,AXAL54201910-202007

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86742-06020iAXAA54..V202008-202112

main86742-12010iAXAA5#,AXAH54..G,V201811-201910

AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT

main86742-12010iAXAA5#,AXAH54201811-201910

AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT

main86742-12010iAXAA5#,AXAH54201811-201910

AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT

main86742-12010iAXAA54,AXAH54..G,V201811-201910

AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH

main86742-12010iAXAA54,AXAH54..G,V201811-201910

GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH

main86742-78010iAXAA5#,AXAH5#,AXAL54202210-202310

GUAM,SAIPAN SPEC

main86742-78010iAXAL54..M202310

DATA COMMUNICATION MODULE-WITHOUT

main86742-78010iAXAL54..M202210-202310

AMERICAN SAMOA SPEC

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

10 parts on this diagram · 3 diagrams in section
