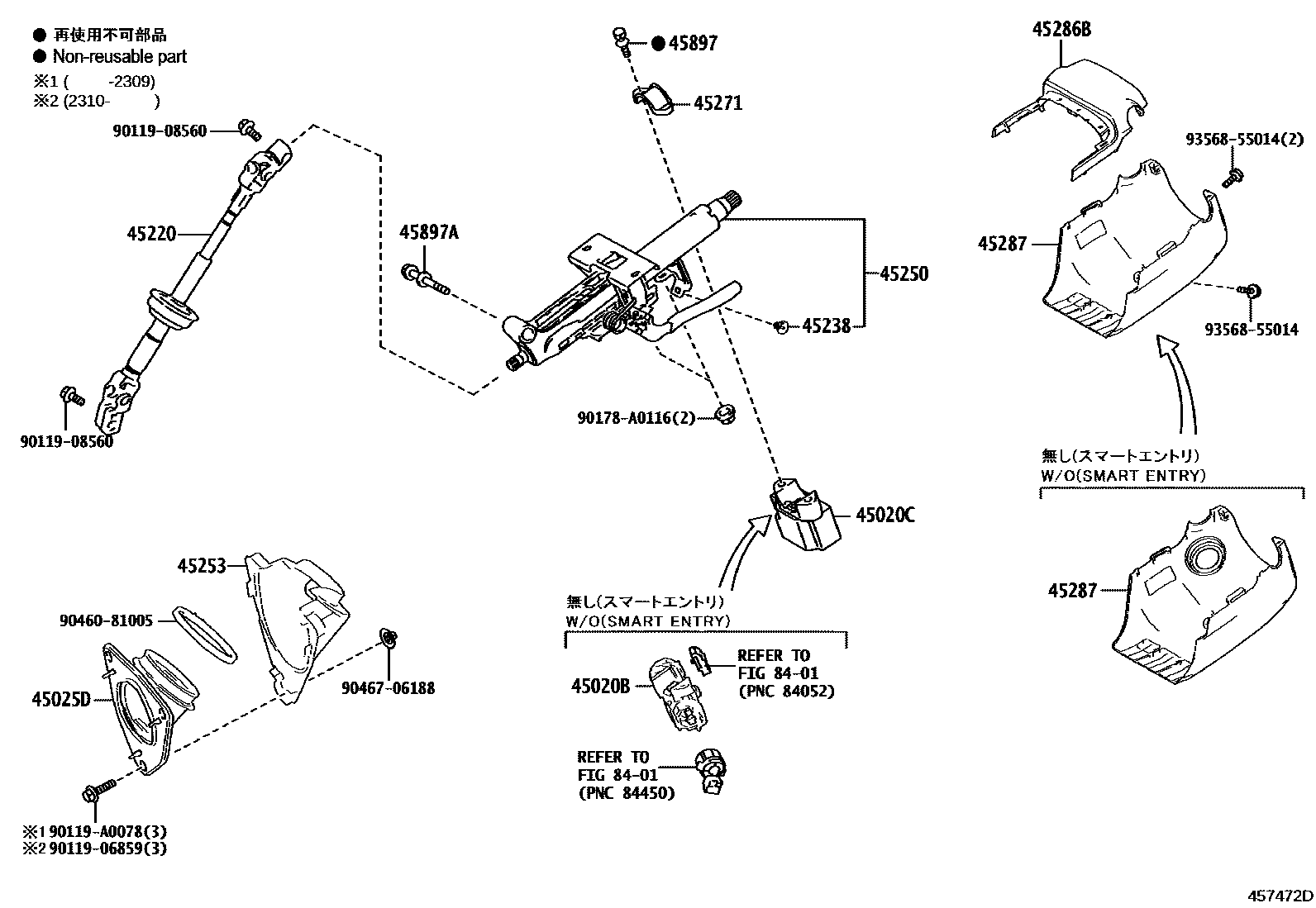

Toyota RAV4 (JPP) — STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-33180iAXAA5#,AXAH54,AXAL54..X¥12,000201811-202310

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33240iAXAA5#,AXAH54,AXAL54..G,M,V¥13,500201811-202112

KEY PLATE-SMART ENTRY(PUSH START)2

main45020-33240iAXAH52¥13,500202008-202210

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42090iAXAA5#,AXAH5#,AXAL54¥2,750201811-202310

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42010iAXAA5#,AXAH5#,AXAL54201811-202310

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXAA5#,AXAH5#,AXAL54¥70201811-202310

45250COLUMN ASSY, STEERING

main45250-42430iAXAA5#,AXAH54,AXAL54..X201811-202310

main45250-42440iAXAA5#,AXAH5#,AXAL54..G,M,P,S,V202008-202310

main45250-42440iAXAA5#,AXAH54,AXAL54..X201811-202007

KEY PLATE-SMART ENTRY(PUSH START)2

45253COVER, STEERING COLUMN HOLE

main45253-42030iAXAA5#,AXAH5#,AXAL54¥720201811-202310

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iAXAA5#,AXAH54,AXAL54..G,M,V¥440201811-202310

45286BCOVER, STEERING COLUMN, UPR

main45286-33290-C0iAXAA5#,AXAH54,AXAL54..V,X201811-202310

BLACK,TRIM2#,4#

main45286-33290-C0iAXAA5#,AXAH54,AXAL54..V,X202112-202310

BLACK,TRIM2#

main45286-33290-C0iAXAH54,AXAL54..P,S201811-202310

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-33220-C0iAXAA5#,AXAH54,AXAL54..X202005-202310

BLACK,TRIM2#,4#

main45024-33220-C0iAXAA5#,AXAH54..X201811-202007

BLACK,TRIM1#,2#,4#

main45024-33230-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202310

BLACK,TRIM1#,2#,4#

main45024-33230-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202007

KEY PLATE-SMART ENTRY(PUSH START)2,BLACK,TRIM1#,2#,4#

main45024-33230-C0iAXAA5#,AXAH54..X201811-202310

BLACK,TRIM2#,4#

main45024-33230-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iAXAA5#,AXAH5#,AXAL54¥210201811-202310

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXAA5#,AXAH5#,AXAL54¥190201811-202310

8401

9011906859

main90119-06859¥130

9011908560

main90119-08560¥110

90119A0078

main90119-A0078¥80

90178A0116

main90178-A0116

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

9356855014

main93568-55014¥70

20 parts on this diagram · 1 diagram in section
