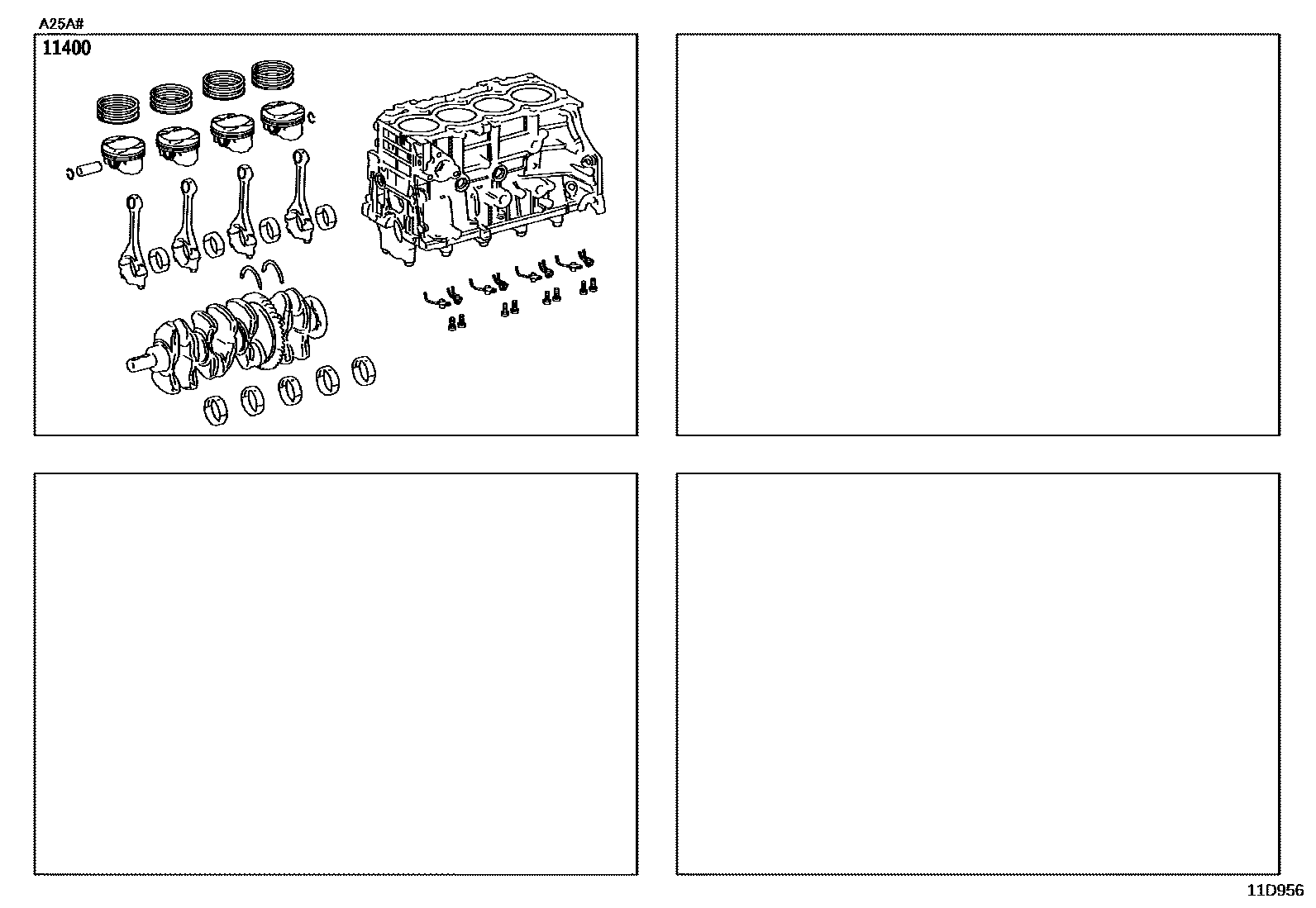

Toyota RAV4 (JPP) — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-25051iA25AFKS..AXAA54..V202112-202204

W/O(PNC 12211)

main11400-25130iA25AFXS..AXAH5#,AXAL54202008-202112

main11400-25130iA25AFXS..AXAH5#,AXAL54201811-202007

main11400-25130iA25AFXS..AXAH5#,AXAL54202112-202204

W/O(PNC 12211)

main11400-25140iA25AFKS..AXAA52..M;A25AFKS..AXAA54..M,X202210-202310

main11400-25140iA25AFKS..AXAA5#201811-202007

main11400-25140iA25AFKS..AXAA54..G;A25AFKS..AXAA52..G,X202112-202204

W/O(PNC 12211)

main11400-25140iA25AFKS..AXAA52..M;A25AFKS..AXAA54..M,X202008-202210

main11400-25140iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V202008-202112

main11400-25140iA25AFKS..AXAA52;A25AFKS..AXAA54..M,X202310-202402

main11400-2E010iA25AFXS..AXAH5#,AXAL54¥273,000202204-202210

W(PNC 12211)

main11400-2E010iA25AFXS..AXAH5#,AXAL54¥273,000202310

W(PNC 12211)

main11400-2E010iA25AFXS..AXAH5#,AXAL54¥273,000202210-202310

W(PNC 12211)

main11400-2E020iA25AFKS..AXAA54..V202210-202310

W(PNC 12211)

main11400-2E020iA25AFKS..AXAA54..V202204-202210

W(PNC 12211)

main11400-2E020iA25AFKS..AXAA54..V202310

main11400-2E030iA25AFKS..AXAA52;A25AFKS..AXAA54..M,X202403

main11400-2E030iA25AFKS..AXAA54..G;A25AFKS..AXAA52..G,X202204-202210

W(PNC 12211)

main11400-2E030iA25AFKS..AXAA54..G;A25AFKS..AXAA52..G,X202210-202310

W(PNC 12211)

main11400-2E030iA25AFKS..AXAA54..G202310

W(PNC 12211)

1 parts on this diagram · 1 diagram in section
