Toyota RAV4 (JPP) — SHIFT LEVER & RETAINER

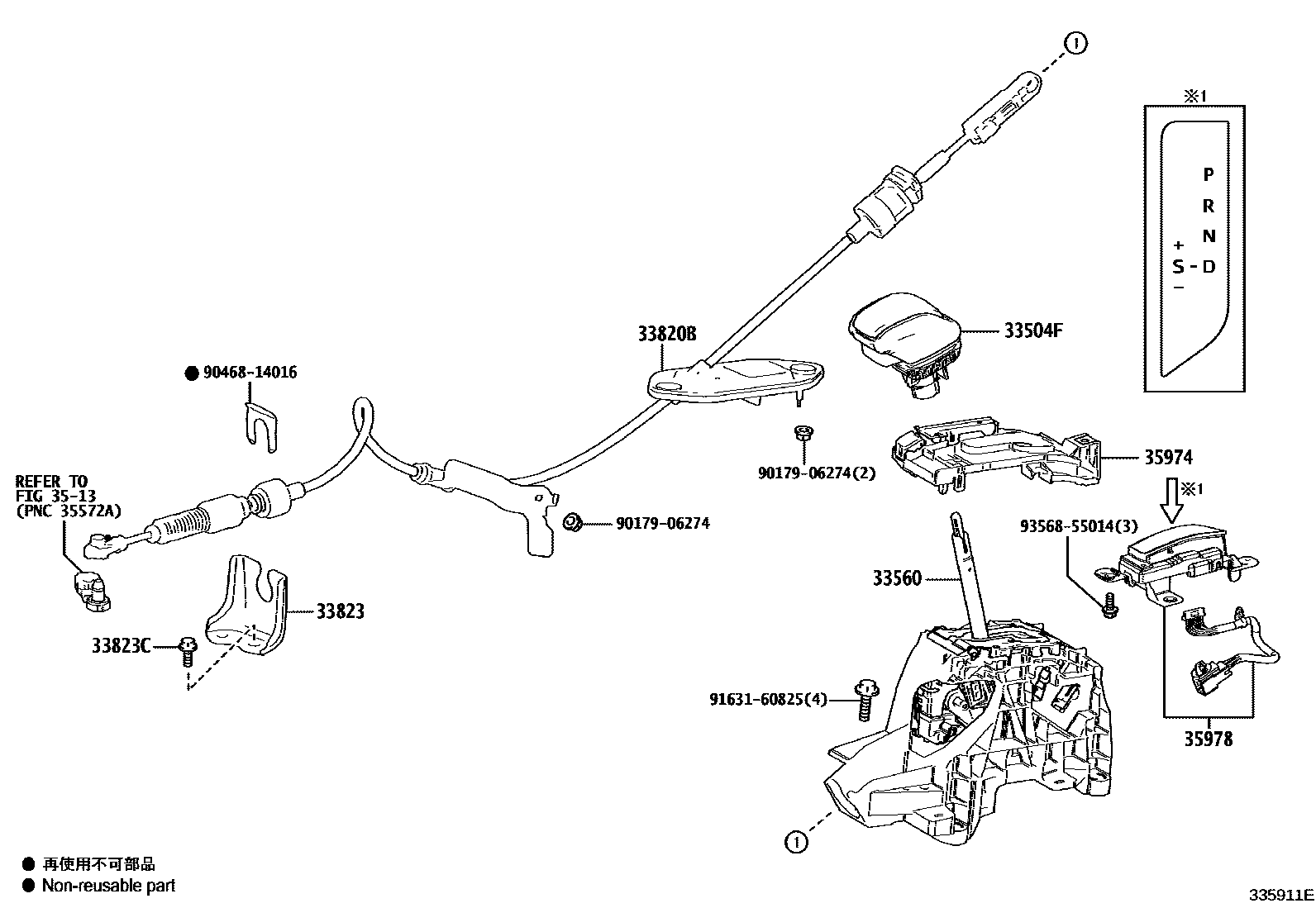

Parts diagram
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-42130-C0i202008-202210
BLACK,TRIM1#,2#,4#
main33504-42130-C0i201811-202007
BLACK,TRIM2#,4#
main33504-42130-C0i201811-202007
BLACK,TRIM1#,2#,4#
main33504-42130-C0i202310
BLACK,TRIM2#,4#
main33504-42130-C0i202310
BLACK,TRIM1#,2#,4#
main33504-42130-C0i202008-202112
BLACK,TRIM2#,4#
main33504-42130-C0i202008-202112
BLACK,TRIM1#,2#,4#
main33504-42130-C0i202210-202310
BLACK,TRIM2#,4#
main33504-42130-C0i202210-202310
BLACK,TRIM1#,2#,4#
main33504-42130-C0i202008-202210
BLACK,TRIM2#,4#
main33542-40050-C0i202112-202210
BLACK,TRIM2#,4#
main33542-40050-C0i202112-202210
BLACK,TRIM1#,2#,4#
main33542-40050-C0i202112-202210
BLACK,TRIM2#
main33542-40050-C0i202112-202210
KOREA SPEC&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202112-202210
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO,STEERING HEATER),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202210-202310
BLACK,TRIM2#,4#
main33542-40050-C0i202210-202310
BLACK,TRIM1#,2#,4#
main33542-40050-C0i202210-202310
BLACK,TRIM2#
main33542-40050-C0i202210-202310
KOREA SPEC&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202210-202310
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202210-202310
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO,STEERING HEATER),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202310
BLACK,TRIM2#,4#
main33542-40050-C0i202310
BLACK,TRIM1#,2#,4#
main33542-40050-C0i202310
BLACK,TRIM2#
main33542-40050-C0i202310
KOREA SPEC&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202310
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202310
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO,STEERING HEATER),BLACK,TRIM1#,2#,4#
main33542-40050-C0i201811-202007
BLACK,TRIM1#,2#,4#
main33542-40050-C0i201811-202007
KOREA SPEC&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i201811-202007
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
main33542-40050-C0i201811-202007
STEERING WHEEL-LEATHER, WITH(DECO,STEERING HEATER),BLACK,TRIM2#,4#
main33542-40050-C0i201811-202007
STEERING WHEEL-LEATHER, WITH(DECO,STEERING HEATER),BLACK,TRIM1#,2#,4#
main33542-40050-C0i202008-202210
BLACK,TRIM1#,2#,4#
main33542-40050-C0i202008-202210
XLE PACKAGE&STEERING WHEEL-LEATHER, WITH(DECO),BLACK,TRIM1#,2#,4#
33560UNIT ASSY, SHIFT LOCK CONTROL
main33560-12640i202310
main33560-12640i202210-202310
main33560-12640i202008-202210
main33560-12640i201811-202007
main33560-12650i201811-202007
KEY PLATE-SMART ENTRY(PUSH START)2
main33560-12650i202008-202210
main33560-12650i202210-202310
main33560-12650i202310
33820BCABLE ASSY, TRANSMISSION CONTROL
main33820-42460i¥12,000201811-202007
main33820-42460i¥12,000202008-202210
main33820-42460i¥12,000202210-202310
main33820-42460i¥12,000202310
main33820-42480i¥14,700201811-202007
main33820-42480i¥14,700202008-202210
main33820-42480i¥14,700202210-202310
main33820-42480i¥14,700202310
main33820-42490i¥14,700202210-202310
main33820-42490i¥14,700201902-202007
main33820-42490i¥14,700202008-202210
main33820-42490i¥14,700202310
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
main33823-33070i¥510201811-202007
main33823-33070i¥510202008-202210
main33823-33070i¥510202210-202310
main33823-33070i¥510202310
main33823-42050i¥1,150202210-202310
main33823-42050i¥1,150201811-202007
main33823-42050i¥1,150202310
main33823-42050i¥1,150202008-202210
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
main91671-80820i¥80201811-202007
main91671-80820i¥80202310
main91671-80820i¥80202210-202310
main91671-80820i¥80202008-202210
3513
35974HOUSING, POSITION INDICATOR, LOWER
main35974-42040i201811-202007
main35974-42040i202008-202210
main35974-42040i202210-202310
main35974-42040i202310
35978INDICATOR, SHIFT POSITION
main35978-42010i201811-202007
main35978-42010i202008-202210
main35978-42010i202210-202310
main35978-42010i202310
main35978-42050i202310
main35978-42050i201811-202007
main35978-42050i202210-202310
main35978-42050i202008-202210
9017906274
main90179-06274¥70
9046814016
main90468-14016¥160
9163160825
main91631-60825¥80
9356855014
main93568-55014¥70

12 parts on this diagram · 3 diagrams in section
