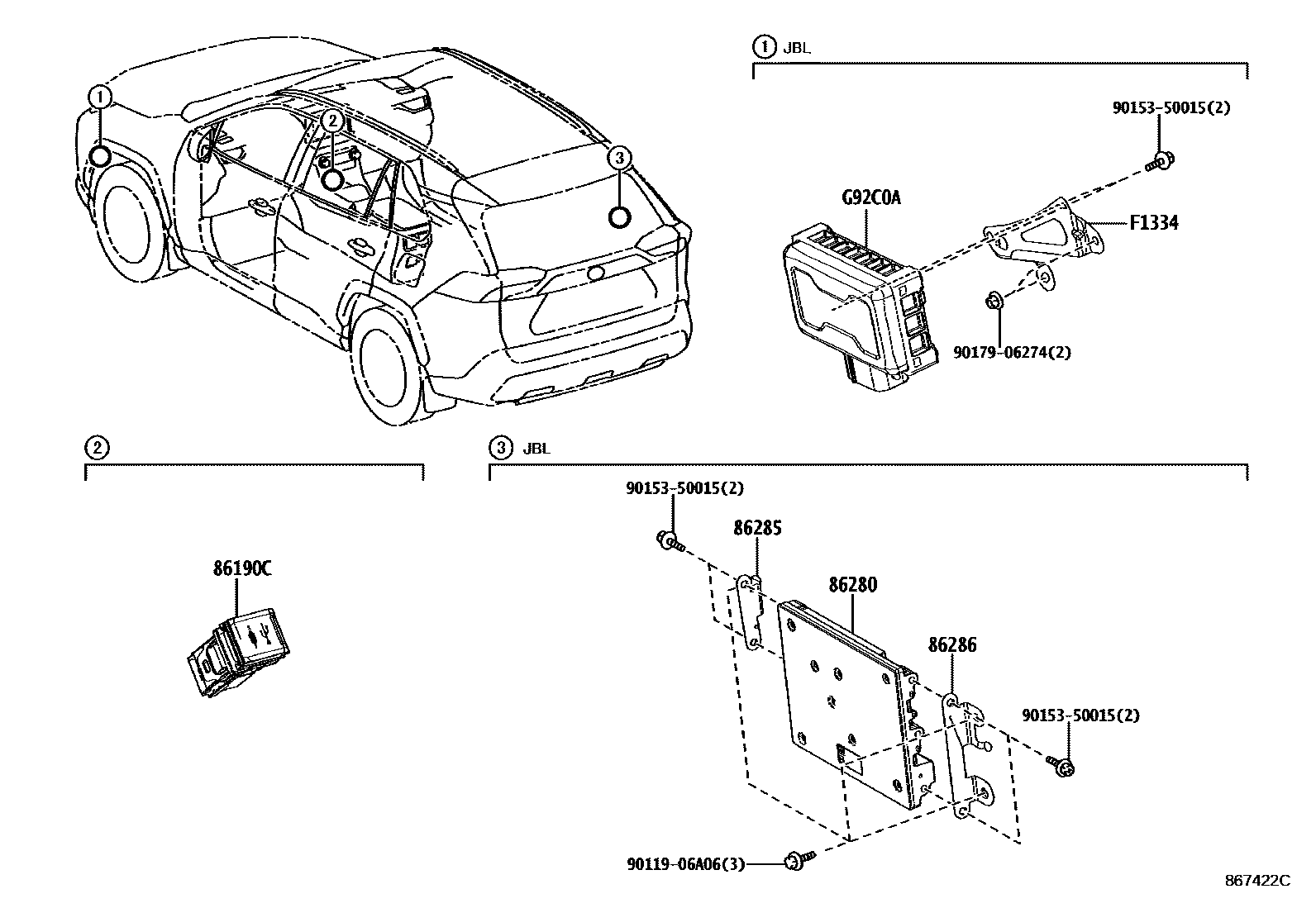

Toyota RAV4 (JPP) — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12040iAXAA5#,AXAH5#¥7,200201811-201910

main86190-34010iAXAA5#,AXAH5#,AXAL54¥3,780202210-202310

main86190-42030iAXAA5#,AXAH5#,AXAL54¥5,000201910-202009

sub86190-42031¥4,160

main86190-42031iAXAA5#,AXAH5#,AXAL54¥4,160202009-202210

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-42060iAXAA5#,AXAH54,AXAL54..M,P,V202112-202210

AUDIO-JBL 9INCH XM

main86280-42060iAXAH54,AXAL54..P202112-202210

AUDIO-6SPEAKER 8INCH

main86280-42060iAXAH54,AXAL54..P202112-202210

AUDIO-6SPEAKER 7INCH DVD

main86280-42100iAXAA5#,AXAH54,AXAL54..G202210-202310

KOREA SPEC

main86280-42100iAXAA5#,AXAH54,AXAL54..G202210-202310

AUDIO-JBL 10.5INCH XM

86285BRACKET, AMPLIFIER, NO.1

main86285-42040iAXAA5#,AXAH54,AXAL54..G202210-202310

AUDIO-JBL 10.5INCH XM

main86285-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-6SPEAKER 8INCH

main86285-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-6SPEAKER 7INCH DVD

main86285-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-JBL 9INCH XM

main86285-42040iAXAA5#,AXAH54,AXAL54..G202210-202310

KOREA SPEC

86286BRACKET, AMPLIFIER, NO.2

main86286-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-6SPEAKER 8INCH

main86286-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-6SPEAKER 7INCH DVD

main86286-42040iAXAA5#,AXAH54,AXAL54..G202112-202210

AUDIO-JBL 9INCH XM

main86286-42040iAXAA5#,AXAH54,AXAL54..G202210-202310

KOREA SPEC

main86286-42040iAXAA5#,AXAH54,AXAL54..G202210-202310

AUDIO-JBL 10.5INCH XM

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-42020

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9 parts on this diagram · 3 diagrams in section
