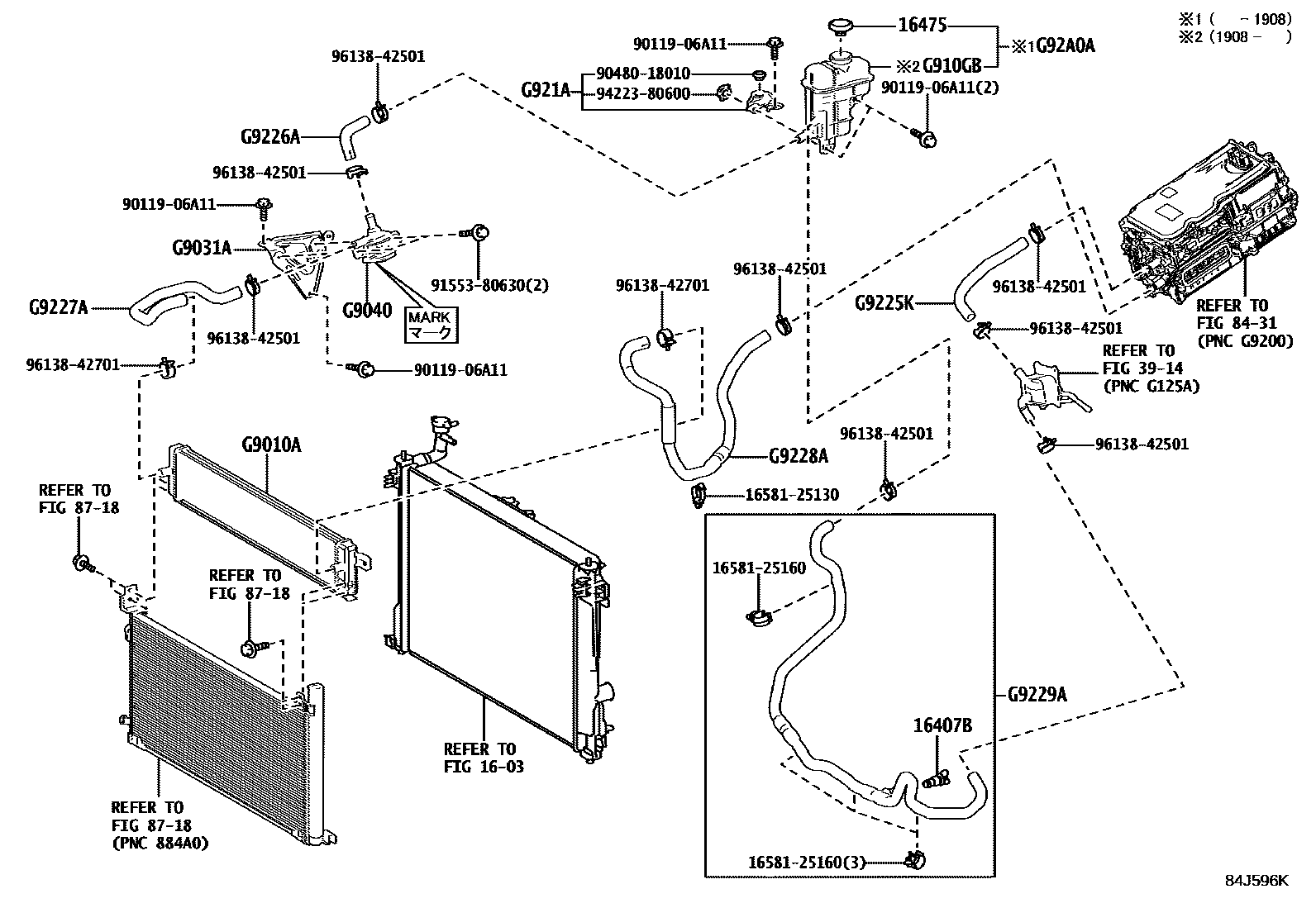

Toyota RAV4 (JPP) — INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXAH5#,AXAL54¥380201811-202112

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXAH5#,AXAL54¥1,200201811-202310

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAH5#,AXAL54201811-202112

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAXAH5#,AXAL54201811-202112

mainG914178010iAXAH5#,AXAL54202112-202310

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042010iAXAH5#,AXAL54201811-202007

mainG904042010iAXAH5#,AXAL54202008-202112

MARK=G

mainG904048050iAXAH5#,AXAL54202112-202210

MARK=T

mainG904048050iAXAH5#,AXAL54202210-202310

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAXAH5#,AXAL54201908-202310

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAXAH5#,AXAL54201811-202310

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542010iAXAH5#,AXAL54201811-202310

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAXAH5#,AXAL54201811-202112

mainG922642020iAXAH5#,AXAL54202112-202310

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAXAH5#,AXAL54201811-202112

mainG922778010iAXAH5#,AXAL54202112-202310

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842030iAXAH5#,AXAL54201811-202112

mainG922842050iAXAH5#,AXAL54202112-202310

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAXAH5#,AXAL54201811-202007

mainG922942020iAXAH5#,AXAL54202008-202112

REFER TO PNC 86466D

mainG922942040iAXAH5#,AXAL54202112-202210

REFER TO PNC 86466D

mainG922942040iAXAH5#,AXAL54202210-202310

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H042020iAXAH5#201811-201908

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9422380600

main94223-80600¥70

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200
