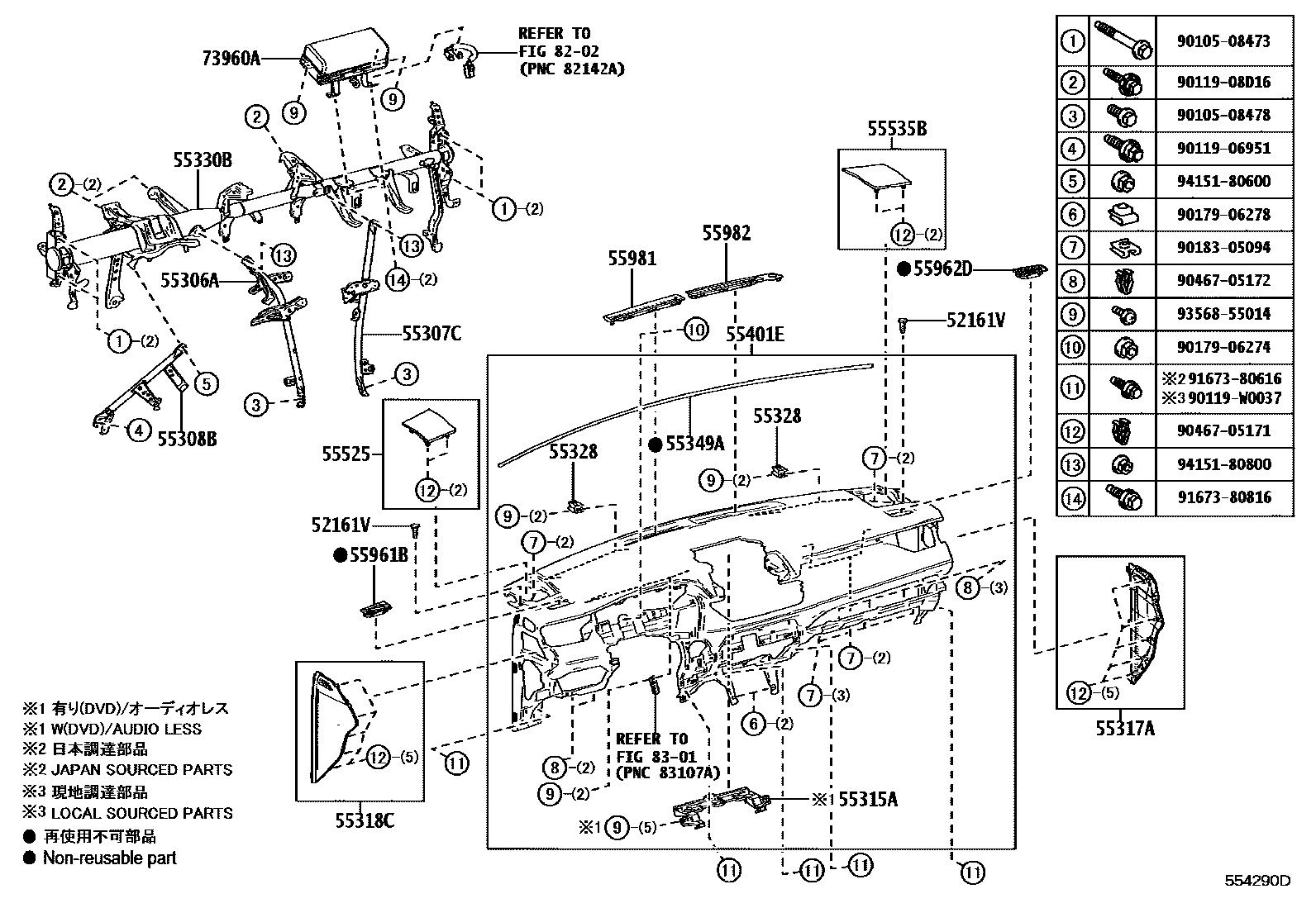

Toyota RAV4 (JPP) — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iAXAA5#,AXAH5#,AXAL54¥120201811-202310

sub52161-0K040¥120

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42150iAXAA5#,AXAH5#,AXAL54201811-202310

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42090iAXAA5#,AXAH5#,AXAL54201811-202310

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-42070iAXAA5#,AXAH5#,AXAL54201811-202310

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-42070iAXAH54..G,M¥1,630201811-202210

AUDIO-6SPEAKER 7INCH DVD

55317APANEL, INSTRUMENT SIDE, RH

main55317-42070-C0iAXAH54,AXAL54..P,S201811-202310

BLACK,TRIM1#,2#,4#

main55317-42070-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM2#,4#

main55317-42070-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-42030-C0iAXAH54,AXAL54..P,S201811-202310

BLACK,TRIM1#,2#,4#

main55318-42030-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202310

BLACK,TRIM2#,4#

main55318-42030-C0iAXAA5#,AXAH5#,AXAL54..G,M202112-202310

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iAXAA5#,AXAH5#,AXAL54¥340201811-202310

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-42280iAXAA5#,AXAH5#,AXAL54201811-202310

55349ACUSHION, INSTRUMENT PANEL

main55349-42050iAXAA5#,AXAH5#,AXAL54¥1,090201811-202310

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-42010-20iAXAA5#..G,M,X;AXAH54,AXAL54..G,X201811-202310

S BLACK/S BLACK/LT.GRAY,TRIM2#

sub55401-42180

main55401-42010-20iAXAA5#..G,M,X;AXAH54,AXAL54..G,X201902-202210

S BLACK/S BLACK/LT.GRAY,TRIM20

sub55401-42180

main55401-42010-21iAXAA54..V201811-202310

S BLACK/S BLACK/ORANGE,TRIM2#

sub55401-42180

main55401-42010-22iAXAA5#,AXAH54,AXAL54..G,M201811-202310

S BLACK/LT GRAY/CAMEL,TRIM1#

sub55401-42180

main55401-42010-23iAXAA54..V201811-202310

S BLACK/LT.GRAY/ORANGE,TRIM4#

sub55401-42180

main55401-42010-C8iAXAA5#,AXAH5#,AXAL54..G,M,X201811-202310

S BLACK/G BEIGE/CAMEL,TRIM4#

sub55401-42180

main55401-42010-C9iAXAH54,AXAL54..M201902-202210

S BLACK/S BLACK/BLUE,TRIM20

sub55401-42180

main55401-42010-C9iAXAH54,AXAL54..P,S202112-202310

S BLACK/S BLACK/BLUE,TRIM2#

sub55401-42180

main55401-42020-20iAXAH54..G,M201811-202210

AUDIO-6SPEAKER 7INCH DVD,S BLACK/S BLACK/LT.GRAY,TRIM2#

main55401-42020-20iAXAH54..G,M201811-202210

S BLACK/S BLACK/LT.GRAY,TRIM2#

main55401-42020-22iAXAH52201811-202210

AUDIO-6SPEAKER 7INCH DVD,S BLACK/LT.GRAY/CAMEL,TRIM1#

main55401-42020-22iAXAH54..G,M201811-202210

S BLACK/LT.GRAY/CAMEL,TRIM1#

main55401-42020-C8iAXAH52201811-202210

AUDIO-6SPEAKER 7INCH DVD,S BLACK/G BEIGE/CAMEL,TRIM4#

main55401-42020-C8iAXAH52201811-202210

S BLACK/G BEIGE/CAMEL,TRIM4#

55525COVER, SPEAKER HOLE, NO.1

main55525-42030-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

main55525-42030-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM1#,2#,4#

main55525-42030-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM2#,4#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-42030-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM1#,2#,4#

main55535-42030-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM2#,4#

main55535-42030-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-42010-C0iAXAH54,AXAL54..P,S201811-202310

BLACK,TRIM2#,4#

main55961-42010-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

main55961-42010-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202310

BLACK,TRIM1#,2#,4#

55962DNOZZLE, SIDE DEFROSTER, NO.2

main55962-42010-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM1#,2#,4#

main55962-42010-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202310

BLACK,TRIM2#,4#

main55962-42010-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-42030-C0iAXAH54,AXAL54..P,S201811-202310

BLACK,TRIM2#,4#

main55981-42030-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202310

BLACK,TRIM1#,2#,4#

main55981-42030-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-42030-C0iAXAA5#,AXAH54,AXAL54..V,X201811-202310

BLACK,TRIM2#,4#

main55982-42030-C0iAXAA5#,AXAH5#,AXAL54..G,M201811-202310

BLACK,TRIM1#,2#,4#

main55982-42030-C0iAXAH54,AXAL54..P,S202112-202310

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42100iAXAA5#,AXAH5#,AXAL54201811-202310

8202

8301

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9011906951

main90119-06951¥80

9011908D16

main90119-08D16¥100

90119W0037

main90119-W0037¥60

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

35 parts on this diagram · 4 diagrams in section
