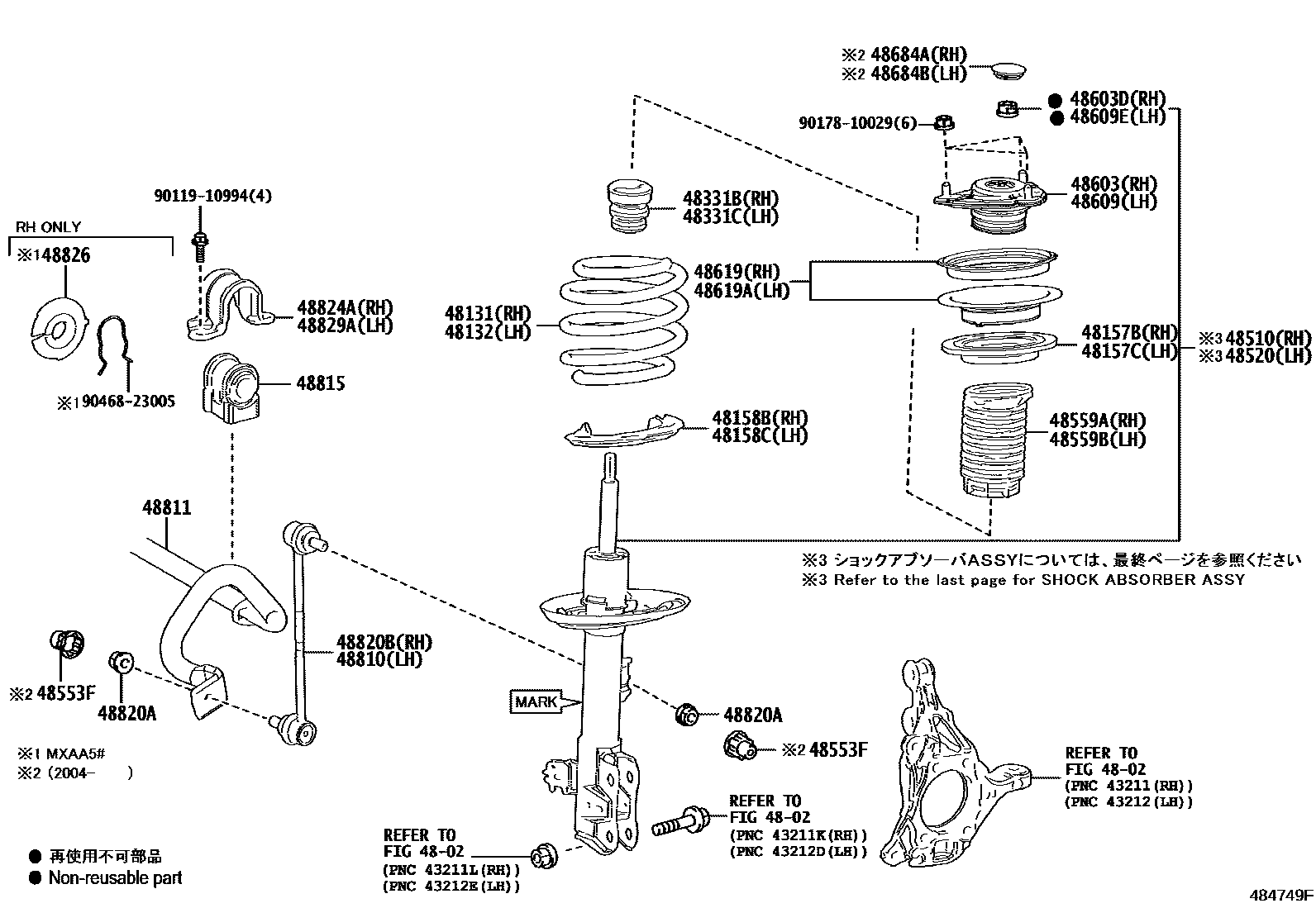

Toyota RAV4 (JPP) — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-42A40iAXAA54..G,V¥5,000201811-202310

main48131-42A60iAXAA52..M,X¥5,000201811-202310

main48131-42A80iAXAA52..M,X¥5,000201811-202112

main48131-42A90iAXAH5#,AXAL54..G,M,X¥5,000201811-202310

main48131-42B10iAXAH54,AXAL54..P,S202112-202310

48132SPRING, FRONT COIL, LH

main48131-42A40iAXAA54..G,M,V¥5,000201811-202310

main48131-42A60iAXAA52..G;AXAA54..M,X¥5,000201811-202310

main48131-42A80iAXAA52..M,X¥5,000201811-202112

main48131-42A90iAXAH5#,AXAL54..G,M,X¥5,000201811-202310

main48131-42B10iAXAH54,AXAL54..P,S202112-202310

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iAXAA5#,AXAH5#,AXAL54¥740201811-202310

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iAXAA5#,AXAH5#,AXAL54¥740201811-202310

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAXAA5#,AXAH5#,AXAL54¥950201811-202310

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAXAA5#,AXAH5#,AXAL54¥950201811-202310

48331BBUMPER, FRONT SPRING, RH

main48331-33071iAXAA5#,AXAH5#,AXAL54¥750201811-202007

main48331-33101iAXAA5#,AXAH5#,AXAL54¥530202210-202310

main48331-42140iAXAA5#,AXAH5#,AXAL54¥540202008-202210

48331CBUMPER, FRONT SPRING, LH

main48331-33071iAXAA5#,AXAH5#,AXAL54¥750201811-202007

main48331-33101iAXAA5#,AXAH5#,AXAL54¥530202210-202310

main48331-42140iAXAA5#,AXAH5#,AXAL54¥540202008-202210

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A72iAXAA5#201811-202310

MARK 48510-42690

main48510-80A72iAXAA5#202008-202210

MARK 48510-42690,REFER TO LAST PAGE

main48510-80A73iAXAH54,AXAL54..G,M,X202008-202210

MARK 48510-42700,REFER TO LAST PAGE

main48510-80A73iAXAH54,AXAL54201902-202310

MARK 48510-42700

main48510-80A75iAXAH52¥16,800201811-202310

MARK 48510-42730,KOREA SPEC

main48510-80A75iAXAH52¥16,800201811-202310

MARK 48510-42730

main48510-80A75iAXAH52¥16,800202008-202210

MARK 48510-42730,REFER TO LAST PAGE

main48510-80A75iAXAH52¥16,800202008-202210

MARK 48510-42730,KOREA SPEC,REFER TO LAST PAGE

main48510-80A76iAXAH54,AXAL54..P,S202210-202310

MARK 48510-42810

main48510-80A76iAXAH54,AXAL54..P,S202112-202210

MARK 48510-42810,REFER TO LAST PAGE

main48510-8Z375iAXAA5#202103-202204

MARK 48510-0R170,REFER TO LAST PAGE

main48510-8Z376iAXAH54,AXAL54..G,M,X202103-202204

MARK 48510-0R180,REFER TO LAST PAGE

main48510-8Z390iAXAH54..G,M¥18,200202103-202204

MARK 48510-0R240,REFER TO LAST PAGE

main48510-8Z390iAXAH54..G,M¥18,200202103-202204

MARK 48510-0R240,KOREA SPEC,REFER TO LAST PAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80632iAXAA5#202008-202210

MARK 48520-42690,REFER TO LAST PAGE

main48520-80632iAXAA5#201811-202310

MARK 48520-42690

main48520-80633iAXAH54,AXAL54..G,M,X201902-202310

MARK 48520-42700

main48520-80633iAXAH54,AXAL54..G,M,X202008-202210

MARK 48520-42700,REFER TO LAST PAGE

main48520-80635iAXAH54..G,M¥16,800201811-202310

MARK 48520-42730,KOREA SPEC

main48520-80635iAXAH52¥16,800201811-202310

MARK 48520-42730

main48520-80635iAXAH52¥16,800202008-202210

MARK 48520-42730,REFER TO LAST PAGE

main48520-80635iAXAH52¥16,800202008-202210

MARK 48520-42730,KOREA SPEC,REFER TO LAST PAGE

main48520-80636iAXAH54,AXAL54..P,S202210-202310

MARK 48520-42810

main48520-80636iAXAH54,AXAL54..P,S202112-202210

MARK 48520-42810,REFER TO LAST PAGE

main48520-8Z227iAXAA5#202103-202204

MARK 48520-0R170,REFER TO LAST PAGE

main48520-8Z228iAXAH54,AXAL54..G,M,X202103-202204

MARK 48520-0R180,REFER TO LAST PAGE

main48520-8Z242iAXAH54..G,M¥18,200202103-202204

MARK 48520-0R240,KOREA SPEC,REFER TO LAST PAGE

main48520-8Z242iAXAH52¥18,200202103-202204

MARK 48520-0R240,REFER TO LAST PAGE

48553FCAP

main48553-52030iAXAA5#,AXAH5#,AXAL54¥60202004-202310

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iAXAA5#,AXAH5#,AXAL54¥1,290201811-202310

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iAXAA5#,AXAH5#,AXAL54¥1,290201811-202310

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42070iAXAA5#,AXAH5#,AXAL54¥4,220201811-202310

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXAA5#,AXAH5#,AXAL54¥120201811-202310

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42070iAXAA5#,AXAH5#,AXAL54¥4,220201811-202310

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAXAA5#,AXAH5#,AXAL54¥120201811-202310

48619BEARING, STRUT MOUNTING, RH

main48619-42040iAXAA5#,AXAH5#,AXAL54¥4,100201811-202310

48619ABEARING, STRUT MOUNTING, LH

main48619-42040iAXAA5#,AXAH5#,AXAL54¥4,100201811-202310

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAXAA5#,AXAH5#,AXAL54¥140202004-202310

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAXAA5#,AXAH5#,AXAL54¥140202004-202310

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42040iAXAA5#,AXAH5#,AXAL54¥3,320201811-202310

48811BAR, STABILIZER, FRONT

main48811-42090iAXAA5#,AXAH5#,AXAL54¥9,300201811-202310

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33160iAXAA5#,AXAH5#,AXAL54¥990201811-202310

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iAXAA5#,AXAH5#,AXAL54¥100201811-202310

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42040iAXAA5#,AXAH5#,AXAL54¥3,320201811-202310

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-33040iAXAA5#,AXAH5#,AXAL54¥1,300201811-202310

48826PROTECTOR, FRONT STABILIZER BAR

main48826-42010iAXAA5#¥310201811-202310

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-33040iAXAA5#,AXAH5#,AXAL54¥1,300201811-202310

9011910994

main90119-10994¥190

9017810029

main90178-10029¥100

9046823005

main90468-23005¥160

33 parts on this diagram · 2 diagrams in section
