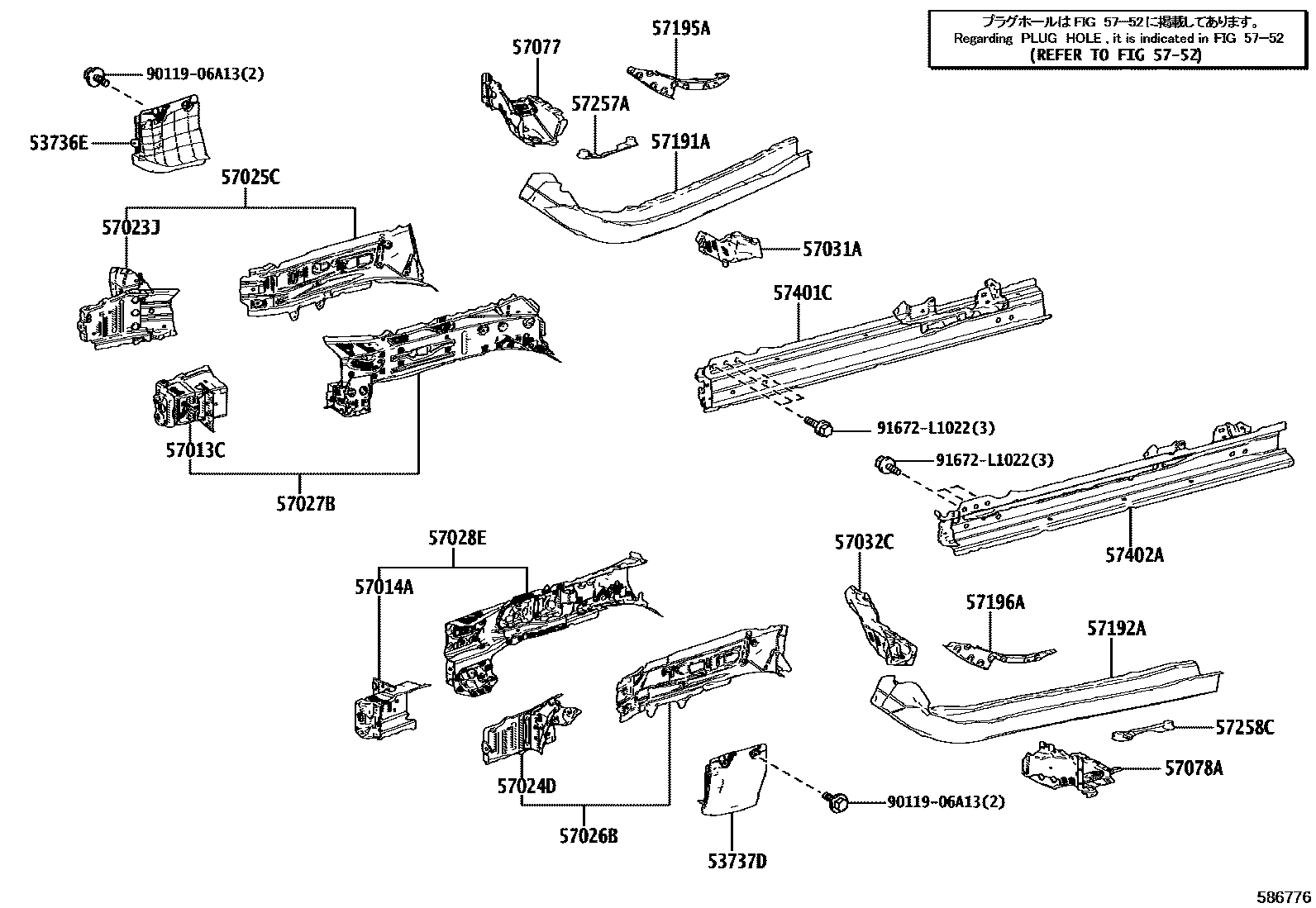

Toyota RAV4 (JPP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53736ESEAL, FRONT FENDER APRON, RH
53737DSEAL, FRONT FENDER APRON, LH
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57023JMEMBER SUB-ASSY, REAR SIDE, RH
57024DMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028EBRACKET SUB-ASSY, CONVERTER SUPPORT
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57077BOX SUB-ASSY, TORQUE, FRONT RH
57078ABOX SUB-ASSY, TORQUE, FRONT LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
5752
9011906A13
91672L1022
25 parts on this diagram · 3 diagrams in section
