Toyota RAV4 (JPP) — FRONT FENDER APRON & DASH PANEL

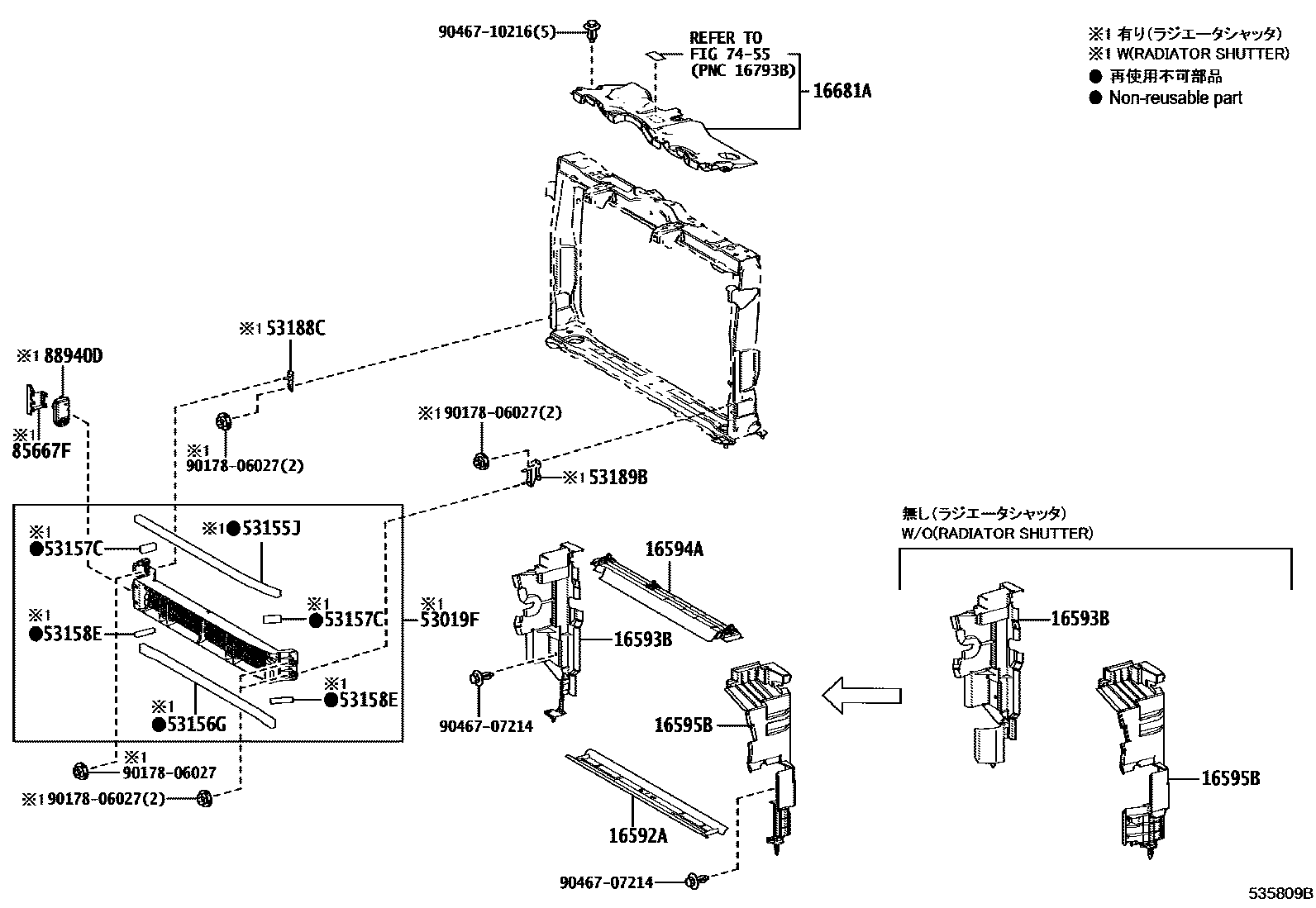

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1AIR GUIDE 0004 1AIR GUIDE 0005 1RADIATOR SUPPORT & FENDER APR0006 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010iA25AFKS..AXAA5#¥1,830201811-202310

main16592-25030iA25AFXS..AXAH5#¥5,100201811-202003

sub16592-25040¥3,610

main16592-25040iA25AFXS..AXAH5#,AXAL54¥3,610202004-202310

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25110iA25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54201811-202112

main16593-25120iA25#..AXAA5#,AXAH52..M,X¥4,240201811-202112

main16593-25280iA25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54¥3,450202112-202310

main16593-25290iA25#..AXAA5#,AXAH52..M,X¥3,740202112-202310

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25#..AXAA5#,AXAH5#,AXAL54¥2,380201811-202112

main16594-25040iA25#..AXAA5#,AXAH5#,AXAL54¥1,540202112-202310

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25100iA25AFXS..AXAH54,AXAL54201902-202112

main16595-25110iA25#..AXAA5#,AXAH52..M,X¥3,780201811-202112

main16595-25120iA25AFKS..AXAA5#..G,V201811-202112

main16595-25270iA25AFKS..AXAA5#..G,V;A25AFXS..AXAH54,AXAL54¥3,370202112-202310

main16595-25280iA25#..AXAA5#,AXAH52..M,X¥3,710202112-202310

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25010iA25AFKS..AXAA5#¥3,850201811-202310

main16681-25020iA25AFXS..AXAH5#,AXAL54¥3,850201811-202310

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-42010iAXAA5#..G,V201811-202112

main53019-42030iAXAH54,AXAL54201902-202112

main53019-42050iAXAA5#..G,V;AXAH54,AXAL54202112-202310

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-42060iAXAA5#..G,V;AXAH54,AXAL54201811-202112

main53155-48130iAXAA5#..G,V;AXAH54,AXAL54202112-202310

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-42040iAXAH54,AXAL54201902-202112

main53156-42050iAXAA5#..G,V201811-202112

main53156-42070iAXAA5#..G,V202112-202310

main53156-48060iAXAH54,AXAL54202112-202310

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-42020iAXAA5#..G,V;AXAH54,AXAL54201811-202112

main53157-42050iAXAA5#..G,V;AXAH54,AXAL54202112-202310

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-42010iAXAA5#..G,V;AXAH54,AXAL54201811-202112

53188CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-42020iAXAA5#..G,V;AXAH54,AXAL54201811-202112

53189BBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-42010iAXAA5#..G,V;AXAH54,AXAL54201811-202112

7455

85667FCOVER, MOTOR

main85667-42010iAXAA5#..G,V;AXAH54,AXAL54¥890201811-202112

88940DACTUATOR ASSY, SWING GRILLE

main88940-12010iAXAA5#..G,V201811-202007

main88940-12011iAXAA5#..G,V202008-202112

sub88940-12012

main88940-12040iAXAH54,AXAL54201902-202007

main88940-48010iAXAH54,AXAL54202008-202112

sub88940-12061

9017806027

main90178-06027¥60

9046707214

main90467-07214¥70

9046710216

main90467-10216¥100

18 parts on this diagram · 6 diagrams in section
