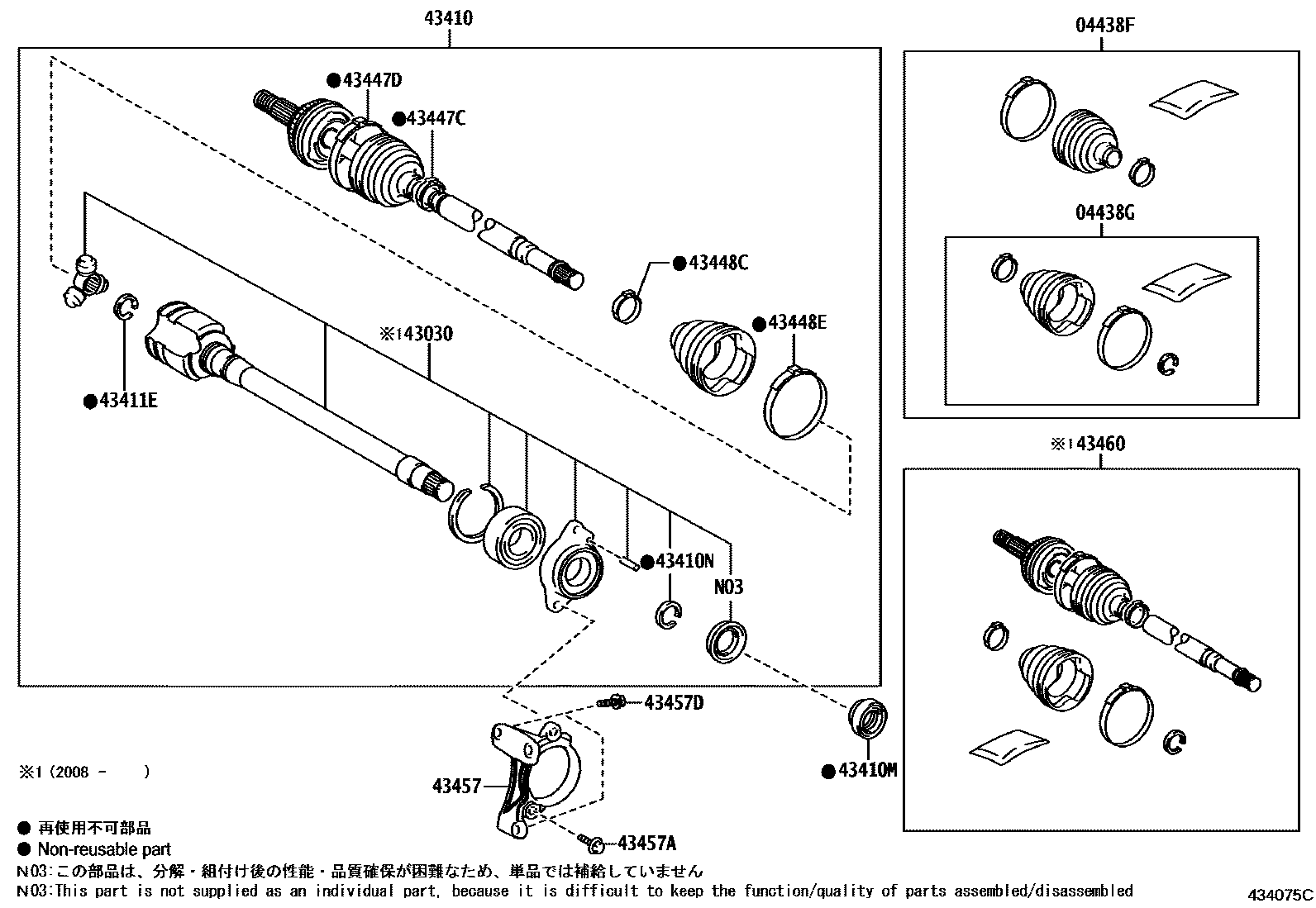

Toyota RAV4 (JPP) — FRONT DRIVE SHAFT

0001 1RH (W/O DRIVE SHAFT DAMPER) 0002 1RH (W/ DRIVE SHAFT DAMPER) 0003 1RH (W/O DRIVE SHAFT DAMPER) 0004 1RH(W/ DRIVE SHAFT DAMPER) 0005 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33120iAXAA52¥6,700202101-202310

W/DAMPER

main04427-42170iAXAH5#,AXAL54¥7,500202008-202307

W/O DAMPER

sub04427-42171¥6,700

main04427-42170iAXAH5#,AXAL54¥7,500201811-202007

sub04427-42171¥6,700

main04427-42171iAXAH5#,AXAL54¥6,700202308-202310

W/O DAMPER

main04427-42180iAXAA5#¥6,700201811-202007

main04427-42180iAXAA5#¥6,700202008-202101

W/O DAMPER

main04427-42230iAXAA54202101-202310

W/DAMPER

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33090iAXAA52¥4,150202101-202310

W/DAMPER

main04437-42080iAXAH5#,AXAL54¥4,150202008-202310

W/O DAMPER

main04437-42080iAXAA5#,AXAH5#,AXAL54¥4,150201811-202007

main04437-42080iAXAA54¥4,150202101-202210

W/DAMPER

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33060iAXAA52¥19,900202008-202210

main43030-33070iAXAH5#,AXAL54¥19,900202008-202210

main43030-42130iAXAA54..M,X202008-202210

main43030-42140iAXAA54..G,V202008-202210

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33350iAXAA52¥53,800202101-202310

W/DAMPER

main43410-42300iAXAH5#,AXAL54¥52,100201811-202310

main43410-42360iAXAA52201811-202007

main43410-42360iAXAA52202008-202101

W/O DAMPER

main43410-42371iAXAA54..M,X201811-202101

main43410-42381iAXAA54..G,V201811-202101

main43410-42400iAXAA54..M,X202101-202310

main43410-42410iAXAA54..G,V202101-202310

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXAA52¥470201811-202310

main90311-40049iAXAH5#,AXAL54¥470201811-202310

main90316-34001iAXAA54¥450201811-202310

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iAXAA54¥110201811-202310

main90520-38015iAXAA52,AXAH5#,AXAL54¥100201811-202310

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAXAA5#,AXAH5#,AXAL54¥40201811-202310

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXAA5#¥220201811-202310

main42345-42120iAXAH5#,AXAL54¥220201811-202310

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXAA5#¥340201811-202310

main42345-42110iAXAH5#,AXAL54¥350201811-202310

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iAXAA5#,AXAH5#,AXAL54¥400202310

main42345-33120iAXAA5#,AXAH5#,AXAL54¥260201811-202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iAXAA5#,AXAH5#,AXAL54¥1,480201811-202310

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAXAA52¥3,520201811-202310

main43457-33060iAXAH5#,AXAL54¥3,400201811-202310

main43457-42190iAXAA54¥3,240201811-202310

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iAXAH5#,AXAL54¥110201811-202310

*10-1.25PX22-19.5

main90105-10361iAXAH5#,AXAL54¥110201812-202310

*10-1.25PX22-19.5,(J)

main90105-W0214iAXAH5#,AXAL54¥100201812-202310

*10-1.25PX22-19.5,(L)

main90119-10461iAXAA54¥200201811-202310

*10-1.25PX19.8-8.3

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iAXAA54,AXAH5#,AXAL54¥100202112-202310

(J)

main90105-10381iAXAA5#,AXAH5#,AXAL54¥100201811-202210

main90105-W0215iAXAA54,AXAH5#,AXAL54202112-202310

(L)

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80465iAXAH5#,AXAL54¥31,600202008-202210

main43470-80466iAXAA5#¥31,600202008-202101

15 parts on this diagram · 5 diagrams in section
