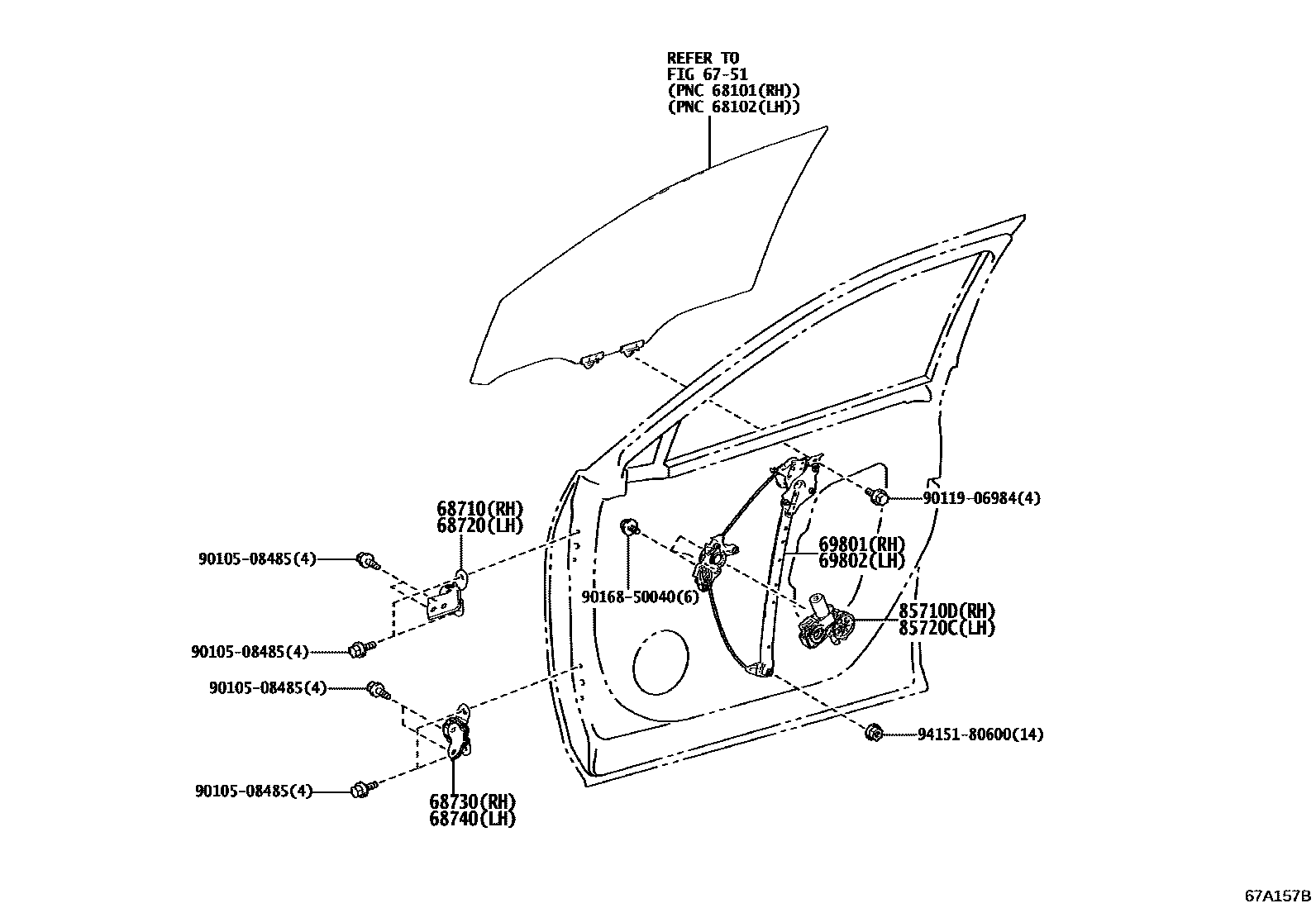

Toyota RAV4 (JPP) — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAXAA5#,AXAH5#,AXAL54¥2,050201811-202007

main68710-12151iAXAA5#,AXAH5#,AXAL54¥2,050202008-202210

main68710-12151iAXAA5#,AXAH5#,AXAL54¥2,050202210-202310

main68710-12151iAXAA5#,AXAH5#,AXAL54¥2,050202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAXAA5#,AXAH5#,AXAL54¥2,050201811-202007

main68720-12151iAXAA5#,AXAH5#,AXAL54¥2,050202008-202210

main68720-12151iAXAA5#,AXAH5#,AXAL54¥2,050202210-202310

main68720-12151iAXAA5#,AXAH5#,AXAL54¥2,050202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAXAA5#,AXAH5#,AXAL54¥2,240201811-202007

main68730-12120iAXAA5#,AXAH5#,AXAL54¥2,240202008-202210

main68730-12120iAXAA5#,AXAH5#,AXAL54¥2,240202210-202310

main68730-12120iAXAA5#,AXAH5#,AXAL54¥2,240202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAXAA5#,AXAH5#,AXAL54¥2,240201811-202007

main68740-12120iAXAA5#,AXAH5#,AXAL54¥2,240202008-202210

main68740-12120iAXAA5#,AXAH5#,AXAL54¥2,240202210-202310

main68740-12120iAXAA5#,AXAH5#,AXAL54¥2,240202310

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-42070iAXAA5#,AXAH5#¥6,100201811-202002

sub69801-42071¥5,100

main69801-42071iAXAA5#,AXAH5#,AXAL54¥5,100202003-202007

sub69801-42072¥4,560

main69801-42071iAXAA5#,AXAH5#,AXAL54¥5,100202008-202104

sub69801-42072¥4,560

main69801-42072iAXAA5#,AXAH5#,AXAL54¥4,560202105-202210

main69801-42072iAXAA5#,AXAH5#,AXAL54¥4,560202210-202310

main69801-42072iAXAA5#,AXAH5#,AXAL54¥4,560202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-42070iAXAA5#,AXAH5#¥6,100201811-202002

sub69802-42071¥5,100

main69802-42071iAXAA5#,AXAH5#,AXAL54¥5,100202003-202007

sub69802-42072¥4,560

main69802-42071iAXAA5#,AXAH5#,AXAL54¥5,100202008-202104

sub69802-42072¥4,560

main69802-42072iAXAA5#,AXAH5#,AXAL54¥4,560202105-202210

main69802-42072iAXAA5#,AXAH5#,AXAL54¥4,560202210-202310

main69802-42072iAXAA5#,AXAH5#,AXAL54¥4,560202310

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iAXAA5#,AXAH5#,AXAL54¥20,900202112-202210

main85710-12530iAXAA5#,AXAH5#,AXAL54¥20,900202210-202310

main85710-12530iAXAA5#,AXAH5#,AXAL54¥20,900202310

main85710-42140iAXAA5#,AXAH5#,AXAL54¥23,000202008-202111

main85710-42140iAXAA5#,AXAH5#,AXAL54¥23,000201811-202007

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iAXAA5#,AXAH5#,AXAL54¥20,900202310

main85720-12520iAXAA5#,AXAH5#,AXAL54¥20,900202210-202310

main85720-12520iAXAA5#,AXAH5#,AXAL54¥20,900202112-202210

main85720-42130iAXAA5#,AXAH5#,AXAL54¥23,000202008-202111

main85720-42130iAXAA5#,AXAH5#,AXAL54¥23,000201811-202007

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

13 parts on this diagram · 1 diagram in section
