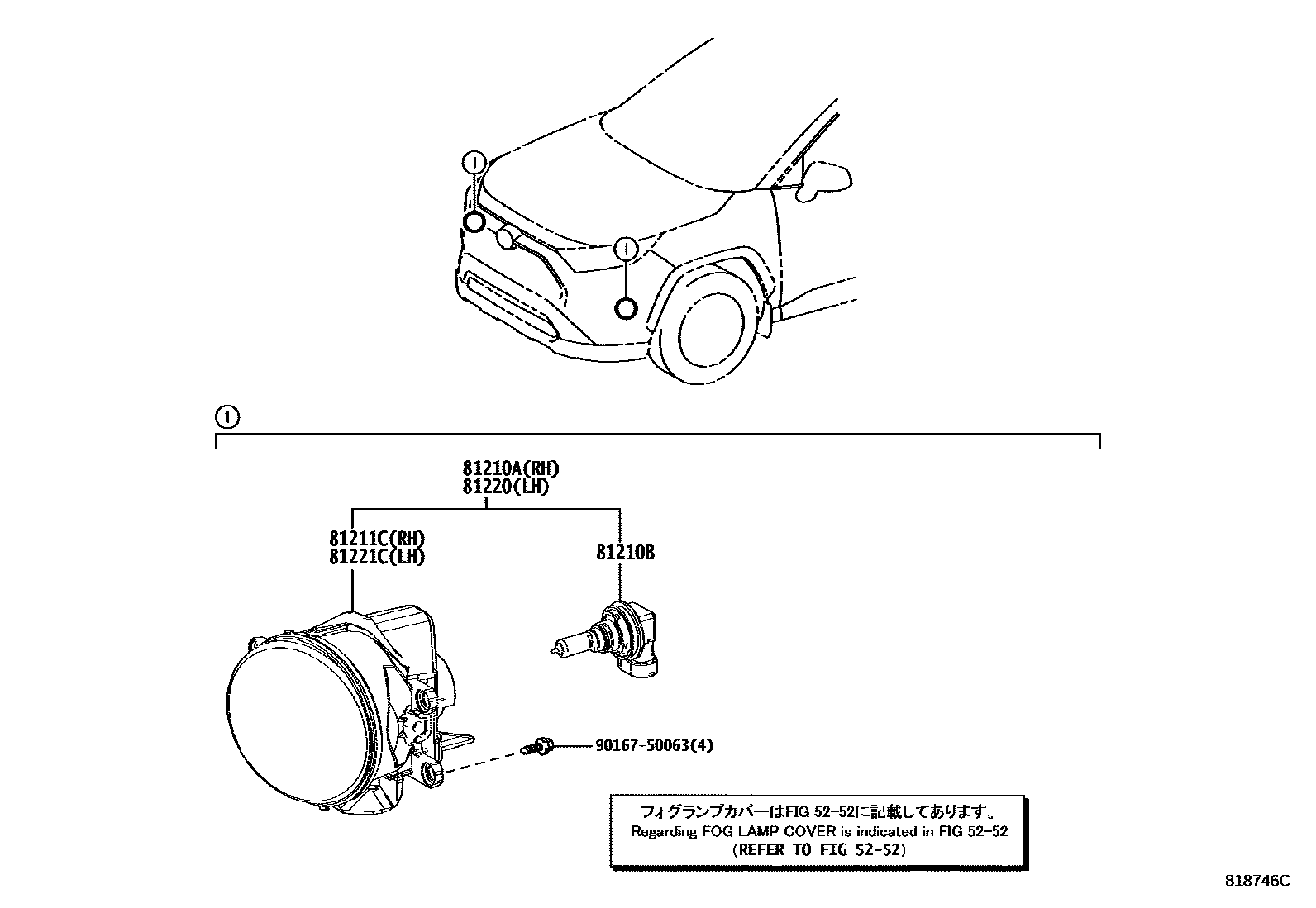

Toyota RAV4 (JPP) — FOG LAMP

0001 1 0002 1 0003 1

5252

81210ALAMP ASSY, FOG, RH

main81210-12240iAXAH54..M¥8,000202310

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

main81210-12240iAXAH54..M¥8,000202310

XLE PACKAGE

main81210-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202112-202210

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main81210-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202112-202210

XLE PACKAGE

main81210-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202210-202310

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

main81210-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202210-202310

XLE PACKAGE

main81210-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥8,900202008-202112

main81210-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥8,900201811-202007

main81210-48051iAXAA54..V¥15,400202210-202310

main81210-48051iAXAA54..V¥15,400202112-202210

main81210-48051iAXAA54..V¥15,400202310

81210BBULB, FOG LAMP

main90981-13090iAXAA5#,AXAH5#,AXAL54..G,M,V¥2,000201811-202007

12V 19W

main90981-13090iAXAA5#,AXAH5#,AXAL54..G,M,V¥2,000202008-202112

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥7,200201811-202007

main81211-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥7,200202008-202112

81220LAMP ASSY, FOG, LH

main81220-12240iAXAH54..M¥8,000202310

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

main81220-12240iAXAH54..M¥8,000202310

XLE PACKAGE

main81220-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202112-202210

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main81220-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202112-202210

XLE PACKAGE

main81220-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202210-202310

KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

main81220-12240iAXAH52;AXAA5#,AXAH54,AXAL54..G¥8,000202210-202310

XLE PACKAGE

main81220-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥8,900201811-202007

main81220-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥8,900202008-202112

main81220-48051iAXAA54..V¥15,400202210-202310

main81220-48051iAXAA54..V¥15,400202112-202210

main81220-48051iAXAA54..V¥15,400202310

81221CLAMP UNIT, FOG LAMP, LH

main81221-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥7,200201811-202007

main81221-47010iAXAA5#,AXAH5#,AXAL54..G,M,V¥7,200202008-202112

9016750063

main90167-50063¥60

7 parts on this diagram · 3 diagrams in section
