Toyota RAV4 (JPP) — ELECTRONIC FUEL INJECTION SYSTEM

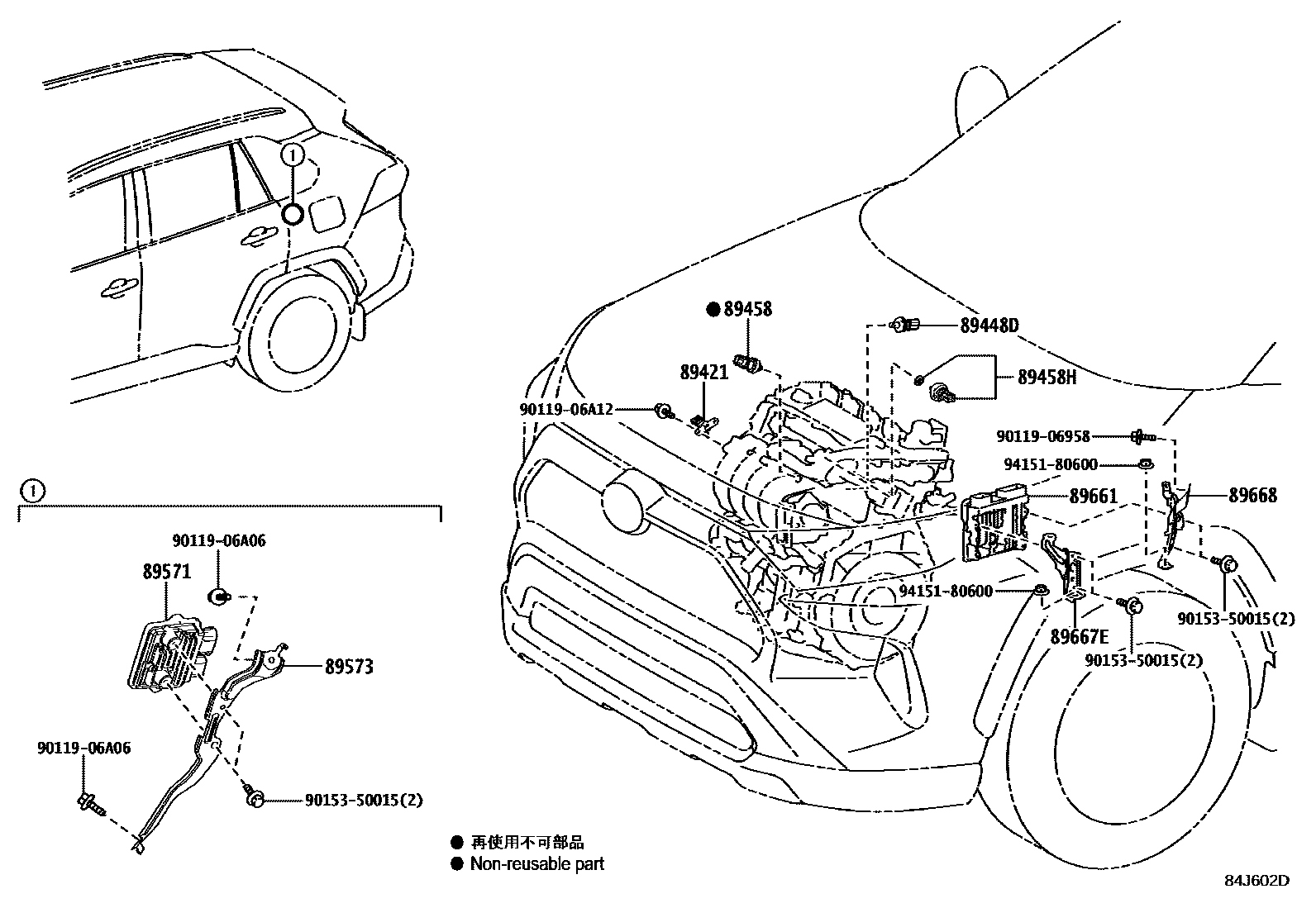

Parts diagram
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-33010i¥5,900201811-202310
89448DSENSOR, OIL PRESSURE & TEMPERATURE
main89448-33010i¥5,700201811-202310
89458SENSOR, FUEL PRESSURE
main89458-33030i¥4,320201811-202310
89458HSENSOR, FUEL PRESSURE, NO.2
main89458-33041i¥4,760201811-202303
main89458-33042i¥4,320202304-202310
89571COMPUTER, FUEL PUMP CONTROL
main89571-42010i¥9,900201811-202310
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-42030i¥910201811-202310
89661COMPUTER, ENGINE CONTROL
main89661-42L60i202411
DENSO
main89661-42L90i201910-201912
DENSO TEN
sub89661-42L91
main89661-42L91i202001-202007
DENSO TEN
main89661-42M00i201910-201912
DENSO TEN
sub89661-42M01
main89661-42M01i202001-202007
DENSO TEN
main89661-42Y80i201905-201910
DENSO
sub89661-42Y81
main89661-42Y90i201906-201910
DENSO
sub89661-42Y91
main89661-42Z00i201906-201910
DENSO,LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
sub89661-42Z01
main89661-42Z00i201906-201910
DENSO
sub89661-42Z01
main89661-42Z10i201906-201910
DENSO
sub89661-42Z11
main89661-42Z20i201906-201910
DENSO
sub89661-42Z21
main89661-42Z70i201811-201906
DENSO
main89661-42Z90i201811-201906
DENSO
main89661-4A280i201811-201910
DENSO
sub89661-4A281
main89661-4A530i201811-201906
DENSO
main89661-4A630i201811-201905
DENSO
main89661-4A680i201811-201906
DENSO
main89661-4A740i202210-202411
DENSO
main89661-4A830i202210-202411
DENSO
main89661-4AA00i201910-201912
DENSO
sub89661-4AA01
main89661-4AA01i202001-202007
DENSO
main89661-4AA10i201910-201912
DENSO
sub89661-4AA11
main89661-4AA11i202001-202007
DENSO
main89661-4AA30i202008-202103
DENSO,P/N LABEL=896614AA30
sub89661-4AA31
main89661-4AA30i202012-202112
DENSO
sub89661-4AA31
main89661-4AA30i202012-202112
DENSO,KOREA SPEC
sub89661-4AA31
main89661-4AA31i202104-202112
DENSO,P/N LABEL=896614AA31
sub89661-4AA32
main89661-4AA40i202008-202103
DENSO,P/N LABEL=896614AA40
sub89661-4AA41
main89661-4AA40i202005-202007
DENSO
sub89661-4AA41
main89661-4AA41i202104-202112
DENSO,P/N LABEL=896614AA41
sub89661-4AA42
main89661-4AA90i202008-202112
DENSO
main89661-4AB00i201910-201912
DENSO
sub89661-4AB01
main89661-4AB01i202001-202007
DENSO
main89661-4AB10i201910-202007
DENSO
sub89661-4AB11
main89661-4AB50i202008-202112
DENSO
main89661-4AB60i202008-202112
DENSO
main89661-4AB70i202008-202112
DENSO
main89661-4AB80i202008-202112
DENSO
main89661-4AF40i202112-202207
DENSO
sub89661-4AF41
main89661-4AF41i202208-202210
DENSO
main89661-4AG30i202112-202207
DENSO
sub89661-4AG31
main89661-4AG31i202208-202210
DENSO
main89661-4AG60i202112-202208
DENSO
sub89661-4AG61
main89661-4AG61i202209-202310
DENSO
main89661-4AG70i202112-202206
DENSO
sub89661-4AG71
main89661-4AG71i202207-202310
DENSO
main89661-4AG80i202112-202207
DENSO
sub89661-4AG81
main89661-4AG81i202208-202310
DENSO
main89661-4AG90i202112-202207
DENSO
sub89661-4AG91
main89661-4AG91i202208-202210
DENSO
main89661-4AJ00i202112-202207
DENSO
sub89661-4AJ01
main89661-4AJ01i202208-202210
DENSO
main89661-4AP50i202210-202310
DENSO
main89661-4AP60i202210-202310
DENSO
main89661-4AR50i202310-202411
DENSO
main89661-4AR60i202310-202411
DENSO
main89661-4AR80i202310-202411
DENSO
main89661-4AV00i202411
DENSO
main89661-4AV10i202411
DENSO
main89661-4AV30i202411
DENSO
main89661-4AV40i202411
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-33190i¥800201811-202310
main89667-42080i¥700201811-202405
main89667-42081i¥650202406
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-42080i¥1,340201811-202310
main89668-42100i¥910201811-202310
9011906958
main90119-06958¥60
9011906A06
main90119-06A06¥60
9011906A12
main90119-06A12¥60
9015350015
main90153-50015¥60
9415180600
main94151-80600¥60

14 parts on this diagram · 2 diagrams in section
