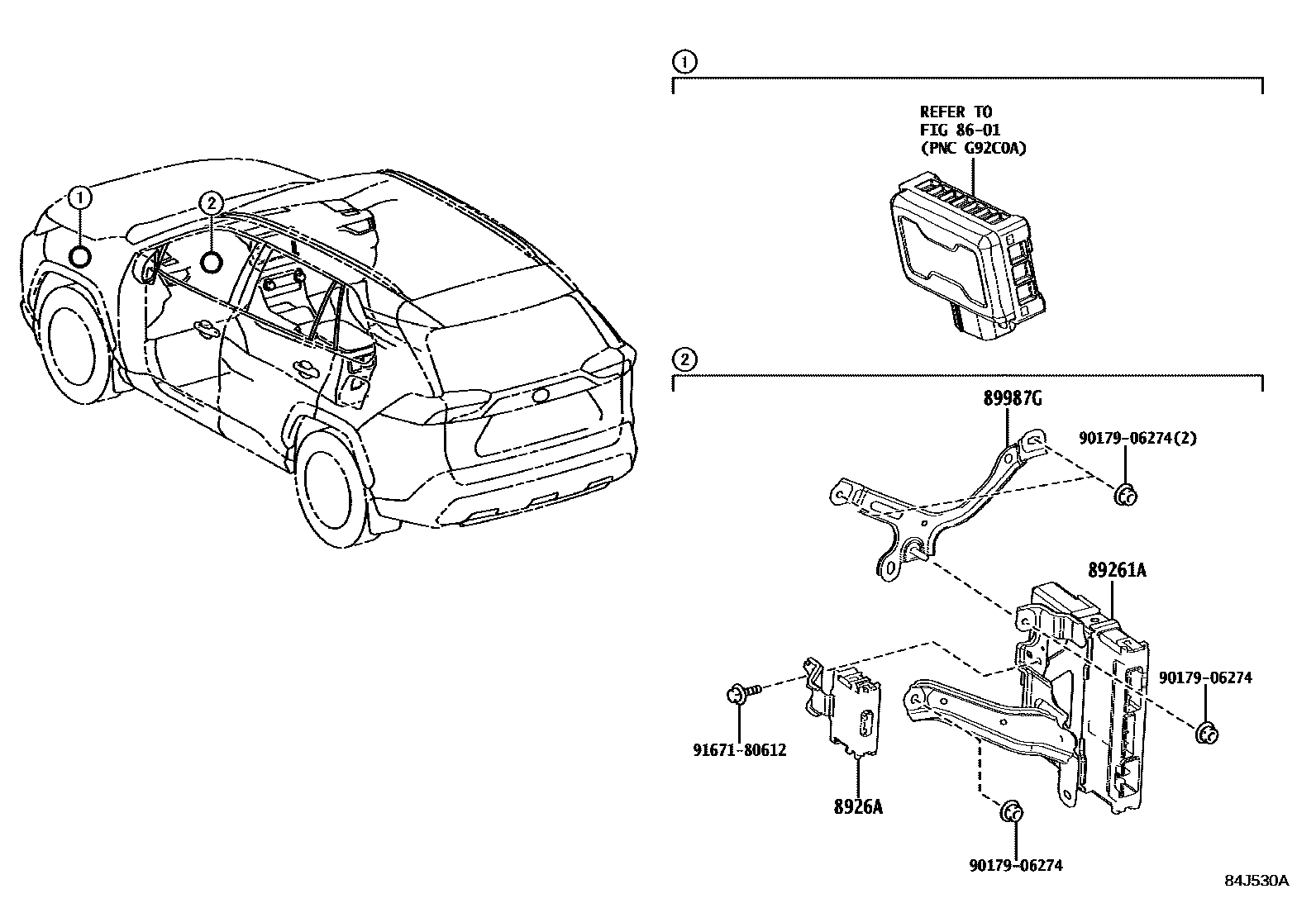

Toyota RAV4 (JPP) — ECO-RUN SYSTEM

8601

89261ACOMPUTER, ENGINE STOP AND START

main89260-42020iAXAA52..M;AXAA54..M,X202112-202210

main89260-42020iAXAA52..M;AXAA54..M,X202210-202310

main89260-42160iAXAA54..X201811-202007

main89260-42160iAXAA5#..M201910-202007

KOREA SPEC

main89260-42160iAXAA52..M;AXAA54..M,X202008-202112

main89260-42260iAXAA52;AXAA54..M,X202310

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-42010iAXAA52..M201910-202007

KOREA SPEC

main8926A-42010iAXAA54..X201811-202007

main8926A-42010iAXAA52..M;AXAA54..M,X202008-202210

main8926A-42010iAXAA52..M;AXAA54..M,X202210-202310

main8926A-42010iAXAA52;AXAA54..M,X202310

89987GBRACKET, COMPUTER, NO.1

main89987-42030iAXAA54..X201811-202007

main89987-42030iAXAA5#..M201910-202007

KOREA SPEC

main89987-42030iAXAA52..M;AXAA54..M,X202008-202210

main89987-42030iAXAA52..M;AXAA54..M,X202210-202310

main89987-42030iAXAA52;AXAA54..M,X202310

9017906274

main90179-06274¥70

9167180612

main91671-80612¥60

6 parts on this diagram · 1 diagram in section
